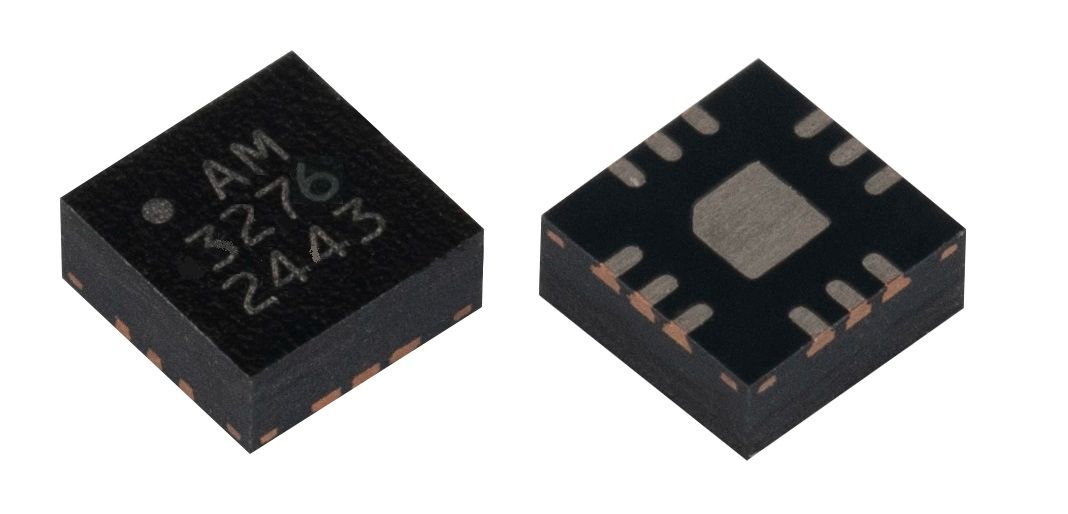

AM3276
12 GHz Lowpass Filter
Function:
Filter
Package:

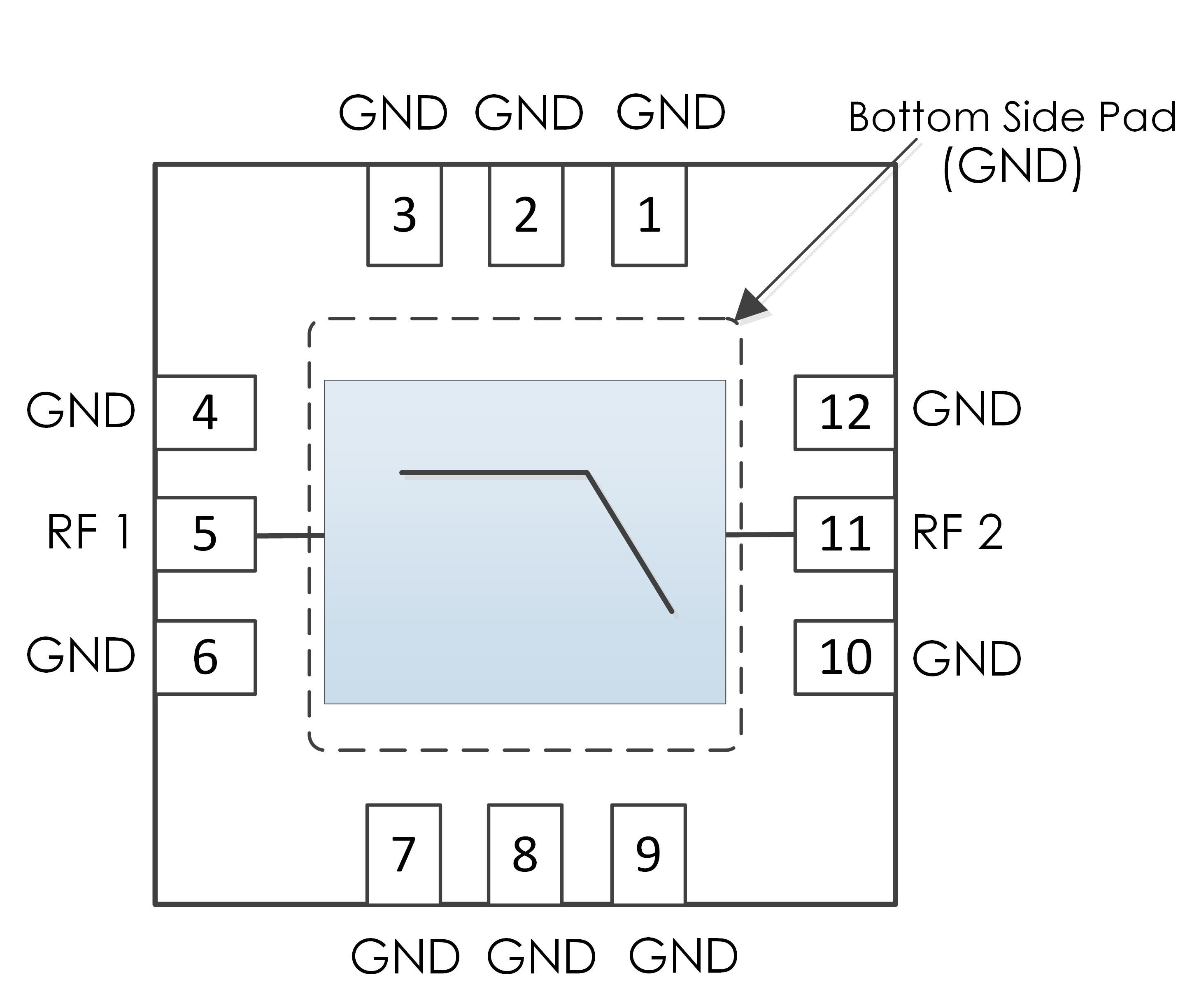

3mm QFN ECCN:
EAR99 AM3276 is a passive lowpass filter implemented on chip that provides low loss and high rejection in a small 3mm QFN package.
With a cutoff frequency of 12 GHz and a sharp rejection skirt, the AM3276 is a useful filter for removing unwanted signals in any RF system, especially those operating in X-band. AM3276 is matched to 50 ohms and operates from -40C to +100C.
Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3276.
1

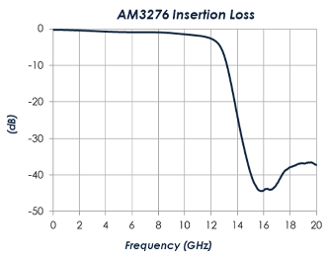

Insertion Loss (dB)
40
Typical Rejection (dB)
3mm
Package
