AM3277
16 GHz Lowpass Filter
Function:
Filter
Package:

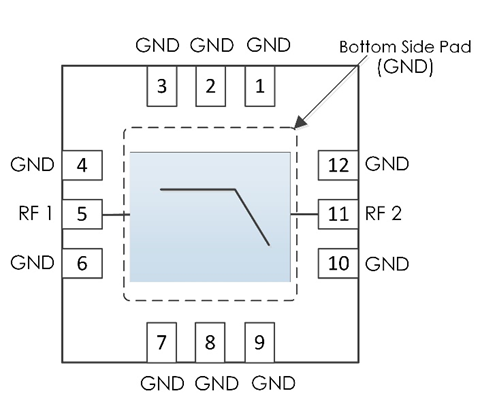

3mm QFN ECCN:

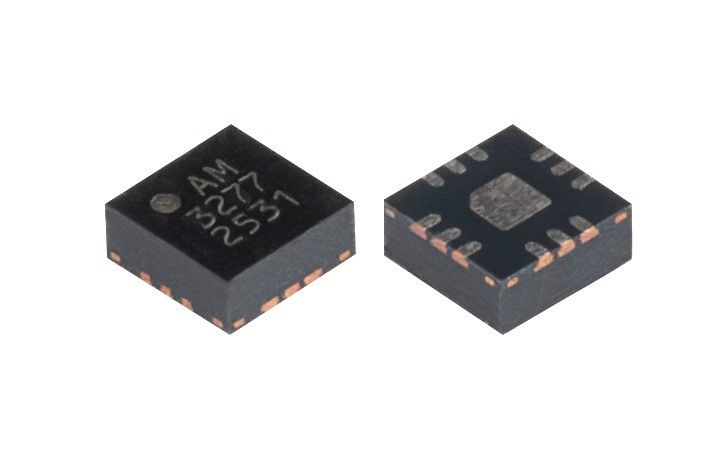

EAR99 AM3277 is a passive lowpass filter implemented on chip that provides low loss and high rejection in a small 3mm QFN package.
With a cutoff frequency of 16 GHz and a sharp rejection skirt, the AM3277 is a useful filter for removing unwanted spurious signals, LO leakage, or image in any RF system. AM3277 is matched to 50 ohms and operates from -40C to +100C.

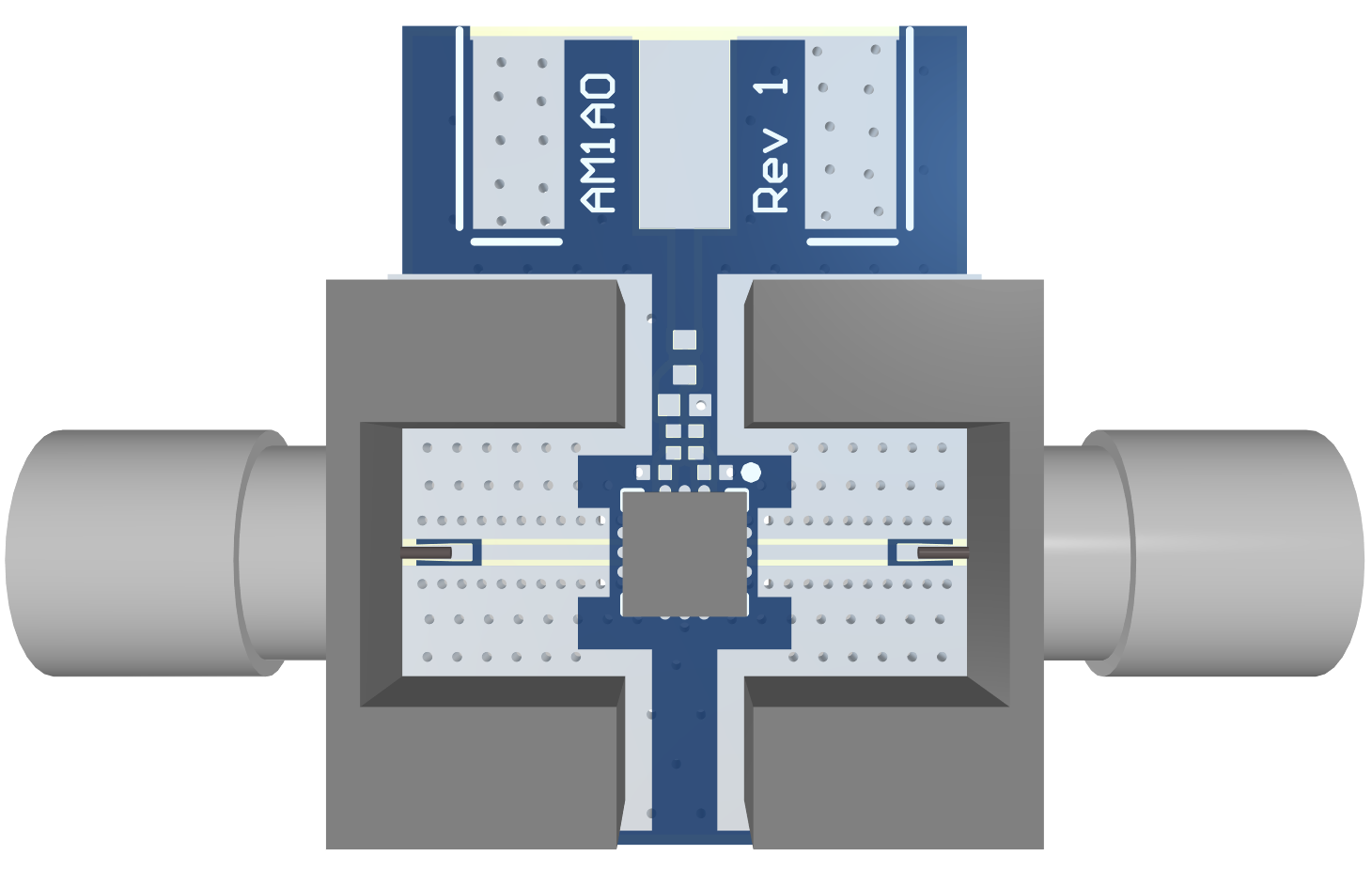

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3277.
1

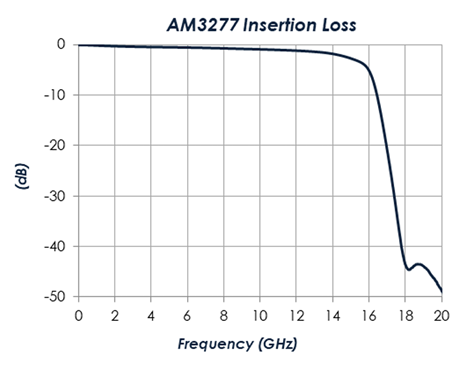

Insertion Loss (dB)
45
Typical Rejection (dB)
3mm
Package
