AM3335
8 GHz to 12 GHz Bandpass Filter
Function:
Filter
Package:
3mm QFN ECCN:

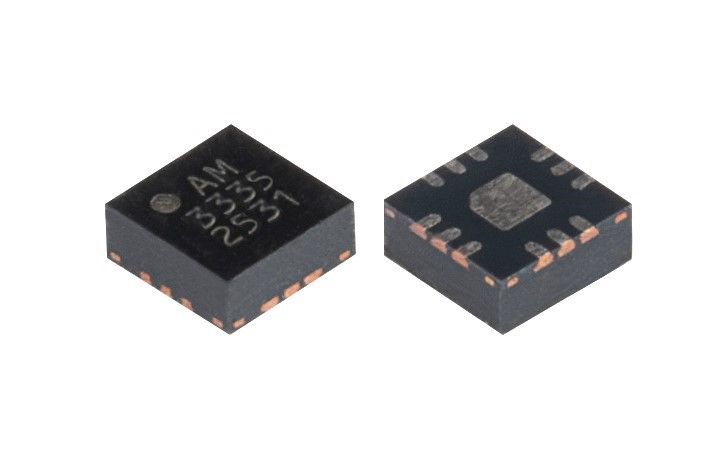

EAR99 AM3335 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3mm QFN package.
With a center frequency of 10 GHz, 4 GHz of bandwidth, and excellent passband flatness, AM3335 is useful for eliminating out of band signals in an X-band RF system. AM3335 is matched to 50 ohms and operates from -40C to +100C.
Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3335.
2.3

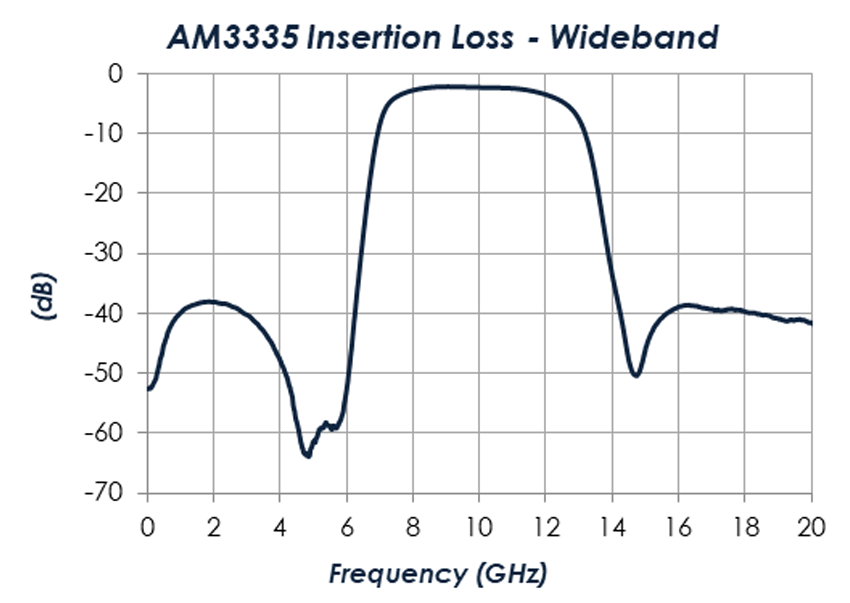

Insertion Loss (dB)
40
Typical Rejection (dB)
3mm
Package
