Switch Matrices

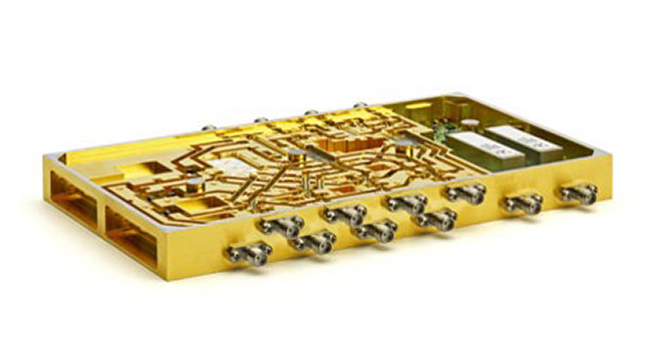

Mercury System’s family of rugged, custom-designed switch matrices are available in rigid PCB construction, module-based packages, or rack-mount solutions. Each switch matrix is a highly integrated, SWaP-optimized assembly consisting of an assortment of switches, filters, amplifiers, attenuators, limiters, and drivers. The result is high speed channel selection, high isolation, high linearity, and low insertion loss.

Capability Highlights

  • From 10MHz to 40GHz
  • Position indicating, BIT circuitry
  • Input/output power detection, switched attenuators
  • On-board PC power conditioning
