Radiation-Tolerant Power Supply

CLICK TO ENLARGE IMAGE

Ultra-compact, drop-in power module for industry-leading FPGA

The RH5210 multi-output power module replaces 11 integrated power supplies and inductors with a die-based solution to minimize SWaP and support on-orbit processing applications. Designed specifically for the high-performing Xilinx XQRKU060 FPGA, the RH5210 power module is ideal for radiation-sensitive applications and platforms such as satellites and launch vehicles.

Accelerate the implementation of the new space economy with a single module solution from a trusted, U.S. manufacturing source.

This advanced power solution uses a single 5V supply to support the integrated power supplies and simplified board layout. Additionally, the RH5210 reduces design time, complexity, power design, and sequencing compared to using discrete components.

PRODUCT BRIEF

BLOG

How to address trust and security when your technology is 1,200 miles away

Making sure your systems are running securely and safely is much easier when they are within arm’s reach. The increase in space programs and missions raises the question: How do you ensure trust and security in your electronics when they are orbiting the Earth, exposed to extreme environmental conditions? Mercury has an answer for that.

READ MORE

Features
  • Built for the Xilinx XQRKU060 FPGA
  • Multiple power supply outputs
  • 8 integrated rad-tolerant switching regulators
  • 3 LDO regulators
  • All supplies eExternally adjustable supplies
  • Minimal external components
  • Internal Ssoft Sstart (fixed)
  • Overcurrent protection
  • Two VCCO user supplies
  • DDR4 DRAM VDDQ, VPP, and VTERM
  • One high-voltage unregulated output for FET gate control
Specifications
  • Radiation Tolerance
    • Space qualified, Mil Perf 38534 class K
  • Size
    • 51 x 63 mm
  • Temperature
    • Operating: -55°C to + 125°C (max allowed Tj is 125°C); Storage: -65°C to + 150°C
  • Supply Sequencing
    • Supports Xilinx XQRKu060 FPGA, option for manual external sequencing
  • Output Noise
    • Meets Xilinx requirements
  • Output Accuracy
    • Meets Xilinx requirements



RELATED PRODUCTS

Space Data Recorders

Space Data Recorders

Ideal for space and radiation-intense environments, our high-density SSDRs use SLC NAND with blazing-fast host interfaces

SEE MORE

RFS1140 RF System-in-Package

RFS1140 RF System-in-Package

High-speed, 64 GSPS sensor processing at the edge

SEE MORE

DDR Products

DDR Products

Compact and rugged BGA memory devices for size, weight and power (SWaP) constrained applications

SEE MORE

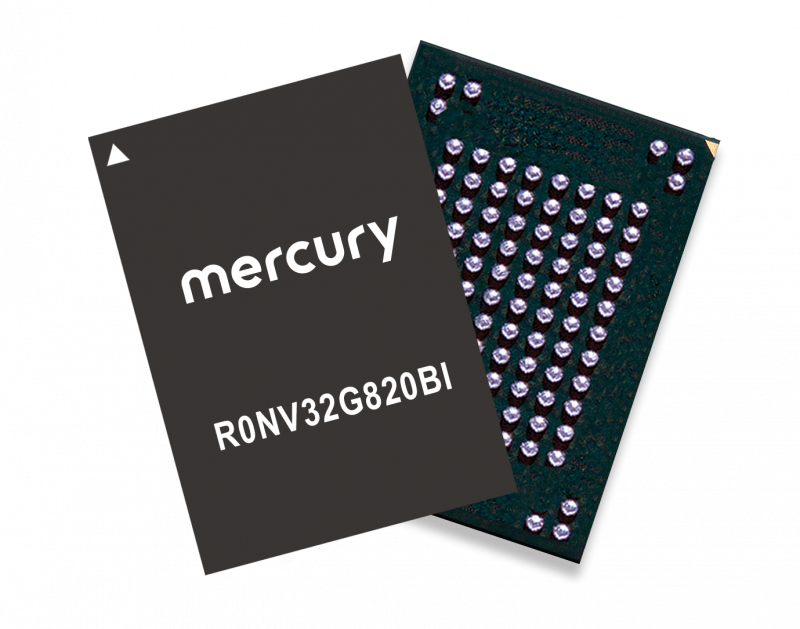

NAND Memory
