Nanopak i7

Intel® 6th generation Core™ i7 processor, up to 32GB DDR4 memory and 1TB FLASH storage

  • slide
  • slide
  • slide
  • slide
  • slide

Engineered for Compact Spaces

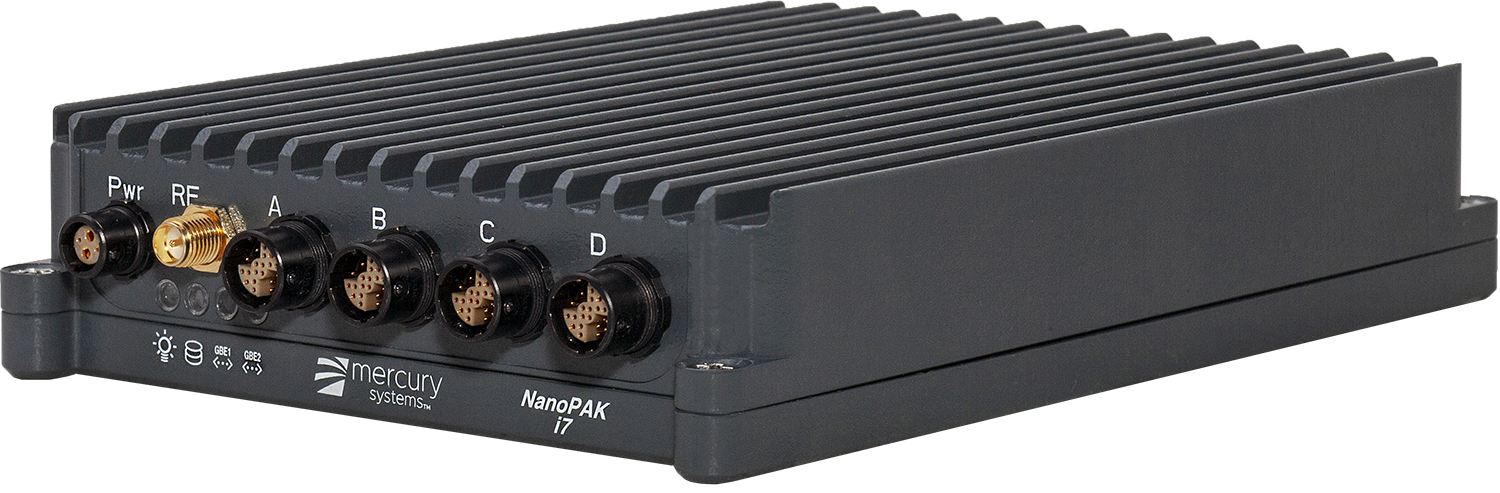

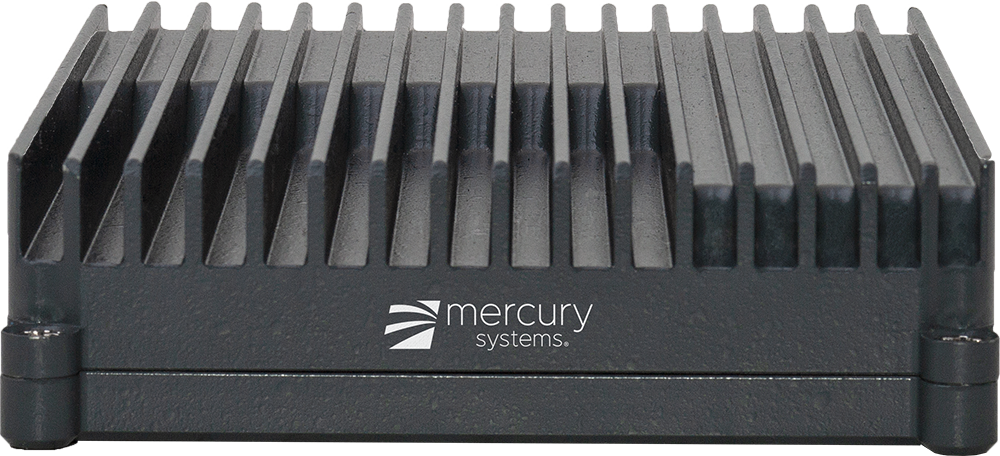

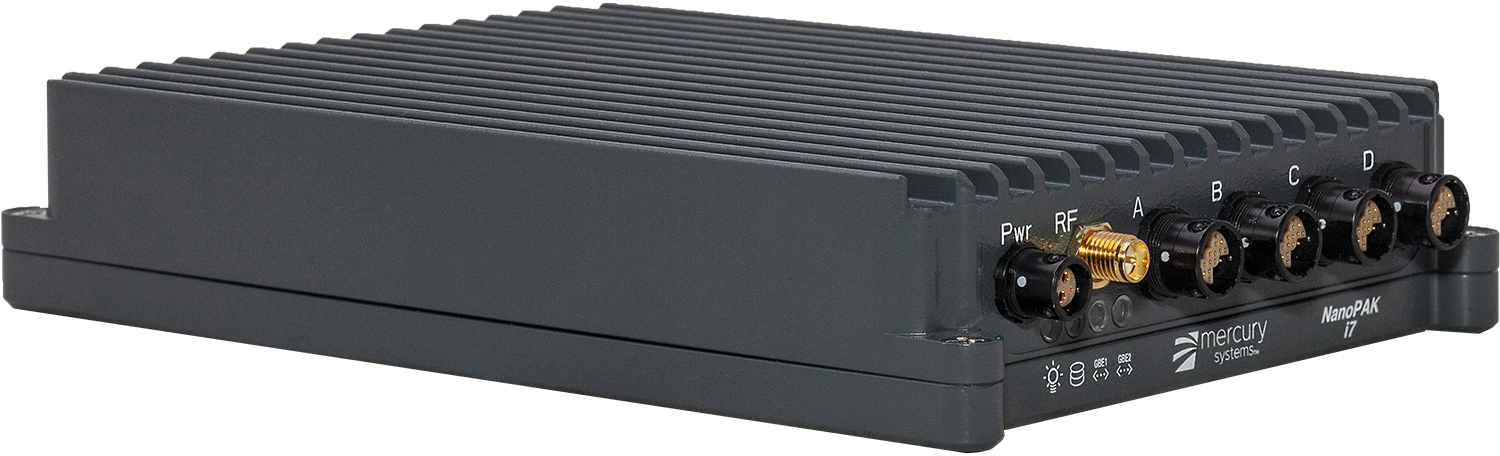

The Nanopak i7 packs an embedded Intel® 6th generation Core™ i7 processor, up to 32GB DDR4 memory and 1TB FLASH storage in a small, lightweight, rugged form factor. Engineered to address the performance and compatibility challenges of unmanned vehicle, ground vehicle, man-wearable and shipboard applications, the Nanopak i7 provides multiple I/O configurations in an environmentally resilient, noiseless chassis.

DOWNLOAD NANOPAK I7 DATASHEET

Configure Your Server

Broad Functionality

The Nanopak i7 supports a myriad of field applications including real time control, data recording, small storage, virtualization and communication systems and mobile robotics. Customizable I/O with multiple networking, storage and interface options including two GbE, Wi-Fi, VGA, USB 3.0, USB 2.0, GPIO, serial, UART or HD audio allow users maximum configuration flexibility.

Highlights

  • Intel® Core i7-6600U, 2.6GHz  (Turbo to 3.4GHz), Dual-Core,
    4 Threads
  • Specialized I/O via optional internal mini PCIe
  • M.2 flash support up to 1TB
  • 9 – 36V DC power
  • Quiet and reliable hardened-aluminum conduction cooled chassis
  • -40° to 50° C operating temperature range
  • IP67 sealed water-resistance
  • MIL-STD-461F (ground mobile)

I/O Customization

  • Two GbE
  • Wi-Fi
  • VGA
  • USB (3.0, 2.0)
  • GPIO
  • Serial
  • UART
  • HD audio
SpecificationsCustomizable I/OEnvironmental & Mechanical
Specifications
  • Intel® Core i7-6600U, 2.6GHz (Turbo to 3.4GHz), Dual-Core, 4 Threads
  • Up to 32GB DDR4-2133 memory, 64-bit

CPU Architecture and Memory

  • CPU clock: 2.6GHz (up to 3.4 GHz in turbo mode)
  • Cache memory: 4 MB, SmartCache
  • Number of cores: 2 cores, 4 threads
  • Instruction set: 64-bit, AVX 2.0, SSE 4.1/2.3
  • CPU power (TDP): 7.5W (TDP-down), 15W (TDP-normal), 25W (TDP-up)

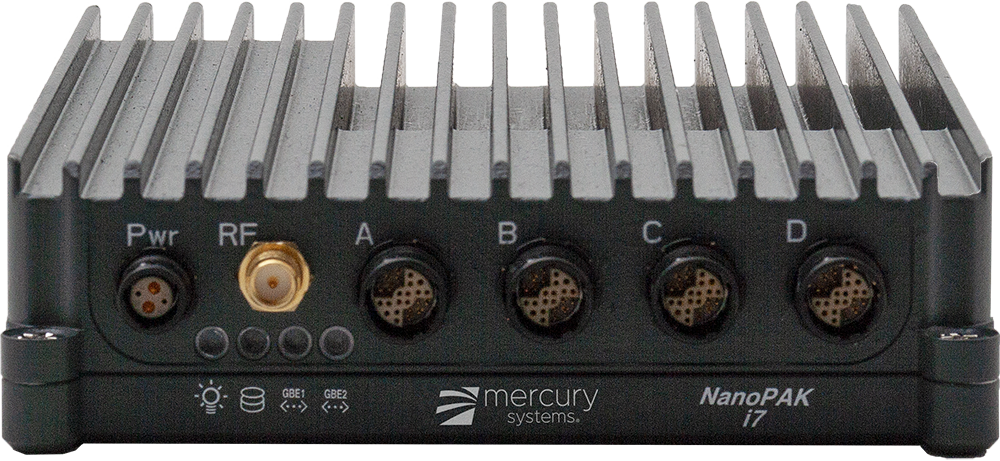

Customizable I/O
  • GPU: Intel® HD graphics
  • VGA: Analog RGB with DDC (up to 1920x1200 @ 60Hz )
  • Ethernet: Dual GbE Ethernet
  • USB: (4) USB 2.0, (2) USB 3.0, additional ports available via mini PCIe®
  • HD Audio: Line In (or MIC) / Line Out
  • GPIO: 4 Lines
  • Serial Port: 2 ports (RS232 with RTS/CTS or RS485)
  • Expansion Slot: Mini PCIe slot
  • Storage: Up to 1TB M.2 SATA
  • TPM 2.0: Yes
  • I/O connectors: Customizable
  • Input voltage: 8 - 36V, optimized for 24V
  • Input power: 20W (45W max)
  • Power source: External, no internal battery
  • Wi-Fi: Via optional M.2 (22x30)
Environmental & Mechanical
  • Cooling method: Conduction-cooled, passive convection cooled

Environmental

  • Operating temperature: -40°C / +50°C**
  • Storage temperature: -40°C / +90°C
  • EMI: CE marking
  • Shock: 50G @ 25ms
  • Vibration (random): 10Hz-2000Hz; 5Grms
  • Humidity: 95%
  • Altitude: 15,000 feet

Mechanical

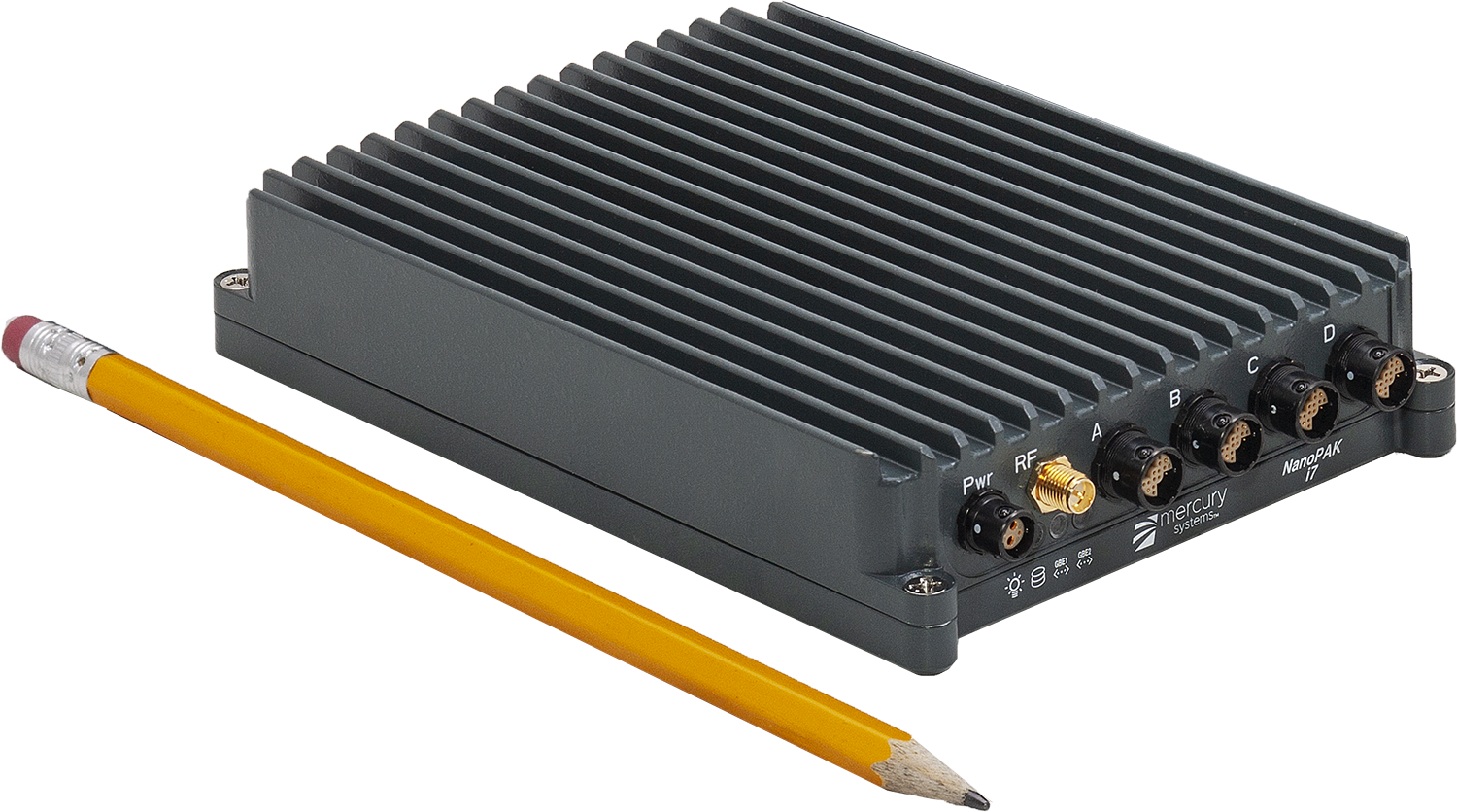

  • Dimensions (W x H x D): 6.8” (174 mm) x1.3”(33 mm) x 4.5” (114 mm)
  • Weight (typical): 1.6 lbs (.725kg)

Markings and MIL Specifications

  • MIL-STD-461F (ground mobile)
  • IP67 sealed
  • CE marking

Footprint Performance

Mercury small form factor tactical systems are designed for portable computing, man-wearable systems, unmanned vehicles (UVs), ground vehicles, helicopter and military robotic platforms. They support a variety of applications including:

  • Mission management
  • Robotics
  • Embedded training
  • Mission planning
  • EW/SIGINT
  • Digital map
  • Sensor processor
  • Payload and sensor processor
  • Data recorder
