AVR8142-XM Digital Video Recorder

CLICK TO ENLARGE IMAGE

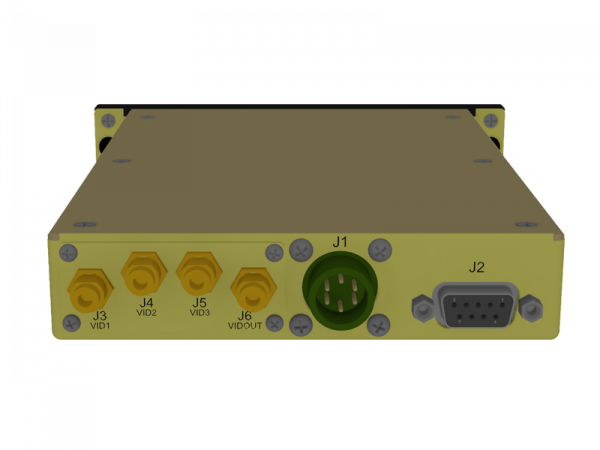

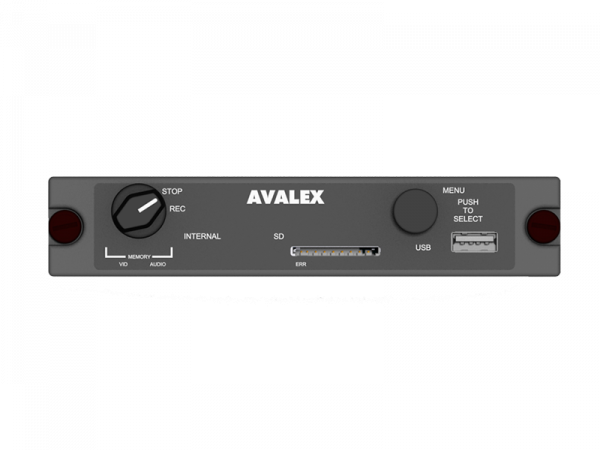

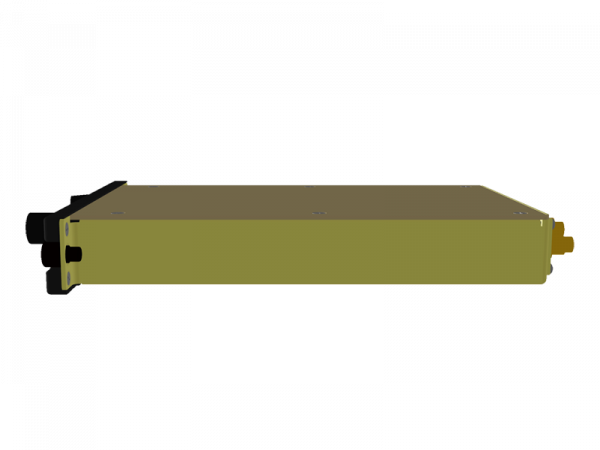

AVR8142-XM Video Recorder

The AVR8142-XM Video Recorder is a small-form-factor, solid-state, rugged digital video recorder that saves standard definition video to USB, SD card, or internal memory. Crisp, clear digital video and audio can be captured with the turn of a knob and then removed immediately for playback.

View Datasheet

Specifications

Model AVR8142-XM

Width (in)

  • 5.75

Height (in)

  • 1.04

Depth (in)

  • 7

Weight (lb)

  • 1.2

Native Resolution

  • NTSC: 720 x 480, PAL: 720 x 576

Audio/Ethernet

  • Stereo Audio

Removable Storage Media

  • SD Card, USB

Internal Storage

  • 16GB

Storage Temperature Range

  • -55˚C to +85°C

Operating Temperature Range

  • -40°C to +71°C

Input Voltage

  • 28 VDC
