AM1160 1.2 GHz to 18GHz Low Noise Amplifier

1.2 GHz to 18GHz Low Noise Amplifier

AM1160 is a wideband, cascadable amplifier that covers 1.2 to 18 GHz. The device pairs low noise figure with exceptional linearity which makes it an ideal choice for many applications with high dynamic range requirements. It also includes a slight positive gain slope to aide in overcoming passive losses. The AM1160 draws less than 450mW of DC power and is packaged in a 3mm QFN.

ASK A QUESTION


1.2 - 18
Frequency (GhZ)
16
Gain (dB)
2.0
NF (dB)
31
OIP3 (dBm)
FeaturesSpecificationsResources
Features
  • 16 dB gain
  • 2.0 dB Noise Figure
  • +31 dBm OIP3
  • +19.5 dBm P1dB
  • +5v Supply

REQUEST A QUOTE

Specifications
  • Function: Low Noise Gain Block
  • Freq. (GHz): 1.2 GHz - 18
  • Gain (dB): 16
  • NF (dB): 2.0
  • OIP3 (dBm): 31
  • Surface Mount: 5.0
  • Supply (+V): 5
  • P1dB (dBm): 19.5
  • Supply (mA): 136
  • Bare Die: No
  • Module: Yes



DOWNLOAD AM1160 DATASHEET

Resources

AM1160 Resources

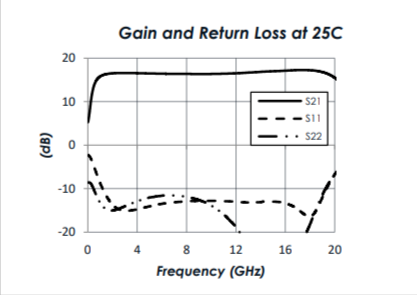

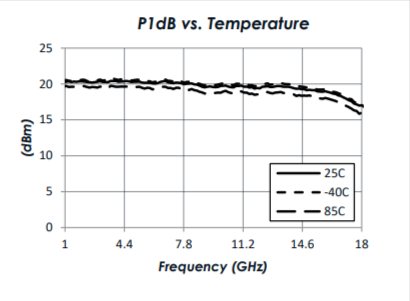

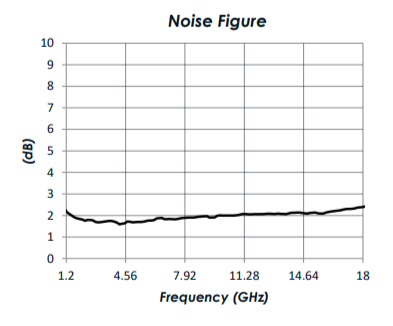

AM1160 P1db vs. TemperatureAM1160 Noise FigureAM1160 Gain and Return Loss at 25C
