AM1173 6 to 18 GHz Driver Amp

6 to 18 GHz Driver Amp

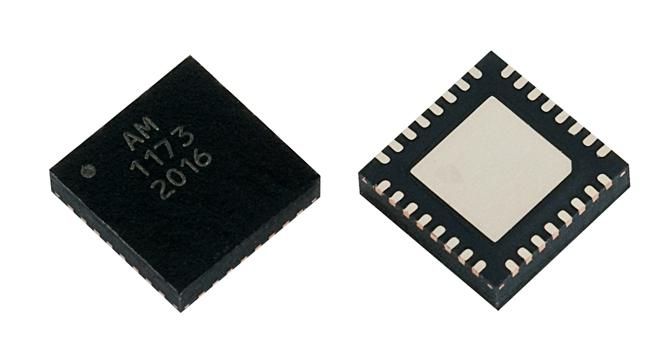

AM1173 is a wideband driver amplifier covering the 6 to 18 GHz frequency range. The device exhibits high gain and high P1dB with excellent power added efficiency above 35% at saturation using a 9V supply rail. The AM1173 is packaged in a 5mm QFN with internal matching and DC blocking capacitors.

ASK A QUESTION


6 - 18
Frequency (GhZ)
12
Gain (dB)
3.9
NF (dB)
38
OIP3 (dBm)
FeaturesSpecificationsResources
Features
  • 12 dB gain
  • 3.9 dB Noise Figure
  • +38 dBm OIP3
  • +29 dBm P1dB
  • +9v Supply

REQUEST A QUOTE

Specifications
  • Function: Driver Amplifier
  • Freq. (GHz): 6 GHz - 18
  • Gain (dB): 12
  • NF (dB): 3.9
  • OIP3 (dBm): 38
  • Surface Mount: 5.0
  • Supply (+V): 9
  • P1dB (dBm): 29
  • Supply (mA): 275
  • Bare Die: No
  • Module: No



DOWNLOAD AM1173 DATASHEET

Resources

AM1173 Resources
