AM1175 6 to 18 GHz Driver Amp

6 to 18 GHz Driver Amp

AM1175 is a wideband driver amplifier covering the 6 to 18 GHz frequency range. The device exhibits high gain and high P1dB with excellent power added efficiency above 32% at saturation using a 5V supply rail. The AM1175 is packaged in a 4mm QFN with internal matching and DC blocking capacitors.

ASK A QUESTION


6 - 18
Frequency (GhZ)
21
Gain (dB)
3.7
NF (dB)
35
OIP3 (dBm)
FeaturesSpecificationsResources
Features
  • 21 dB gain
  • 3.7 dB Noise Figure
  • +35 dBm OIP3
  • +23 dBm P1dB
  • +5v Supply

REQUEST A QUOTE

Specifications
  • Function: Driver Amplifier
  • Freq. (GHz): 6 GHz - 18
  • Gain (dB): 21
  • NF (dB): 3.7
  • OIP3 (dBm): 35
  • Surface Mount: 4mm QFN
  • Supply (+V): 5
  • P1dB (dBm): 23
  • Supply (mA): 5
  • Bare Die: No
  • Module: No



DOWNLOAD AM1175 DATASHEET

Resources

AM1175 Resources

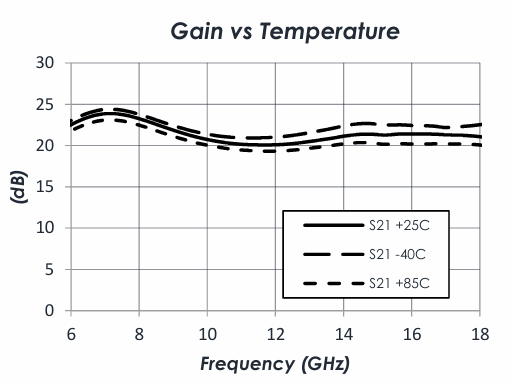

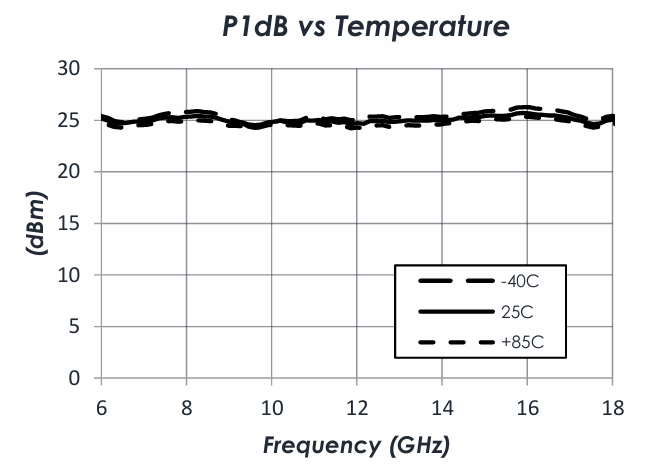

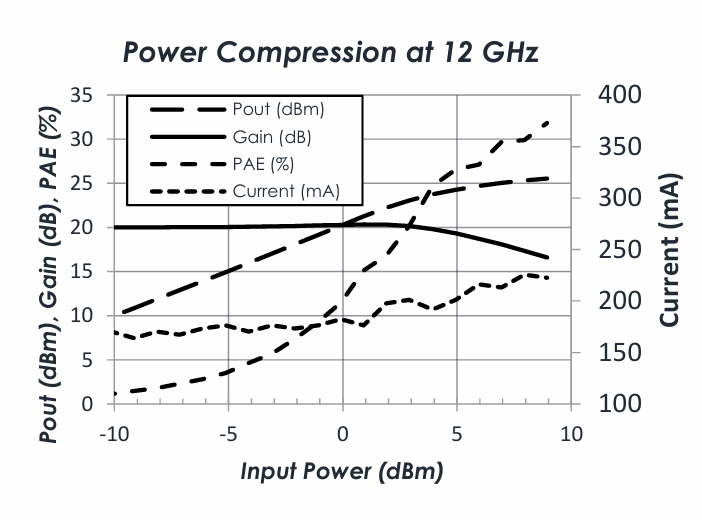

AM1175 Gain vs. TemperatureAM1175 P1dB vs. TemperatureAM1175 Power Compression at 12 GHz
