AVM4108C Multi-Function Display

CLICK TO ENLARGE IMAGE

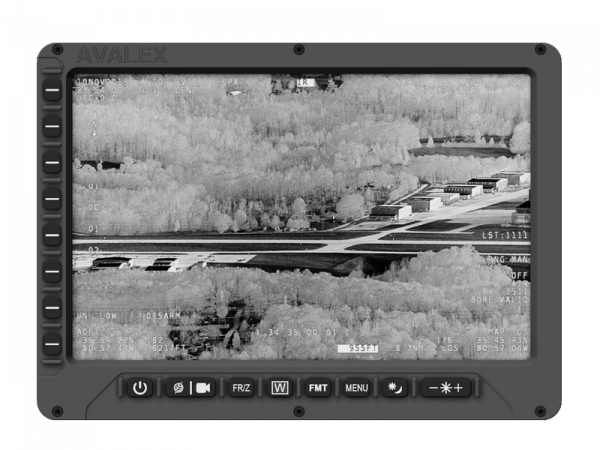

AVM4108C Multi-Function Display

Offering widescreen HD viewing, sunlight-readability and touchscreen responsiveness in a compact package, the AVM4108C is a powerful solution for airborne ISR operators.

This display is compatible with most remote mapping systems, digital video recorders, and other avionics devices. With a rugged, milled aluminum frame that is minimized around the 16:10 aspect ratio screen, it provides maximum display size in a minimal footprint.

The versatile and optimized viewing capabilities of the AVM4108C make it an ideal choice for operators who need HD, SD, and digital-map display capability on a smaller tactical platform.

View Datasheet

Features

The AVM4108C offers four screen modes: full screen, split screen (SS), picture-in-picture (PIP), and picture-by-picture (PBP), also know as side-by-side. Full screen mode displays only one input signal and maintains the aspect ratio of the input source.



Picture-in-picture also displays two inputs simultaneously, one in a large format and one in a smaller window whose position is configurable via the display setup menus.

Split screen displays two input signals simultaneously; these images are positioned next to each other and stretched vertically to fit the screen.



Like split screen, picture-by-picture (or side-by-side) displays two inputs next to each other; these images, however, retain the aspect ratios of their respective video inputs. Excess screen space appears as black bars.



Products formerly Avalex
Specifications

Model AVM4108C

Width (in)

  • 9.84

Height (in)

  • 7.09

Display Area (in)

  • 10.1

Aspect Ratio

  • 16:10

Native Resolution

  • 1280 X 800 (Wxga)

Contrast Ratio

  • 800:1

Refresh Rate

  • 60 Hz

Dimming

  • 28vdc / 5vdc / 5vac

Screen Modes

  • PbP, PiP, SS

Touchscreen

  • RS-232 Interface



Data I/O

  • ARINC 825 (CAN Bus) 1 ports, Discrete 1 in

Video I/O

  • NTSC/PAL (CVBS), RGsB, SDI 2 in / 1 out

NVIS

  • NVIS-B

Configurable Features

  • Customer Bezel Buttons, Heater, Touchscreen

Operating Temperature

  • -40 to +55° C (+71 C for 30 minutes)

Storage Temperature

  • -55˚C to +85˚C

Input Voltage

  • 28 VDC

Heater Glass

  • (Optional)

Qualifications

  • DO-160G
