Digitally Tunable 3.0 GHz to 6.0 GHz Band Pass Filter

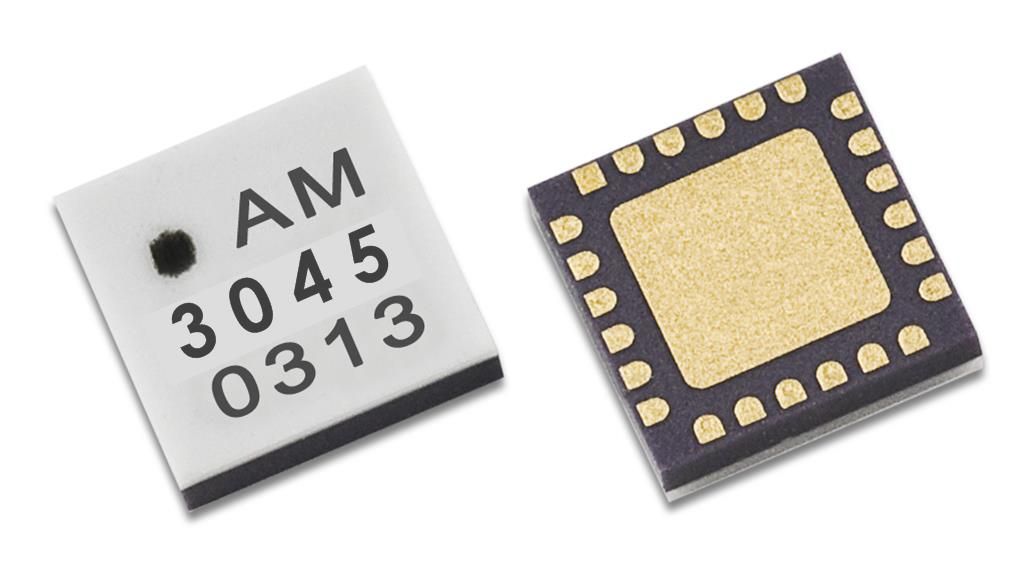

AM3045 is a miniature digitally tunable bandpass filter covering the 3.0 to 6.0 GHz frequency range. The filter provides a constant 1-GHz bandwidth and 500 MHz steps across the frequency range with 4 digital control bits. AM3045 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

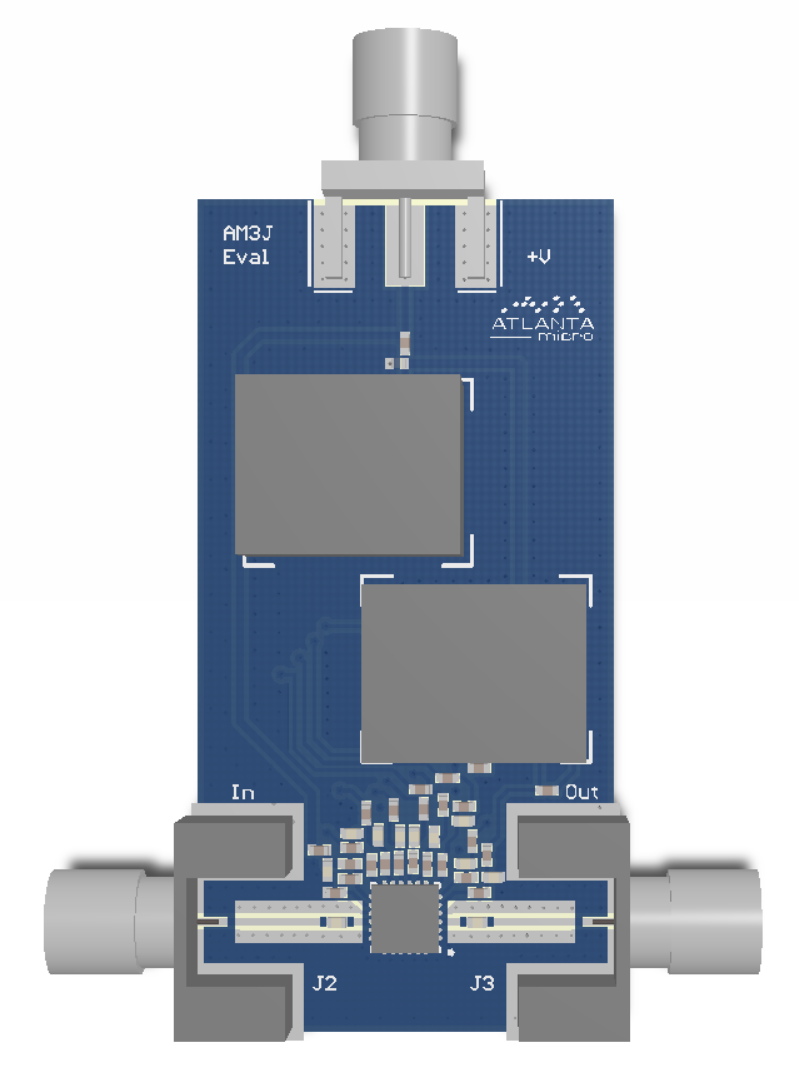

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3045 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3045.
