MMIC Filters

MMIC Filters

Mercury's extensive MMIC filter portfolio includes bandpass, low-pass, high-pass, band-stop, and EMI filters, along with tunable bandpass and notch filters. Our products include digitally tunable filter models and switched sub-octave filter banks in a variety of QFN form factors.

Jump to products

+ Bandpass Filters

FILTERS

CLEAR ALL FILTERS

Part Number Function Cutoff Freq Low (MHz) Cutoff Freq High (MHz) Typical Rejection (dB) Package Bandwidth Low (MHz) Insertion Loss (dB) Center Freq Low (MHz) Center Freq High (MHz) Module Datasheet
AM3043 Digitally Tunable Bandpass 6,500 17,000 35 3 mm QFN - 6     No

View
AM3045 Digitally Tunable Bandpass 3,000 6,000 40 4 mm QFN - 1     No

View
AM3060 Digitally Tunable Bandpass 320 6,500 60 12.5 mm QFN 180 4     Yes

View
AM3060-M Digitally Tunable Bandpass 320 6,500 60 2.1" x 2.1" Module 180 4     Yes

View
AM3065 Digitally Tunable Bandpass 6,000 12,000 40 4x6 mm QFN Adjustable 4     No

View
AM3090 Digitally Tunable Bandpass 100 450 40 4x8 mm QFN Adjustable 3     No

View
AM3098 Digitally Tunable Bandpass 100 1,200 45 4x8 mm QFN Adjustable 3     No

View
AM3102 Digitally Tunable Bandpass 330 1,200 40 4x6 mm QFN Adjustable 2.5     No

View
AM3103 Digitally Tunable Bandpass 1,000 3,000 40 4x6 mm QFN Adjustable 3     Yes

View
AM3104 Digitally Tunable Bandpass 2,500 6,500 40 4x6 mm QFN Adjustable 2.5     Yes

View
AM3152 Digitally Tunable Bandpass 400 8,000 50 6 mm QFN Adjustable 4.5     Yes

View
AM3153 Digitally Tunable Bandpass 6,000 26,500 50 5 mm QFN 2700 10 6,450 24,350 No

View
AM3156 Digitally Tunable Bandpass 400 8,000 50 10 mm QFN Adjustable 4.5     No

View
AM3163 Digitally Tunable Bandpass 2,000 18,000 50 6 mm QFN Adjustable 8     No

View
AM3172-M Digitally Tunable Bandpass 20 8,000 60 2.4" x 2.1" Module Adjustable 5     Yes

View
AM3063 Digitally Tunable Filter Bank 6,000 18,000 40 6 mm QFN Adjustable 4     No

View
AM3064 Digitally Tunable Filter Bank 1,000 6,500 50 6 mm QFN Adjustable 3     No

View
AM3066 Digitally Tunable Filter Bank 12,000 26,500 40 6 mm QFN Adjustable 5     No

View
AM3055 IF Bandpass Filter 1,500 2,500 50 5 mm QFN 1000 2.5     No

View
AM3056 IF Bandpass Filter 750 1,250 50 5 mm QFN 500 2     No

View
AM3187 IF Bandpass Filter 3,250 4,250 50 4 mm QFN 1000 3     No

View
AM3188 IF Bandpass Filter 2,500 3,500 50 4 mm QFN 1000 3     No

View
AM3189 IF Bandpass Filter 9,000 10,000 50 4 mm QFN 1000 4     No

View
AM3215 Preselector Filter Bank 2,000 18,000 50 9 mm QFN 2000 7.5 3,000 17,000 No

View
AM3025A Sub-octave Filter Bank 400 6,000 40 9 mm QFN 230 6     Yes

View
AM3025A-M Sub-octave Filter Bank 400 6,000 40 1.85" x 1.85" Module 230 6     Yes

View
AM3186 Sub-Octave Filter Bank 6,000 26,500 50 5 mm QFN 3000 6 7,200 22,350 No

View
AM3023B Sub-octave Filter Bank w/ Bypass Amp 100 6,000 40 20.5 x 20.5 x 3.30 mm 60 7     Yes

View
AM3023B-M Sub-octave Filter Bank w/ Bypass Amp 100 6,000 40 2.1" x 2.1" Module 60 7     Yes

View
AM3024B Sub-octave Filter Bank w/ Bypass Amp 100 6,000 70 20.5 x 19.0 x 4.0 mm 60 10     No

View
AM3129 Switched Analog Tunable Notch Filter Bank     30 9 mm QFN --- 4 700 6,000 No

View
AM3134 Tunable Filter Bank 2,000 4,500 50 5 mm QFN Adjustable 9     No

View
AM3135 Tunable Filter Bank 3,500 9,000 50 5 mm QFN Adjustable 9     No

View
AM3136 Tunable Filter Bank 8,000 19,000 50 5 mm QFN Adjustable 9     No

View
+ Low-Pass Filters

FILTERS

CLEAR ALL FILTERS

Part Number Function Cutoff Freq Low (MHz) Cutoff Freq High (MHz) Typical Rejection (dB) Package Bandwidth Low (MHz) Insertion Loss (dB) Module Datasheet
AM3046 Lowpass Filter 7,000 7,000 50 4 mm QFN 7000 1 No

View
AM3029 Digitally Tunable Lowpass 1,500 3,000 50 4 mm QFN   1 No

View
AM3030 Digitally Tunable Lowpass 3,500 6,500 45 4 mm QFN   1 No

View
AM3034 Digitally Tunable Lowpass 150 450 40 4 mm QFN   1 No

View
AM3035 Digitally Tunable Lowpass 500 1,200 40 4 mm QFN   1 No

View
AM3039 Digitally Tunable Lowpass 9,000 18,000 50 4 mm QFN   1 No

View
AM3107 Digitally Tunable Lowpass 6,000 12,000 45 4 mm QFN   2 No

View
AM3110 Digitally Tunable Lowpass 18,000 26,500 40 4 mm QFN   2.5 No

View
AM3150 Digitally Tunable Lowpass 30 550 50 5 mm QFN   1.5 Yes

View
+ High-Pass Filters
Part Number Function Cutoff Freq Low (MHz) Cutoff Freq High (MHz) Typical Rejection (dB) Package Insertion Loss (dB) Module Datasheet
AM3151 Digitally Tunable Highpass 20 320 50 6 mm QFN 2 No

View
AM3031 Digitally Tunable Highpass 1,000 1,800 50 4 mm QFN 1 No

View
AM3032 Digitally Tunable Highpass 2,500 4,500 50 4 mm QFN 1 No

View
AM3033 Digitally Tunable Highpass 100 225 50 4 mm QFN 1 No

View
AM3036 Digitally Tunable Highpass 330 700 50 4 mm QFN 1 No

View
AM3041 Digitally Tunable Highpass 6,000 10,000 50 4 mm QFN 1 No

View
AM3108 Digitally Tunable Highpass 12,000 18,000 50 4 mm QFN 5 No

View
AM3109 Digitally Tunable Highpass 18,000 26,500 40 4 mm QFN 7 No

View

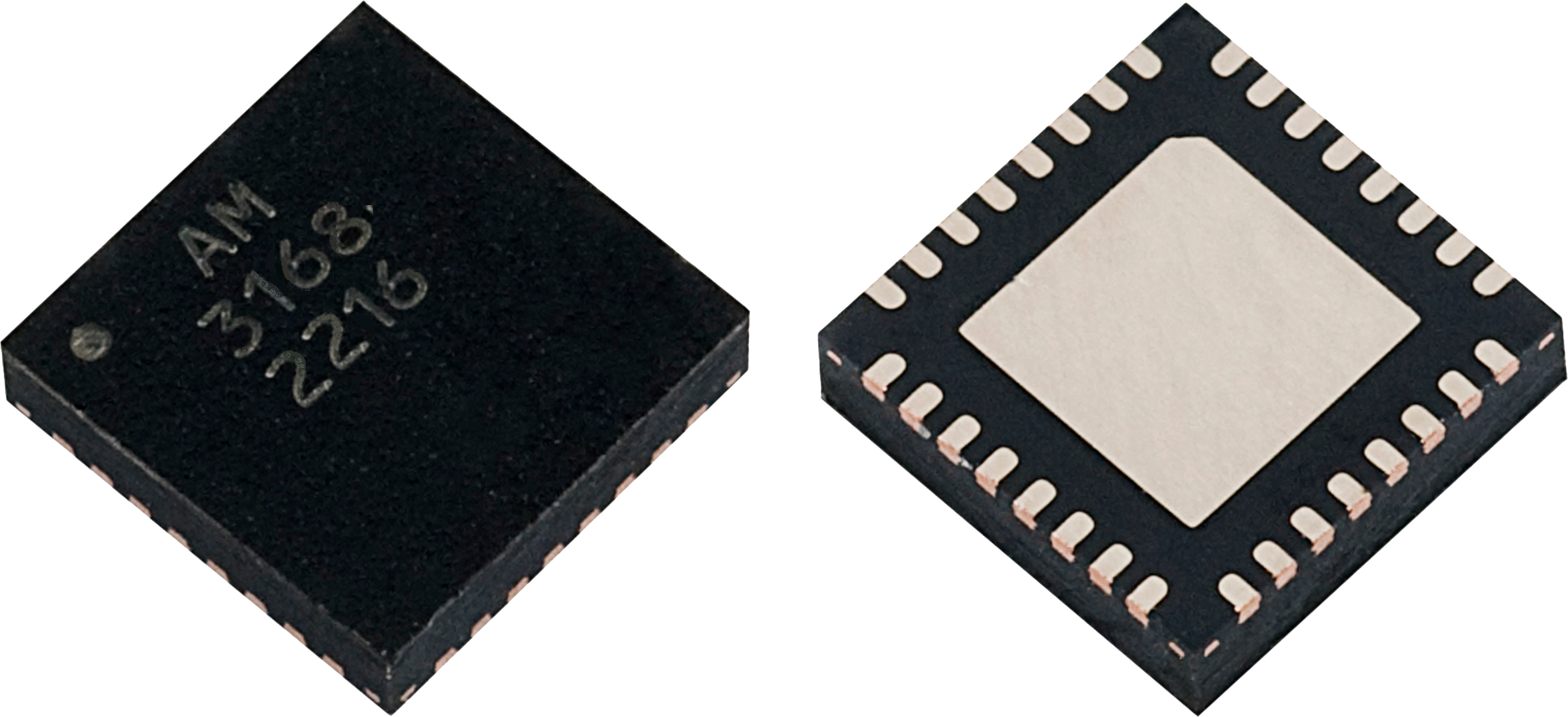

+ Band-Stop Filters

FILTERS

CLEAR ALL FILTERS

Part Number Function Cutoff Freq Low (MHz) Cutoff Freq High (MHz) Typical Rejection (dB) Package Bandwidth Low (MHz) Insertion Loss (dB) Center Freq Low (MHz) Center Freq High (MHz) Module Datasheet
AM3137 Analog Tunable Notch Filter Bank     30 4 mm QFN --- 2 700 2,000 No

View
AM3138 Analog Tunable Notch Filter Bank     35 4 mm QFN --- 2.3 1,300 3,250 No

View
AM3139 Analog Tunable Notch Filter Bank     40 4 mm QFN --- 2.3 2,500 6,000 No

View
AM3170 Analog Tunable Notch Filter Bank     40 10 mm --- 5 6,000 18,000 No

View
AM3089 Analog Tunable Switched Filter Bank 2,000 18,000 40 10 mm QFN Adjustable 8     No

View
+ EMI Filters
Part Number Cutoff Freq Low (MHz) Typical Rejection (dB) Package Bandwidth Low (MHz) Module Datasheet
AM35 300 50 1.5 mm x 3 mm DFN 40000 No

View
