AM3187
3.25 GHz to 4.25 GHz Bandpass Filter
Function:
Filter
Package:
4mm QFN ECCN:

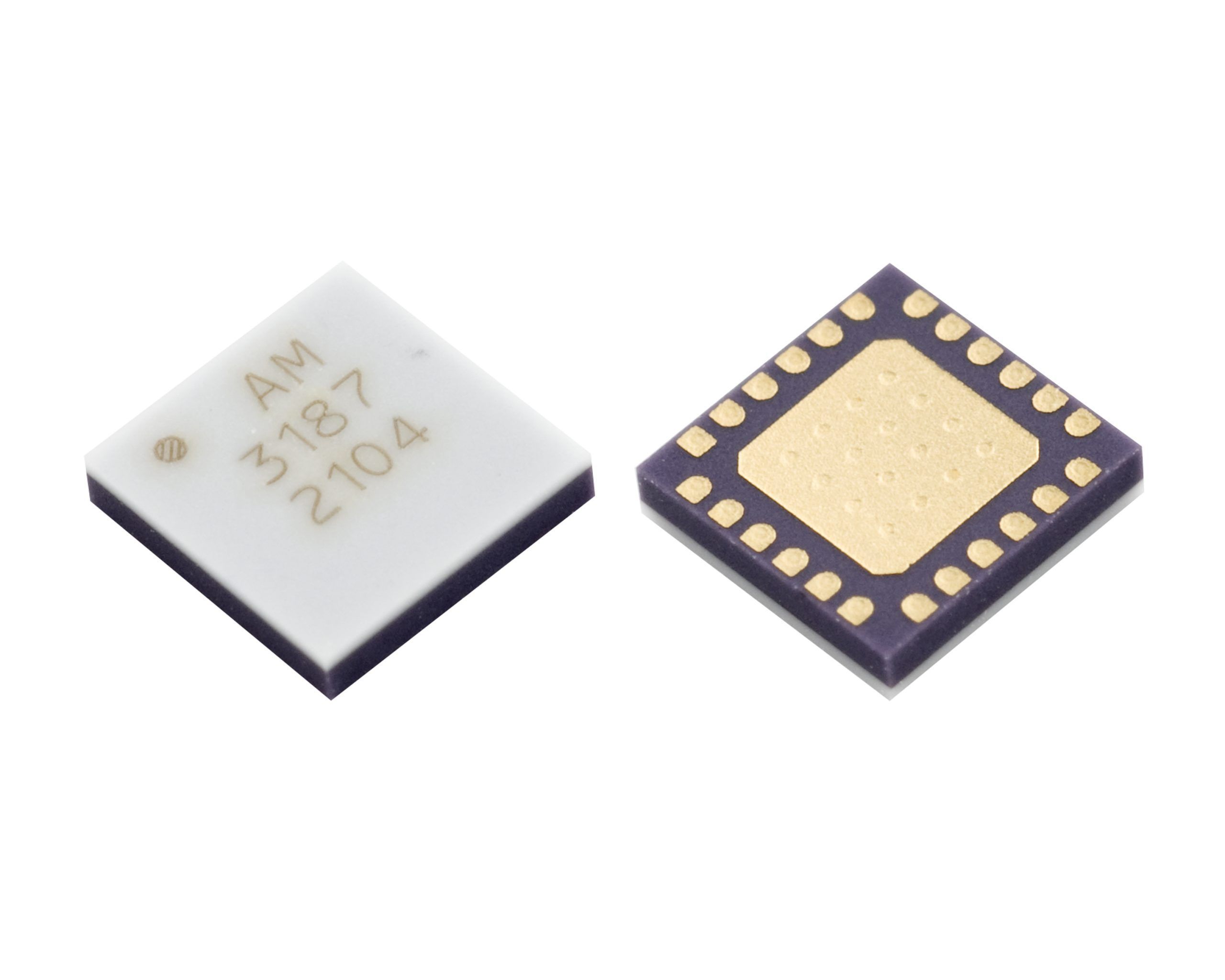

EAR99 The AM3187 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4mm package
With a center frequency of 3.75 GHz and a bandwidth of 1 GHz, AM3187 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3187 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

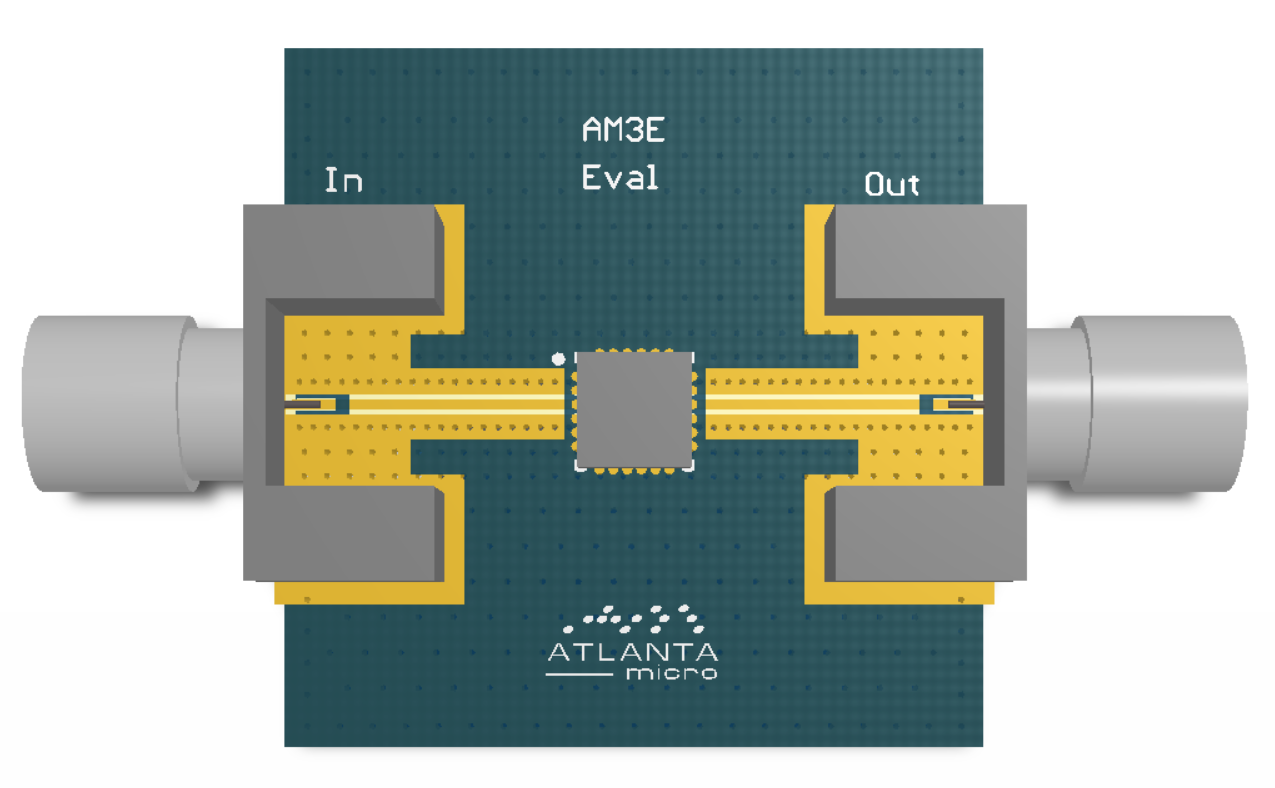

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3187.
3

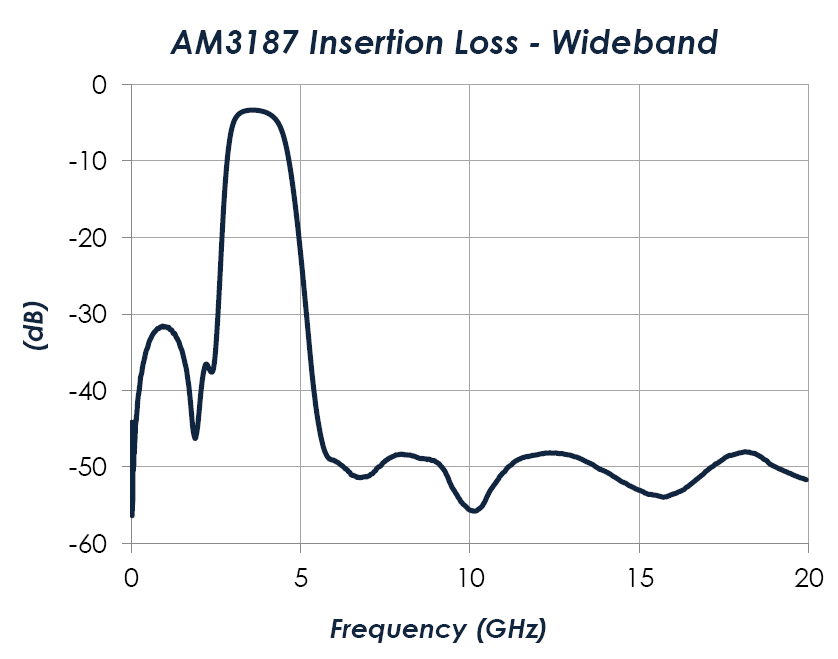

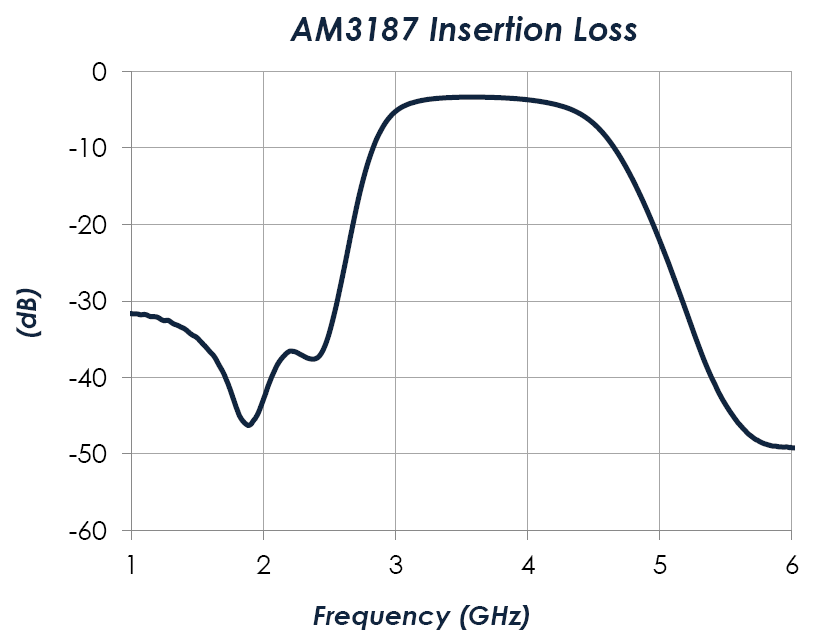

Insertion Loss (dB)
50
Typical Rejection (dB)
4mm
Package
