AM3034 Digitally Tunable 150 MHz to 450 MHz Low Pass MMIC Filter

Digitally Tunable 150 MHz to 450 MHz Low Pass Filter

AM3034 is a miniature digitally tunable lowpass filter covering the 150 to 450 MHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Mercury’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3034 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

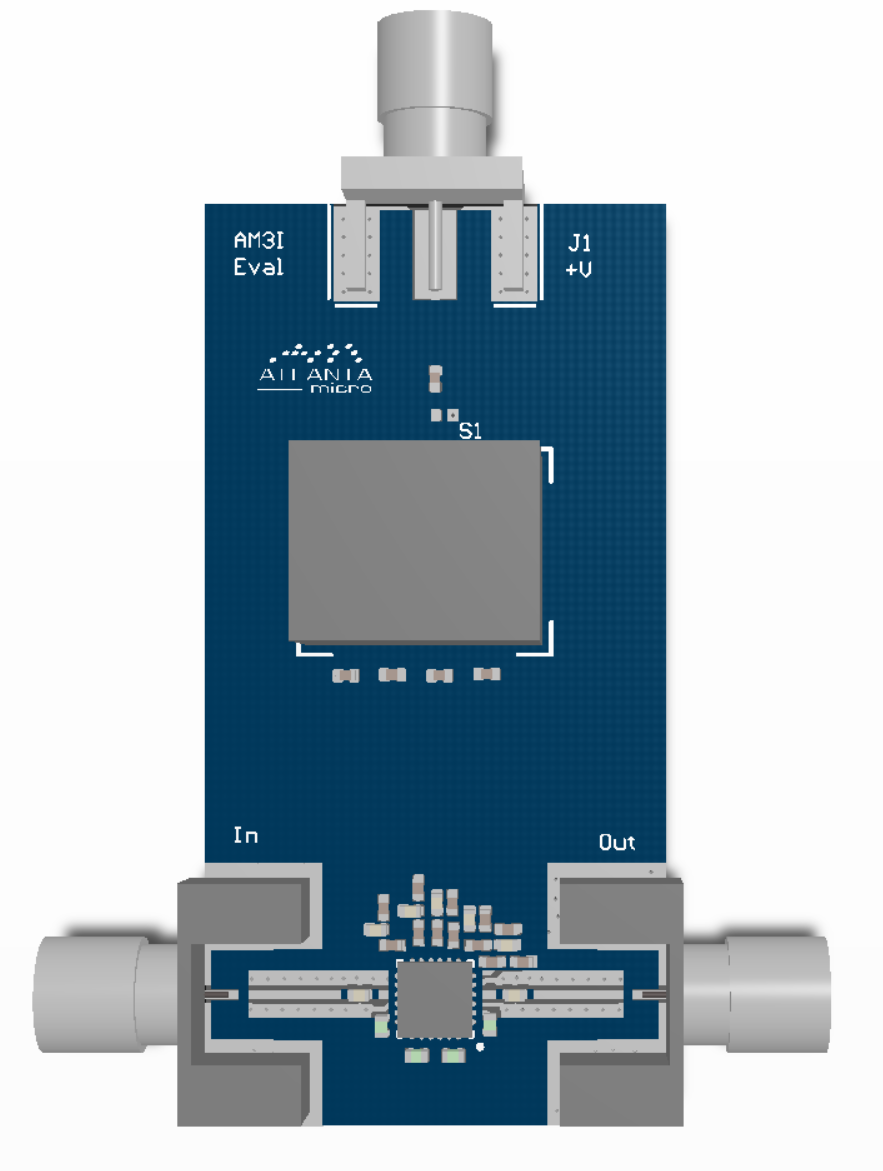

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3034 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3034.

ASK A QUESTION


1
Insertion Loss (dB)
40
Typical Rejection (dB)
4mm
Package
Features
  • Function: Digitally Tunable Lowpass
  • Cutoff Freq Low (MHz): 150
  • Cutoff Freq High (MHz): 450
  • Insertion Loss (dB): 1
  • Typical Rejection (dB): 40
  • Package: 4mm QFN
Specifications
  • Function: Digitally Tunable Lowpass
  • Cutoff Freq Low (MHz): 150
  • Cutoff Freq High (MHz): 450
  • Insertion Loss (dB): 1
  • Typical Rejection (dB): 40
  • Package: 4mm QFN
