AM3152 Digitally Tunable 400 MHz to 8 GHz Bandpass MMIC Filter

Digitally Tunable 400 MHz to 8 GHz Bandpass

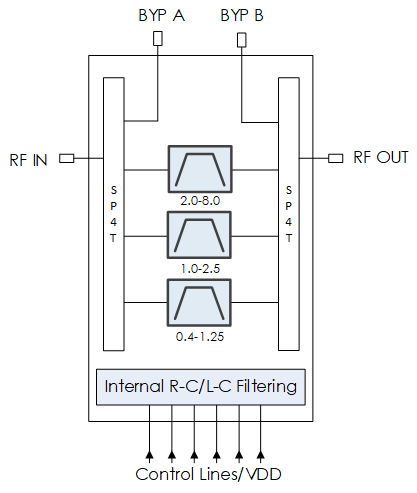

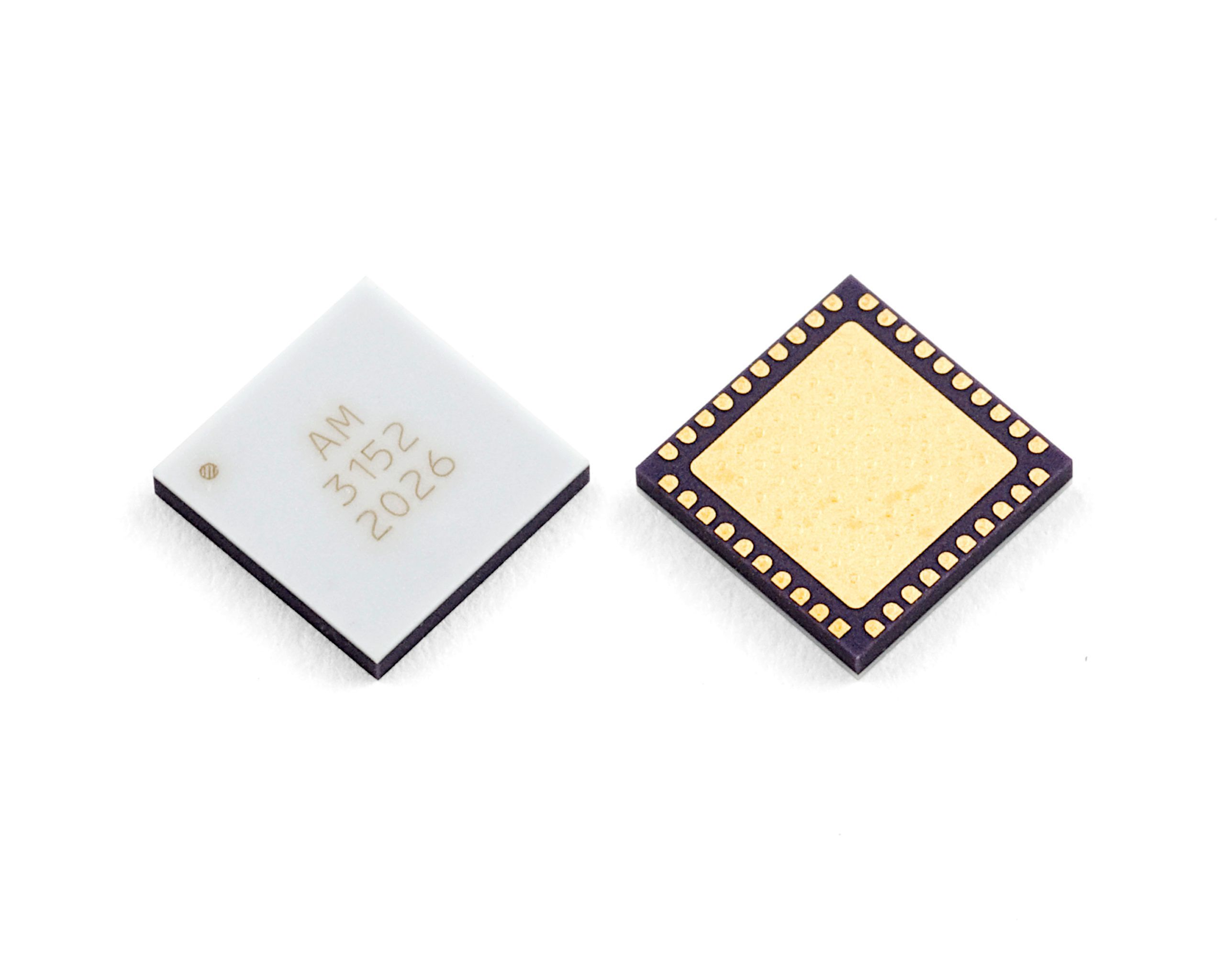

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

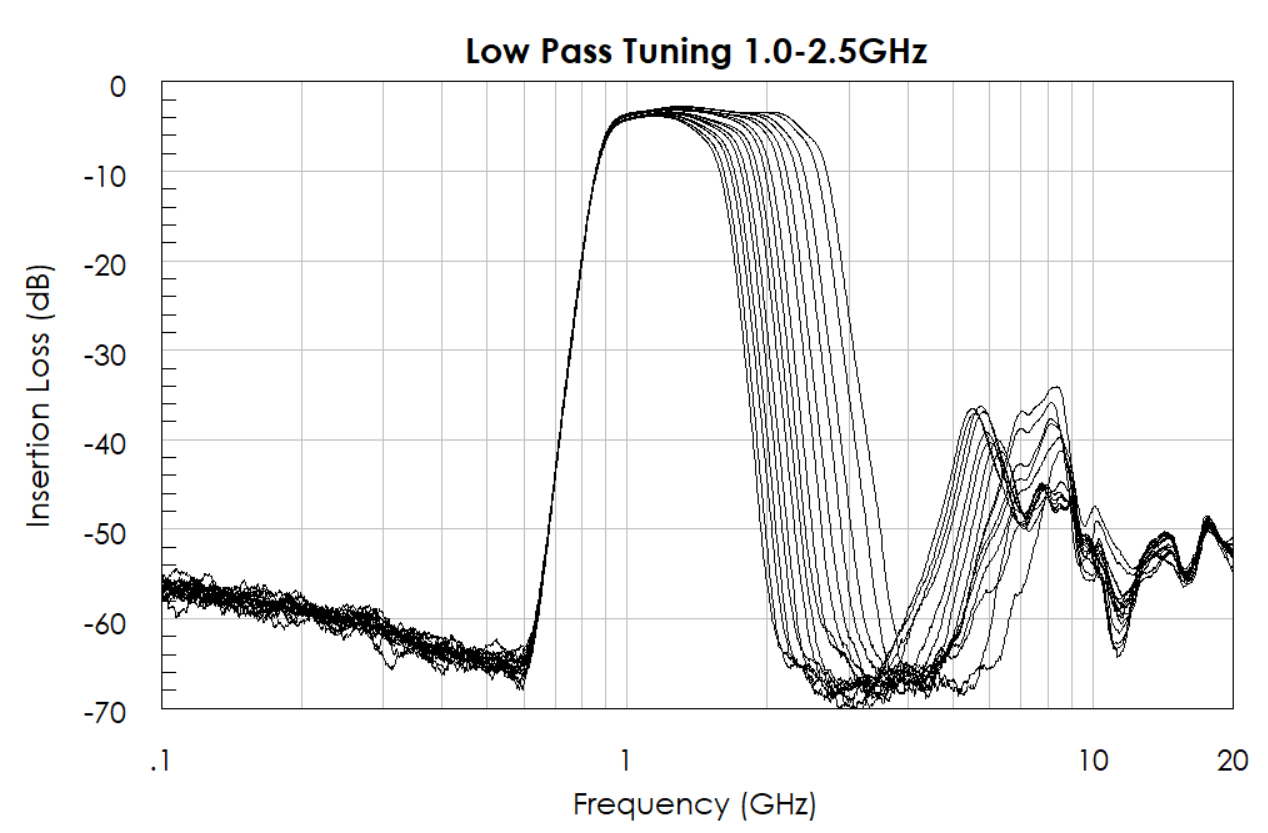

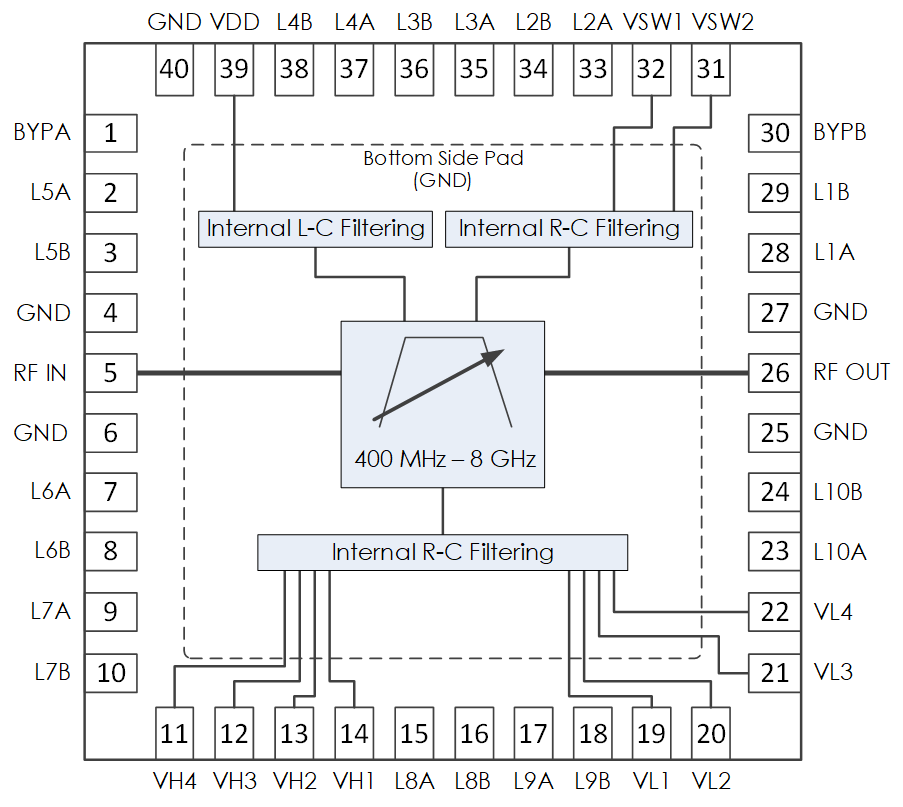

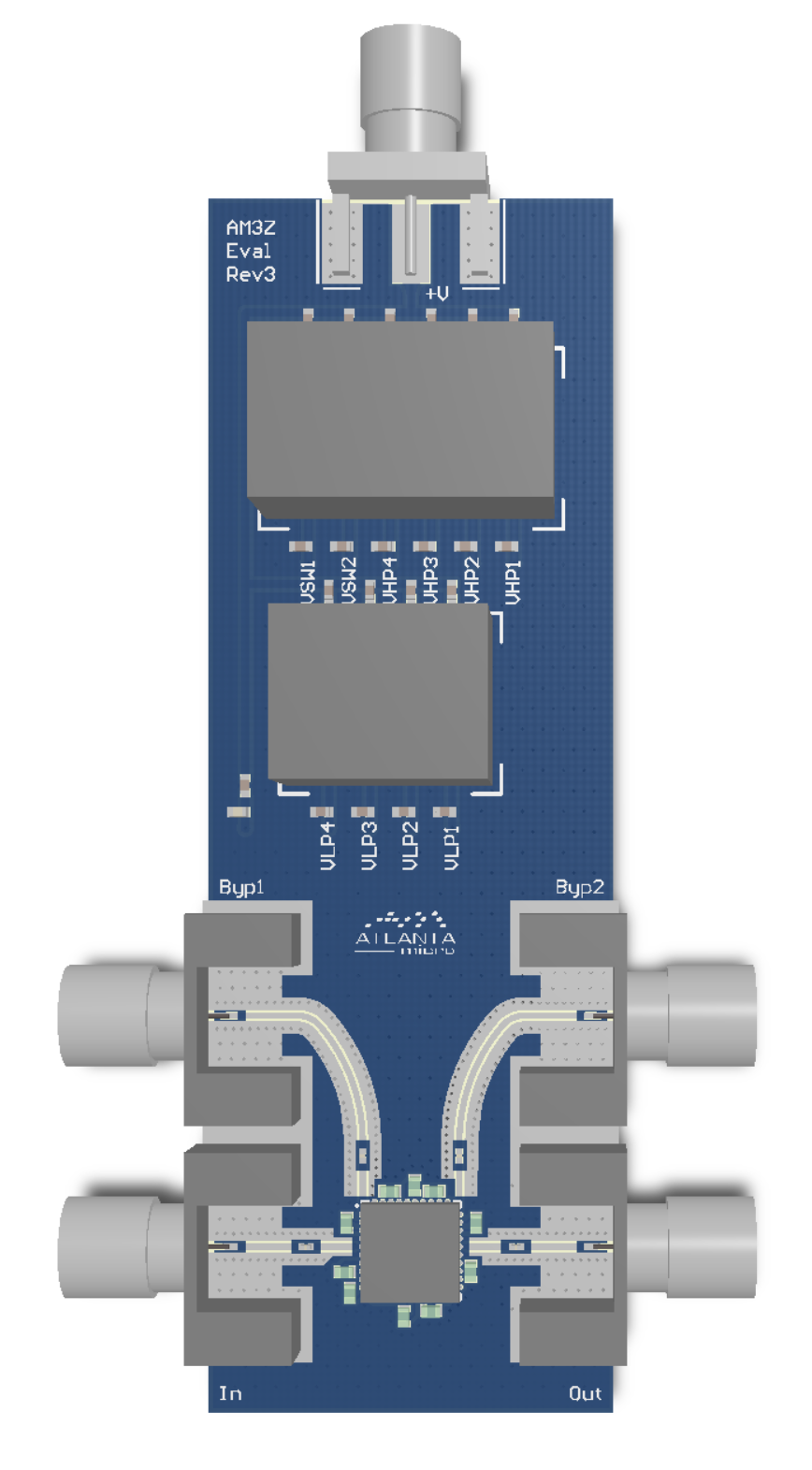

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3152 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3152.

We offer a fully integrated leadless chip carrier option including AM3152, all necessary inductors, and DC blocking capacitors in a 10mm QFN package. For more information, visit the AM3156 product page.

ASK A QUESTION


4.5
Insertion Loss (dB)
50
Typical Rejection (dB)
6mm
Package
Features
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 400
  • Cutoff Freq High (MHz): 8000
  • Insertion Loss (dB): 4.5
  • Typical Rejection (dB): 50
  • Package: 6mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Center Frequency: Tunable
  • # in Pack: 3 + Bypass
Specifications
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 400
  • Cutoff Freq High (MHz): 8000
  • Insertion Loss (dB): 4.5
  • Typical Rejection (dB): 50
  • Package: 6mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Center Frequency: Tunable
  • # in Pack: 3 + Bypass
Products formerly Atlanta Microwave
