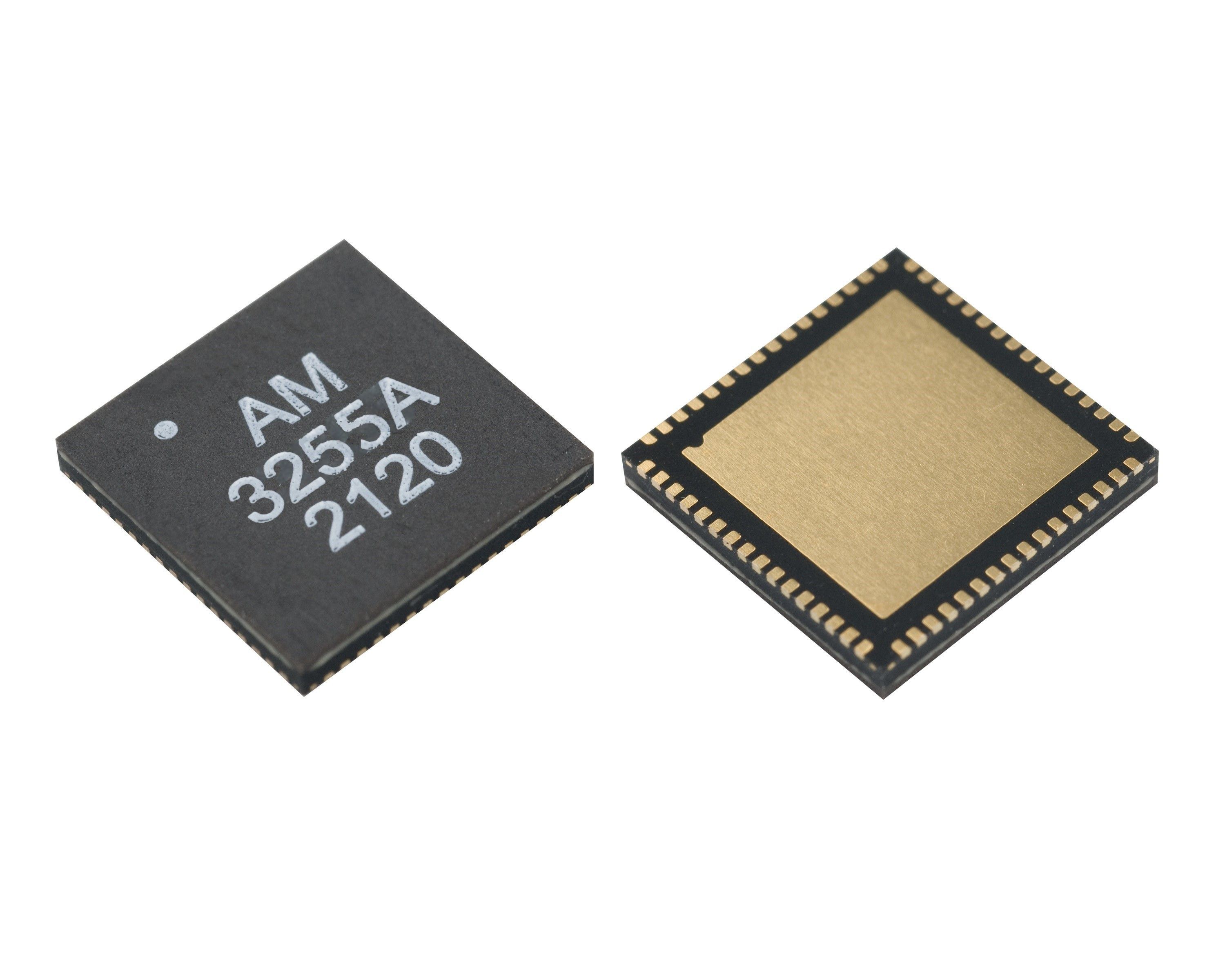

AM3255A
10 GHz to 20 GHz Bandpass Filter Bank
Function:
BPF Bank
Package:
9mm QFN ECCN:

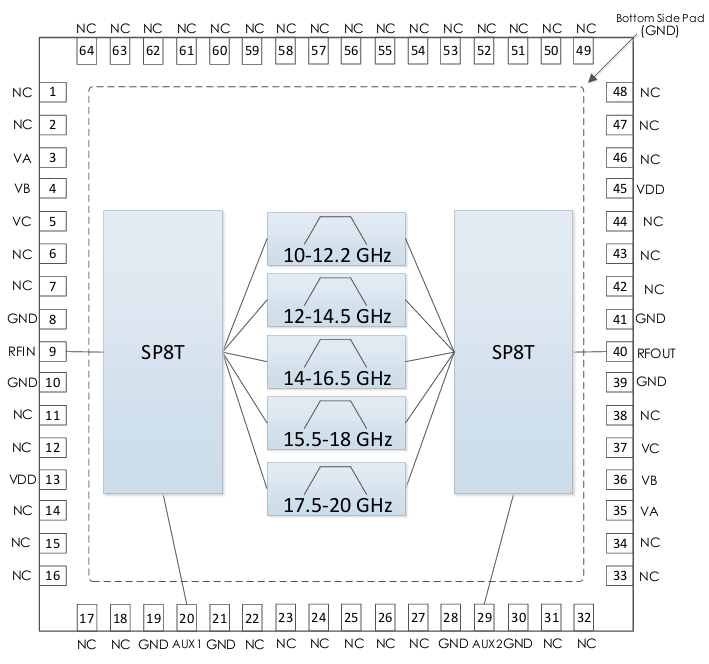

3A001.b.5.a The AM3255A is a bandpass filter bank covering 10 GHz to 20 GHz in 5 bands of at least 2 GHz bandwidth each.
The device provides ports for a filter bypass path and supports both transmit and receive applications. Due to it’s narrow bandwidth and sharp cutoff, the AM3255A is an ideal choice for reconfigurable LO filtering or a front-end/back-end for a broadband receiver, transmitter, or transceiver.
Evaluation board includes SMA input and output connectgors and SMA voltage input unless otherwise requested. AM3255A evaluation board also includes a DIP switch for control of the filter band settings. Evaluation board includes AM3255A.
8

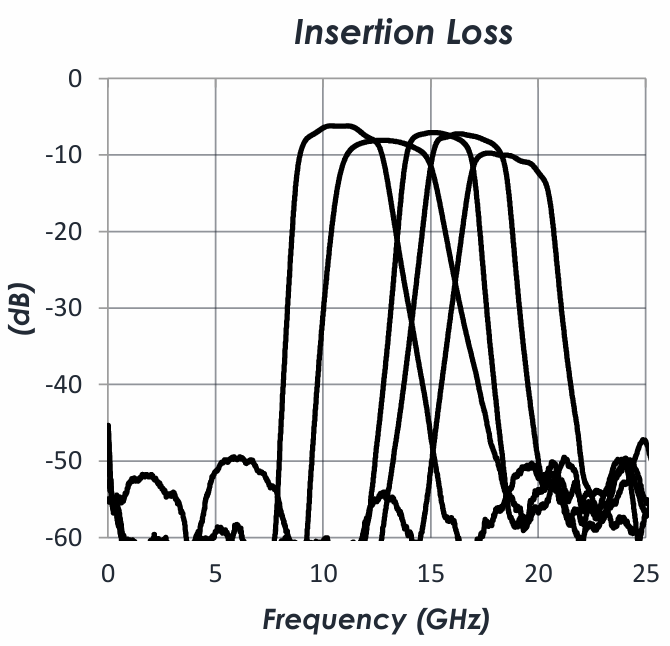

Insertion Loss (dB)
50
Typical Rejection (dB)
9mm
Package
