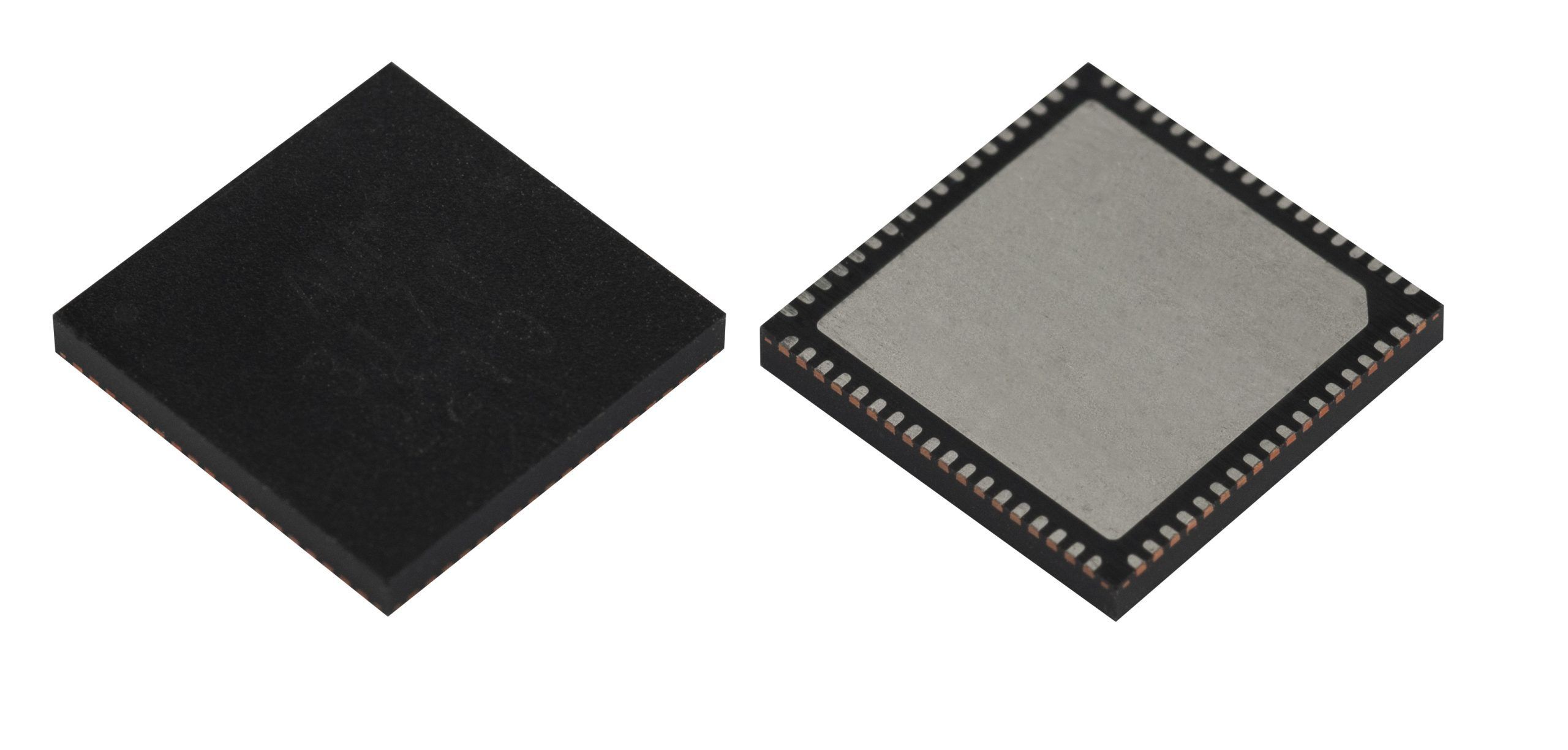

AM3170 Analog Voltage Tunable 6 GHz to 18 GHz Band Stop MMIC Filter

Analog Voltage Tunable 6 GHz to 18 GHz Notch Filter Bank

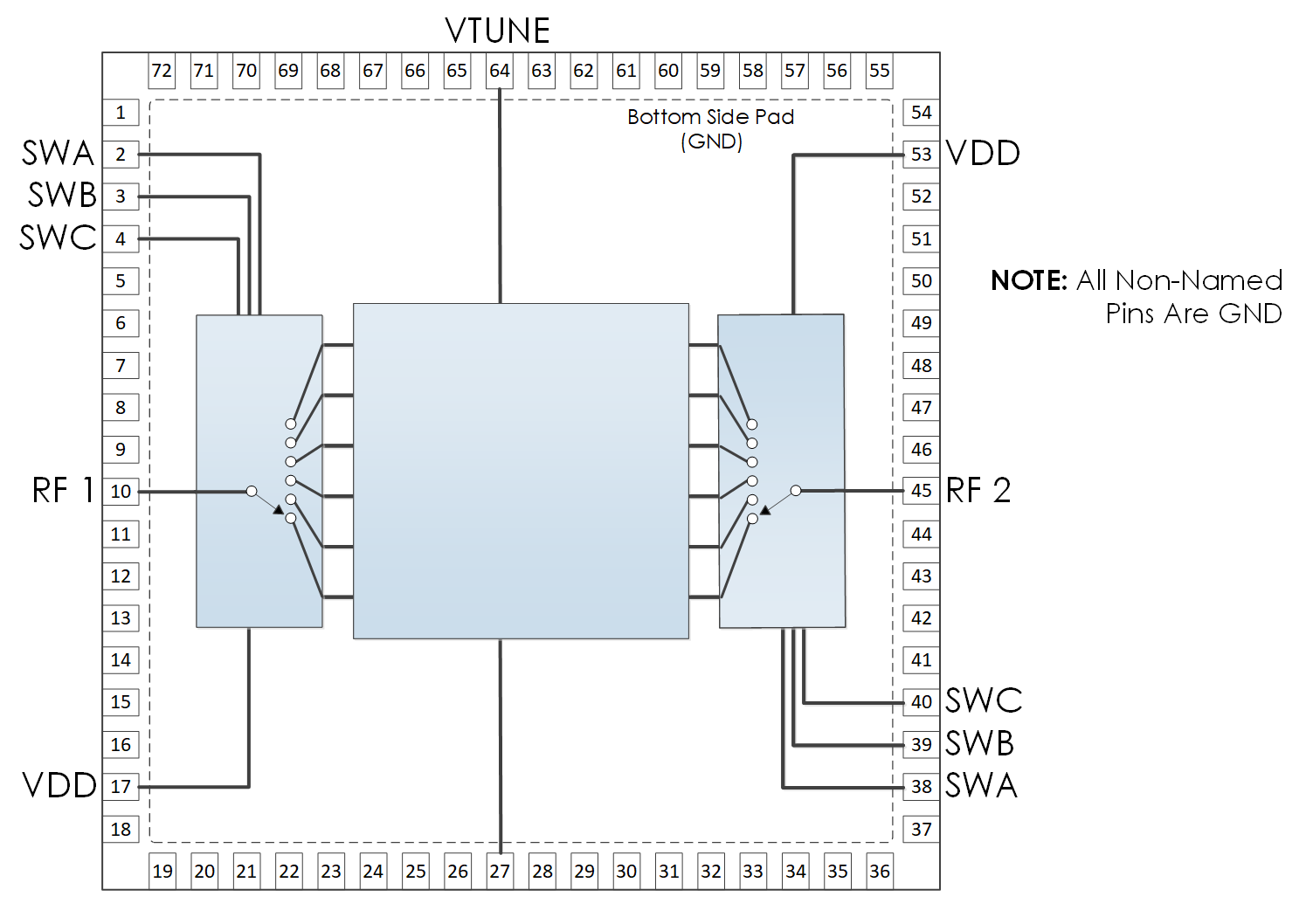

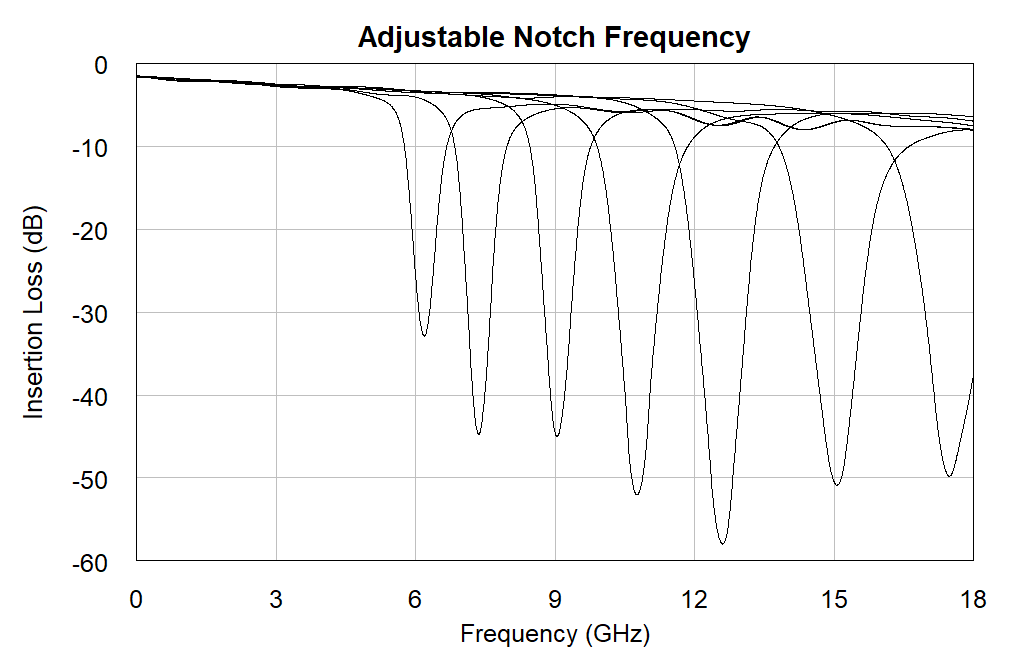

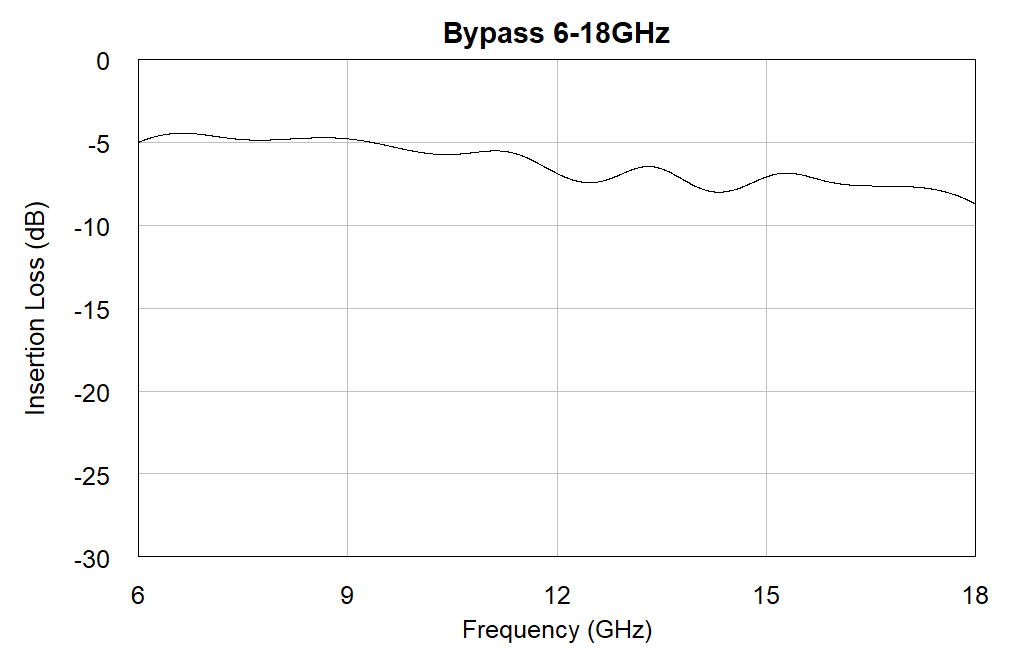

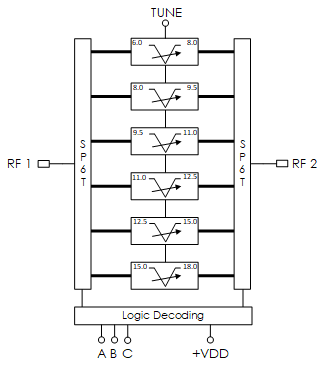

AM3170 is an analog-tunable notch filter bank with notches from 6.0 to 18.0 GHz. Six notch filters with SP6T switches on the input and output are contained in the multi-chip module (MCM). The tune voltage provides control of notch frequency, and a bypass path is provided by applying a 0.0V control voltage while switched to band 1. AM3170 provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency removal, high dynamic range, low insertion loss, and small size, weight, and power consumption (low SWAP).

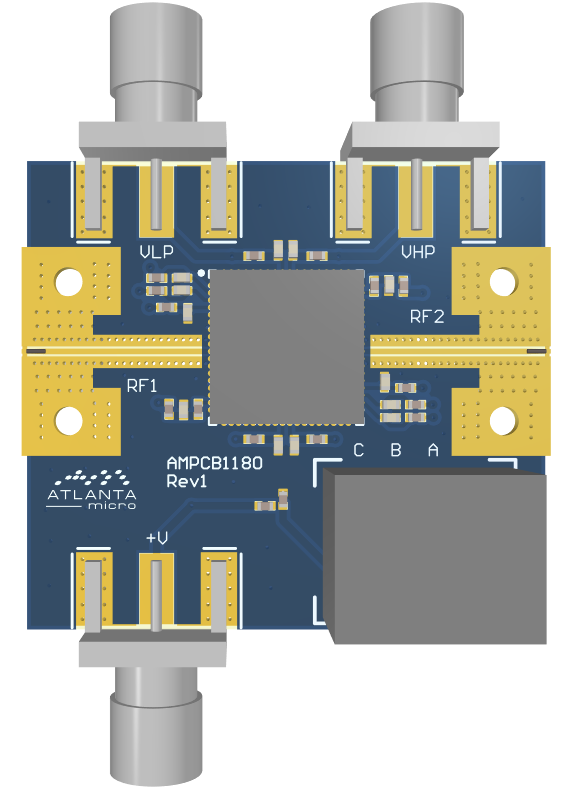

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM3137 and trace calibration path.

The AM3170 is one in a family of analog voltage-tunable notch filters offered from Mercury that covers the 0.7 GHz to 18.0 GHz frequency range. In addition to the AM3170 in this family there is the AM3137 that covers 0.7 GHz to 2.0 GHz, the AM3138 that covers 1.3 GHz to 3.25 GHz, the AM3139 that covers 2.5 GHz to 6.0 GHz, and the AM3129 which is a switched filter bank covering 0.7 GHz to 6.0 GHz.

This family of parts provides an excellent filtering solution for a receiver or transceiver requiring flexible center frequency removal, high dynamic range, low insertion loss, and small size, low weight, and low power consumption (low SWAP).

ASK A QUESTION


5
Insertion Loss (dB)
40
Typical Rejection (dB)
10mm
Package
Features
  • Function: Analog Tunable Notch Filter Bank
  • Insertion Loss (dB): 5
  • Typical Rejection (dB): 40
  • Package: 10mm QFN
  • Bandwidth Low (MHz): ---
  • Bandwidth High (MHz): 20%
  • # in Pack: 6
  • Center Freq High (MHz): 18000
  • Center Freq Low (MHz): 6000
Specifications
  • Function: Analog Tunable Notch Filter Bank
  • Insertion Loss (dB): 5
  • Typical Rejection (dB): 40
  • Package: 10mm QFN
  • Bandwidth Low (MHz): ---
  • Bandwidth High (MHz): 20%
  • # in Pack: 6
  • Center Freq High (MHz): 18000
  • Center Freq Low (MHz): 6000
