AM3033 Digitally Tunable 100 MHz to 225 MHz Highpass MMIC Filter

Digitally Tunable 100 MHz to 225 MHz High Pass Filter

AM3033 is a miniature digitally tunable highpass filter covering the 100 to 225 MHz frequency range. The filter provides 16 selectable highpass cutoff states with 4 digital control bits. The tunable highpass filter can be combined with one of Mercury’s tunable lowpass filters to provide a flexible tunable bandpass filter solution. AM3033 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

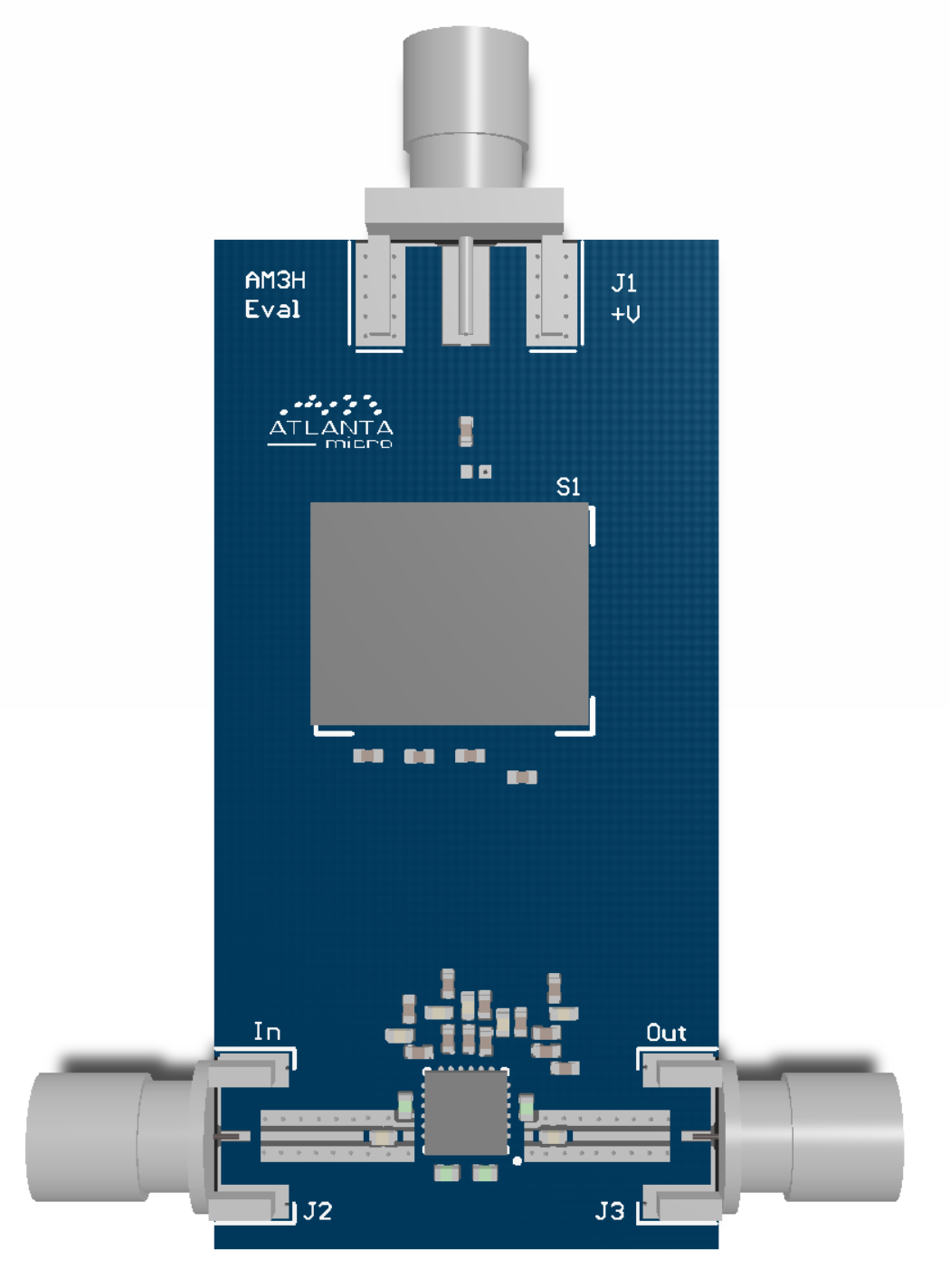

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3033 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3033.

ASK A QUESTION


1
Insertion Loss (dB)
50
Typical Rejection (dB)
4mm
Package
Features
  • Function: Digitally Tunable Highpass
  • Cutoff Freq Low (MHz): 100
  • Cutoff Freq High (MHz): 225
  • Insertion Loss (dB): 1
  • Typical Rejection (dB): 50
  • Package: 4mm QFN
Specifications
  • Function: Digitally Tunable Highpass
  • Cutoff Freq Low (MHz): 100
  • Cutoff Freq High (MHz): 225
  • Insertion Loss (dB): 1
  • Typical Rejection (dB): 50
  • Package: 4mm QFN
