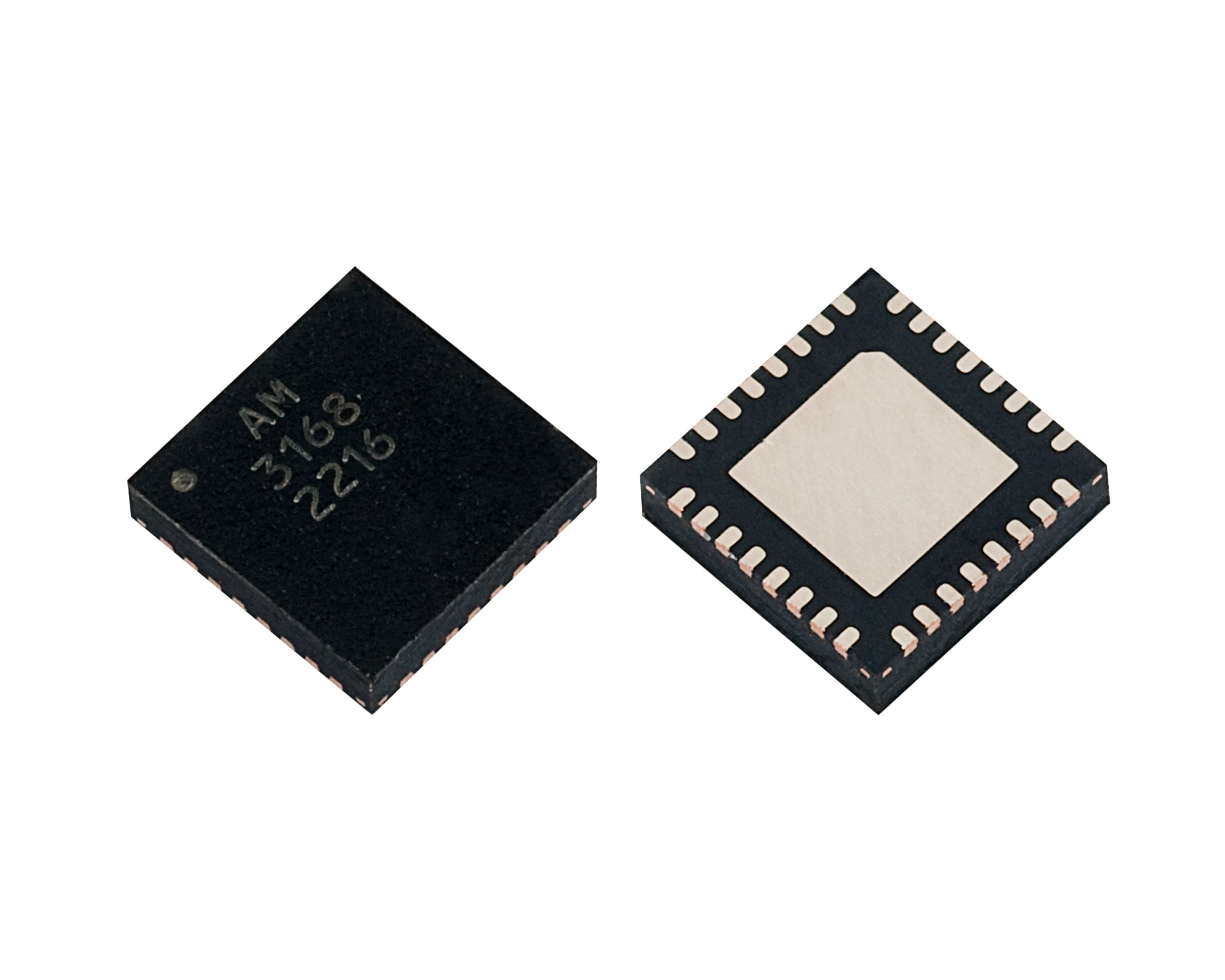

Analog Tunable 13 to 19 GHz Notch Filter Bank

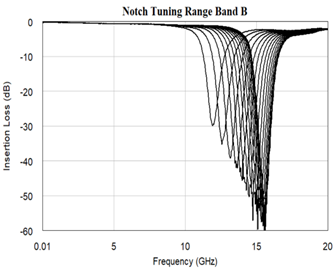

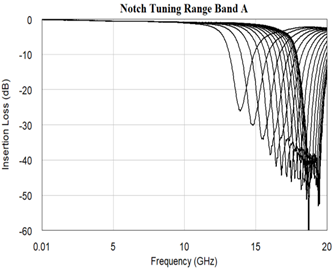

AM3168 is an analog voltage-tunable notch filter bank covering the 13 GHz to 19 GHz frequency range. The device offers two bands from 13 GHz to 16 GHz and 16 GHz to 19 GHz for continuous notch frequency within its operating range. Only one tune voltage input is required providing simple and precise control of the notch frequency. The AM3168 provides an excellent solution for receiver or transceiver designs requiring flexible frequency rejection, high dynamic range, low insertion loss, and small size, and power consumption (low SWaP).
1
Insertion Loss (dB)
40
Typical Rejection (dB)
5mm
Package
