AM3064 Digitally Tunable 1.0 GHz to 6.5 GHz Bandpass MMIC Filter

Digitally Tunable 1.0 GHz to 6.5 GHz Band Pass Filter

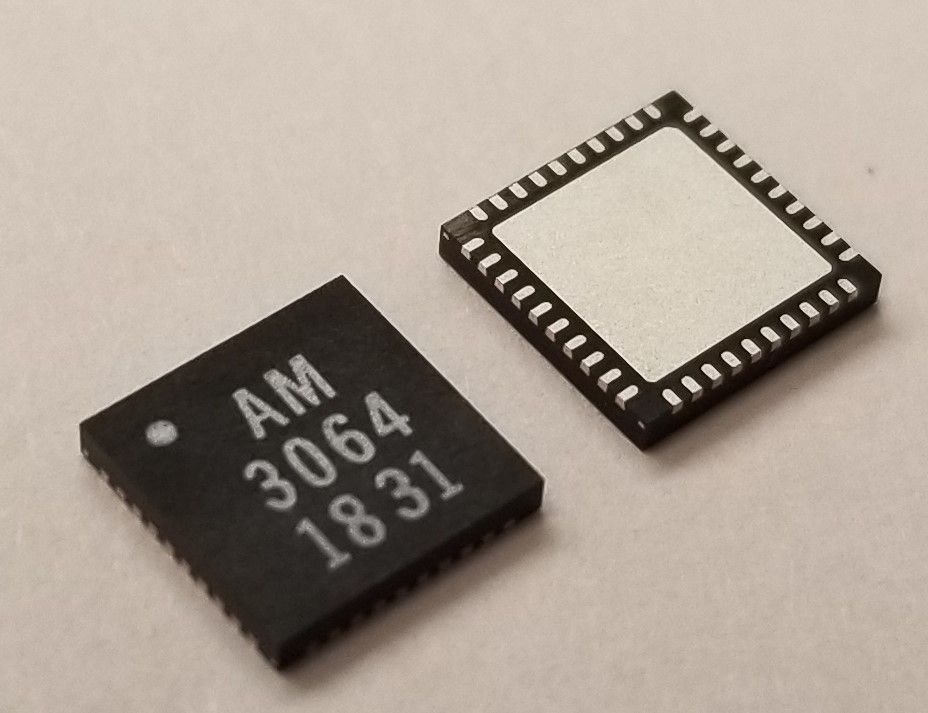

AM3064 is a miniature filter IC containing digitally tunable bandpass filters covering the 1.0 GHz to 6.5 GHz frequency range.  Separate low-pass and high-pass control lines provide independent control of both center frequency and bandwidth.  AM3064 is packaged in a 6mm QFN and operates over the -40C to +85C temperature range.

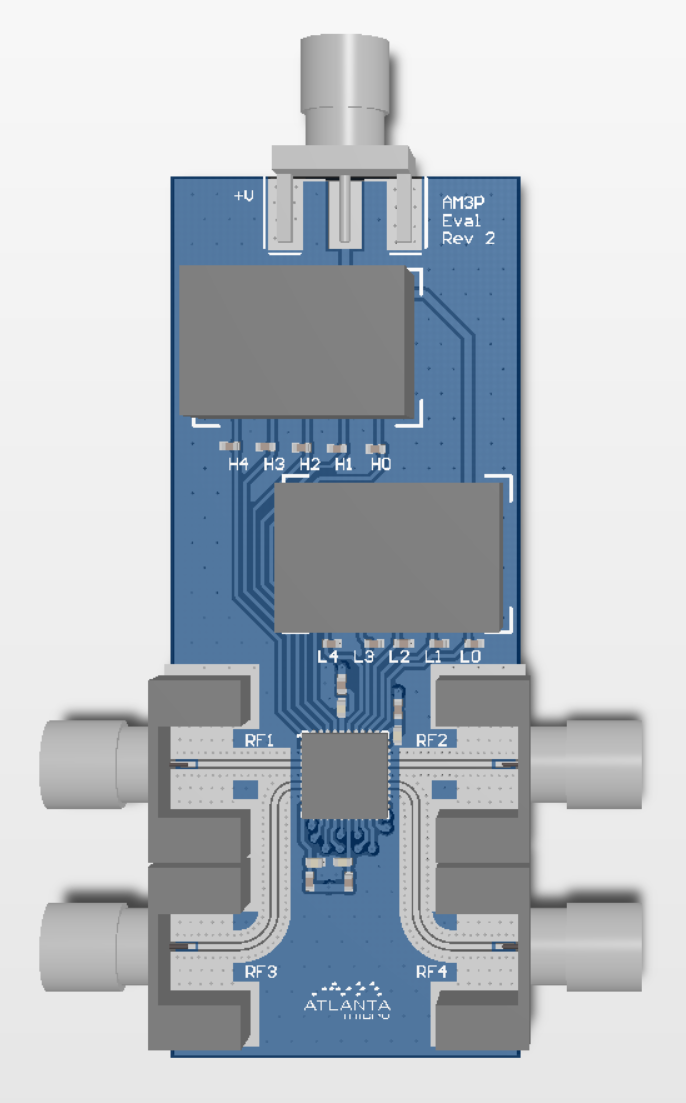

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3064 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3064.

The AM3064 is one of three in a family of digitally tunable bandpass filter banks offered from Mercury that cover the 1 GHz to 26.5 GHz frequency range. In this family there is the AM3063 that covers 6.0 GHz to 18.0 GHz and the AM3066 that covers 12.0 GHz to 26.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

ASK A QUESTION


3
Insertion Loss (dB)
50
Typical Rejection (dB)
6mm
Package
Features
  • Function: Digitally Tunable Filter Bank
  • Cutoff Freq Low (MHz): 1000
  • Cutoff Freq High (MHz): 6500
  • Insertion Loss (dB): 3
  • Typical Rejection (dB): 50
  • Package: 6mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • Center Frequency: Adjustable
  • # in Pack: 2
Specifications
  • Function: Digitally Tunable Filter Bank
  • Cutoff Freq Low (MHz): 1000
  • Cutoff Freq High (MHz): 6500
  • Insertion Loss (dB): 3
  • Typical Rejection (dB): 50
  • Package: 6mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • Center Frequency: Adjustable
  • # in Pack: 2
