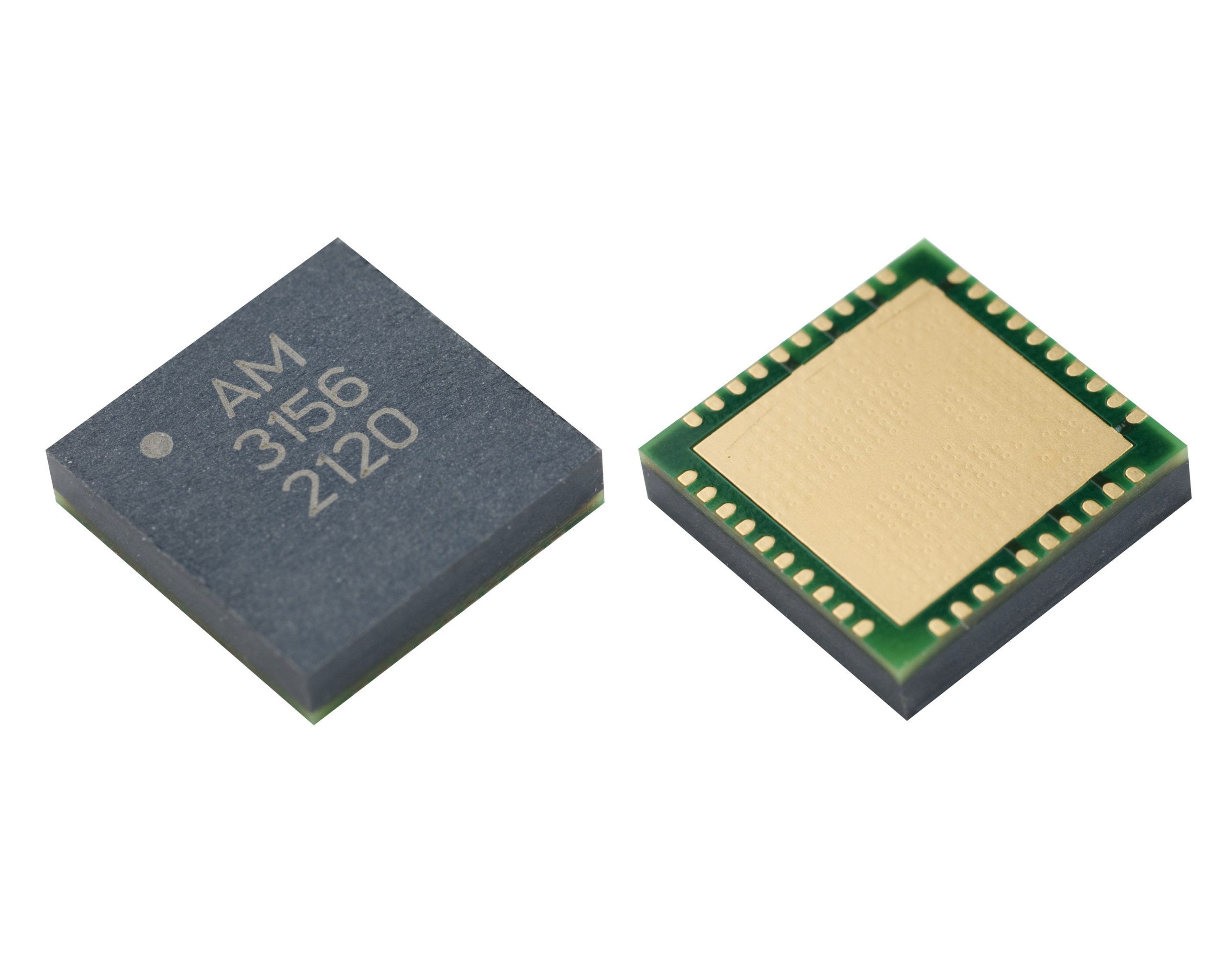

AM3156 Digitally Tunable 400 MHz to 8 GHz Bandpass MMIC Filter

Digitally Tunable 400 MHz to 8 GHz Bandpass

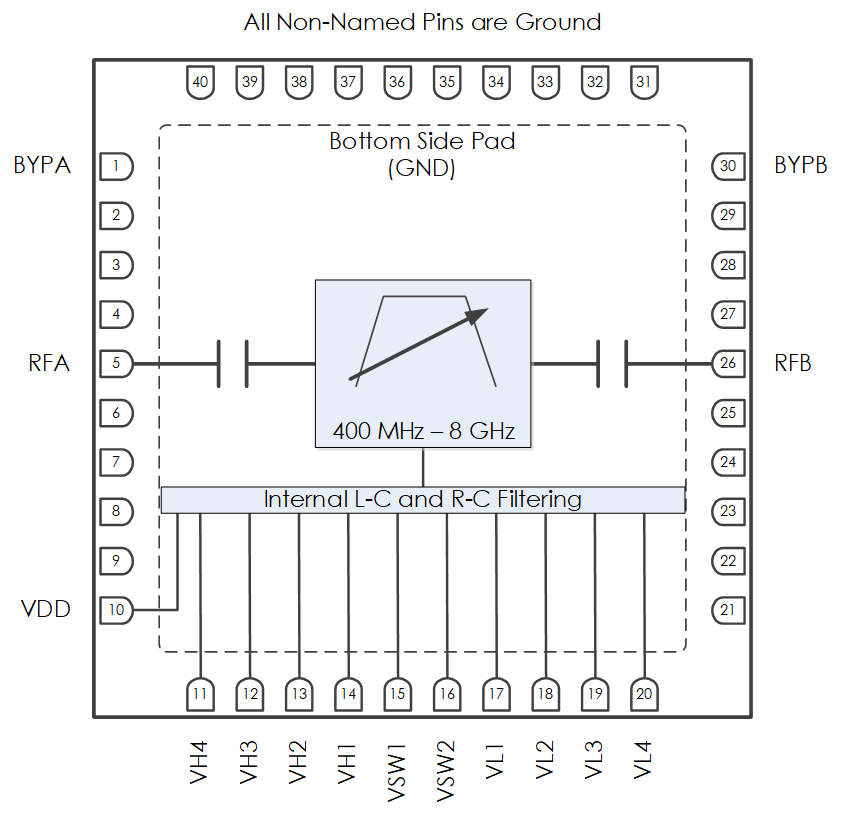

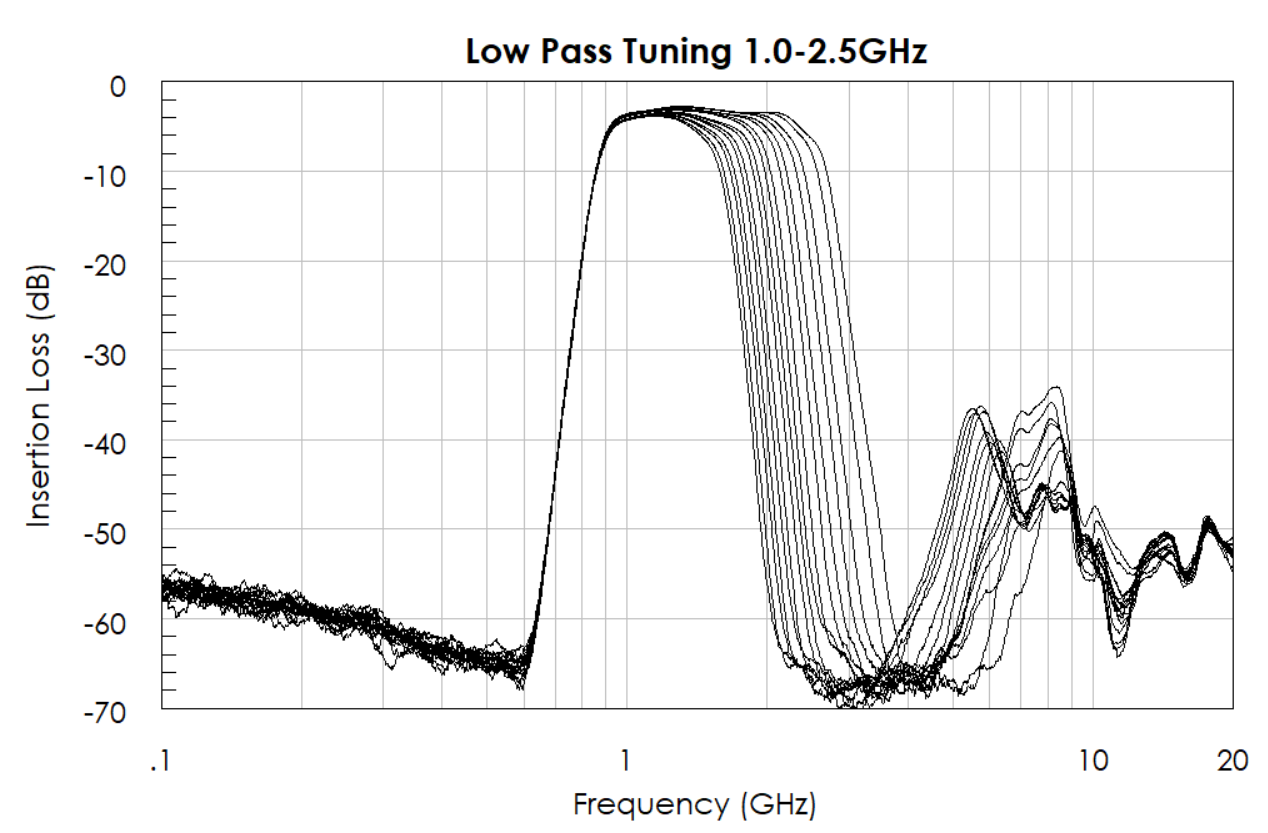

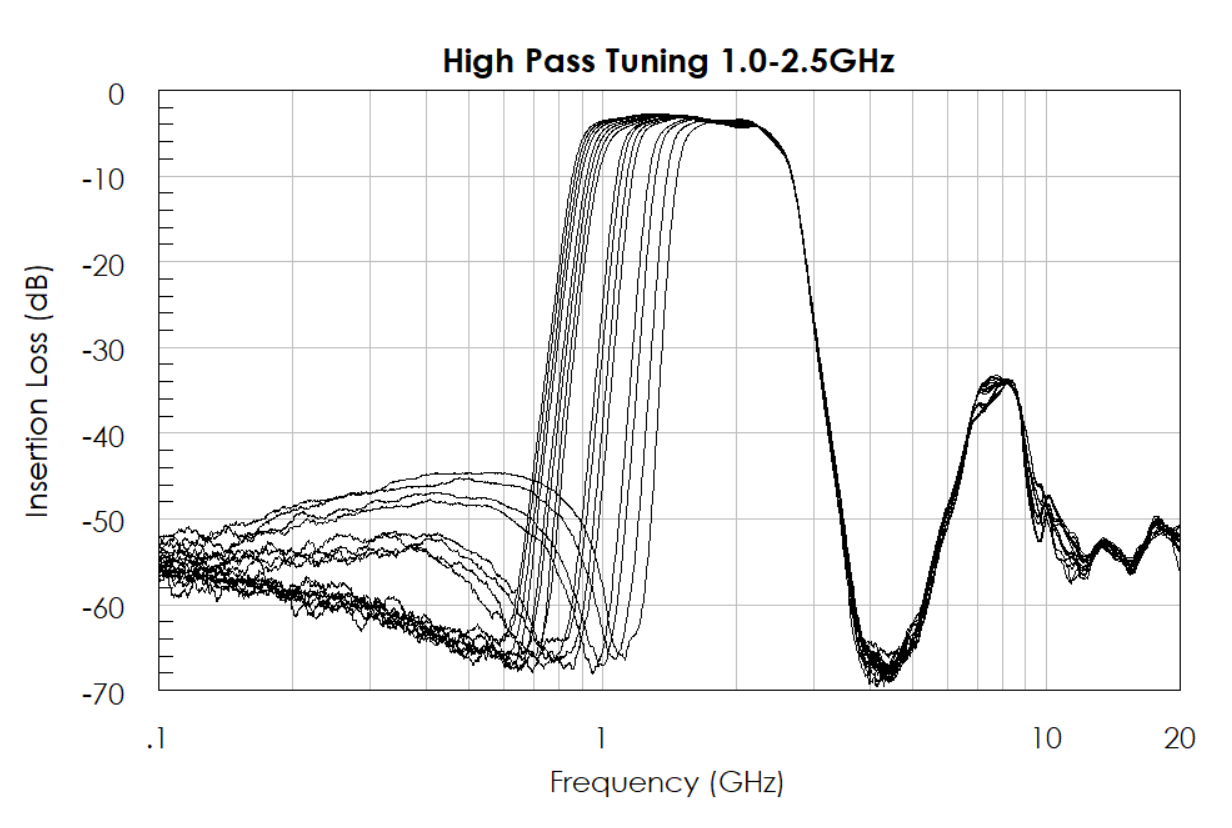

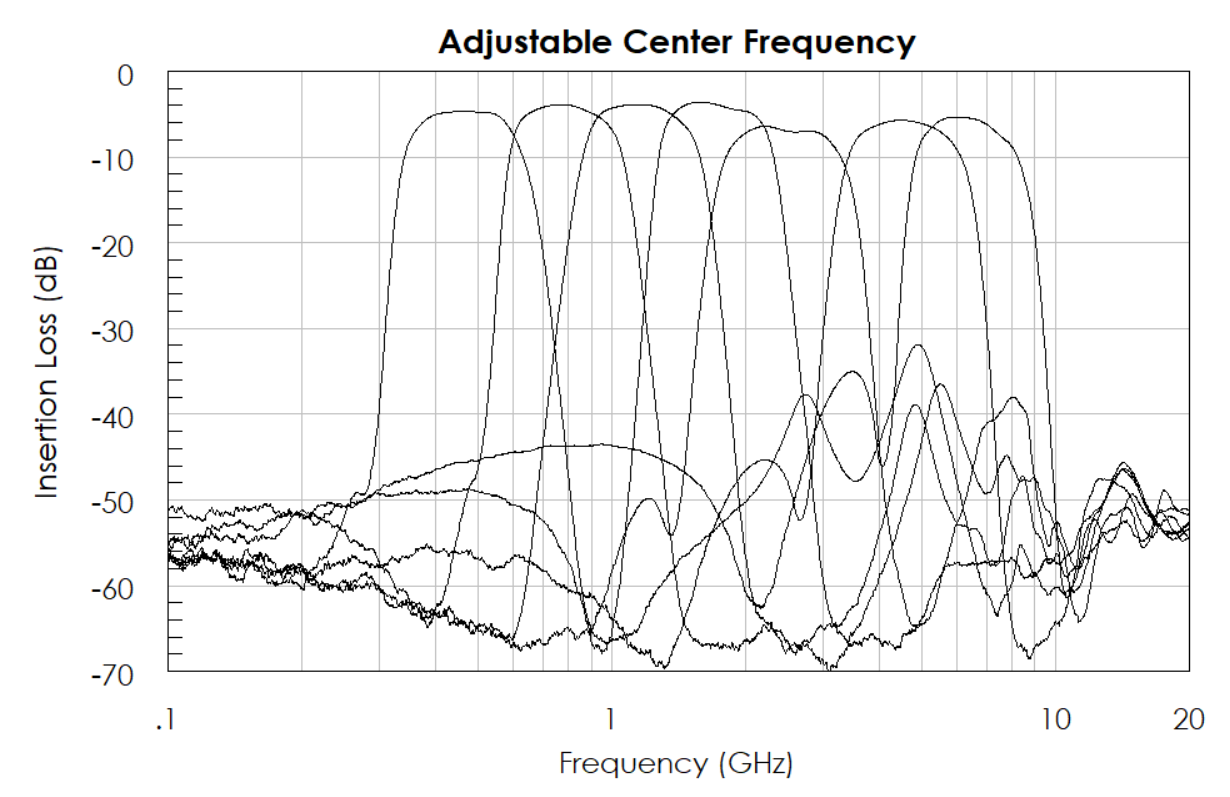

AM3156 is a fully integrated miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device exhibits 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 10mm QFN package. AM3156 expands on our AM3152 device by integrating the inductors and DC blocking capacitors and placing it all in one easy to install chip. AM3156 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

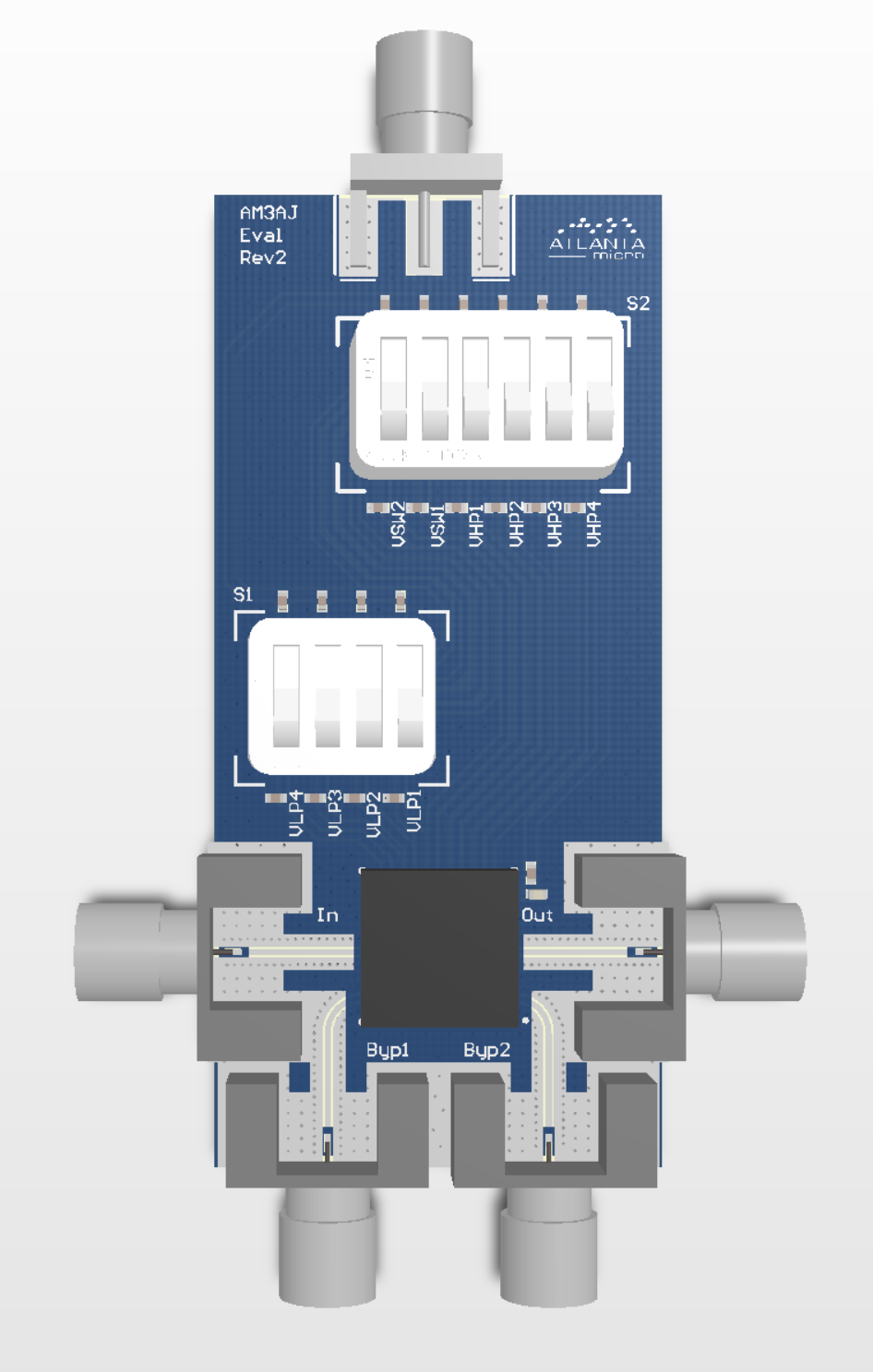

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3156 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3156.

Is 2mm too tall for your application? Do you need a higher MSL rating and/or a ceramic package? Try the original AM3152 instead.

ASK A QUESTION


4.5
Insertion Loss (dB)
50
Typical Rejection (dB)
10mm
Package
Features
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 400
  • Cutoff Freq High (MHz): 8000
  • Insertion Loss (dB): 4.5
  • Typical Rejection (dB): 50
  • Package: 10mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Center Frequency: Tunable
  • # in Pack: 3 + Bypass
Specifications
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 400
  • Cutoff Freq High (MHz): 8000
  • Insertion Loss (dB): 4.5
  • Typical Rejection (dB): 50
  • Package: 10mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Center Frequency: Tunable
  • # in Pack: 3 + Bypass
