AM3065 Digitally Tunable 6.0 GHz to 12.0 GHz Bandpass MMIC Filter

Digitally Tunable 6.0 GHz to 12.0 GHz Band Pass Filter

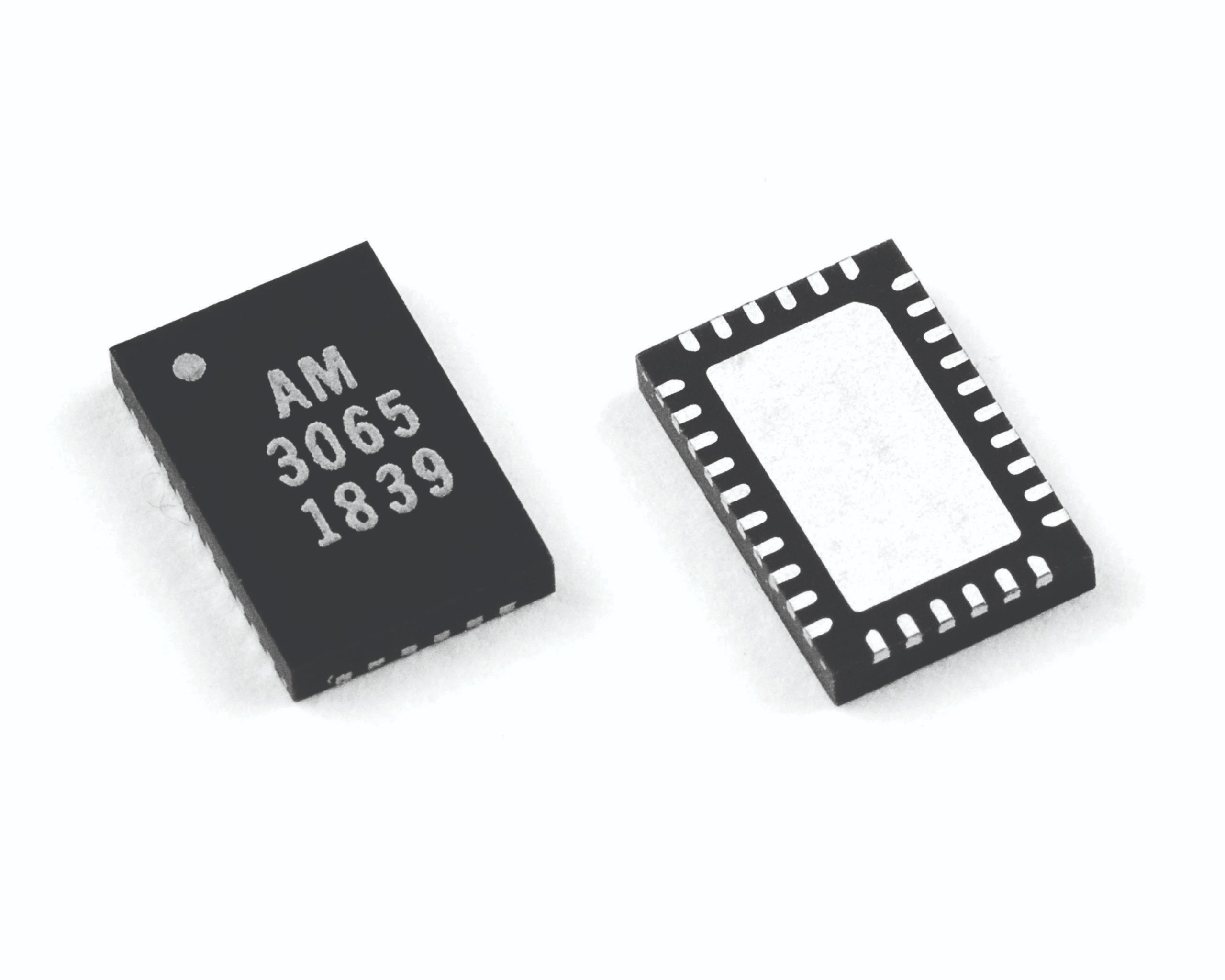

AM3065 is a miniature filter IC containing digitally tunable bandpass filters covering the 6.0 GHz to 12.0 GHz frequency range. Separate low-pass and high-pass tuning voltages provide independent control of both center frequency and bandwidth. AM3065 is packaged in a 4mm x 6mm QFN* and operates over the -40C to +85C temperature range.

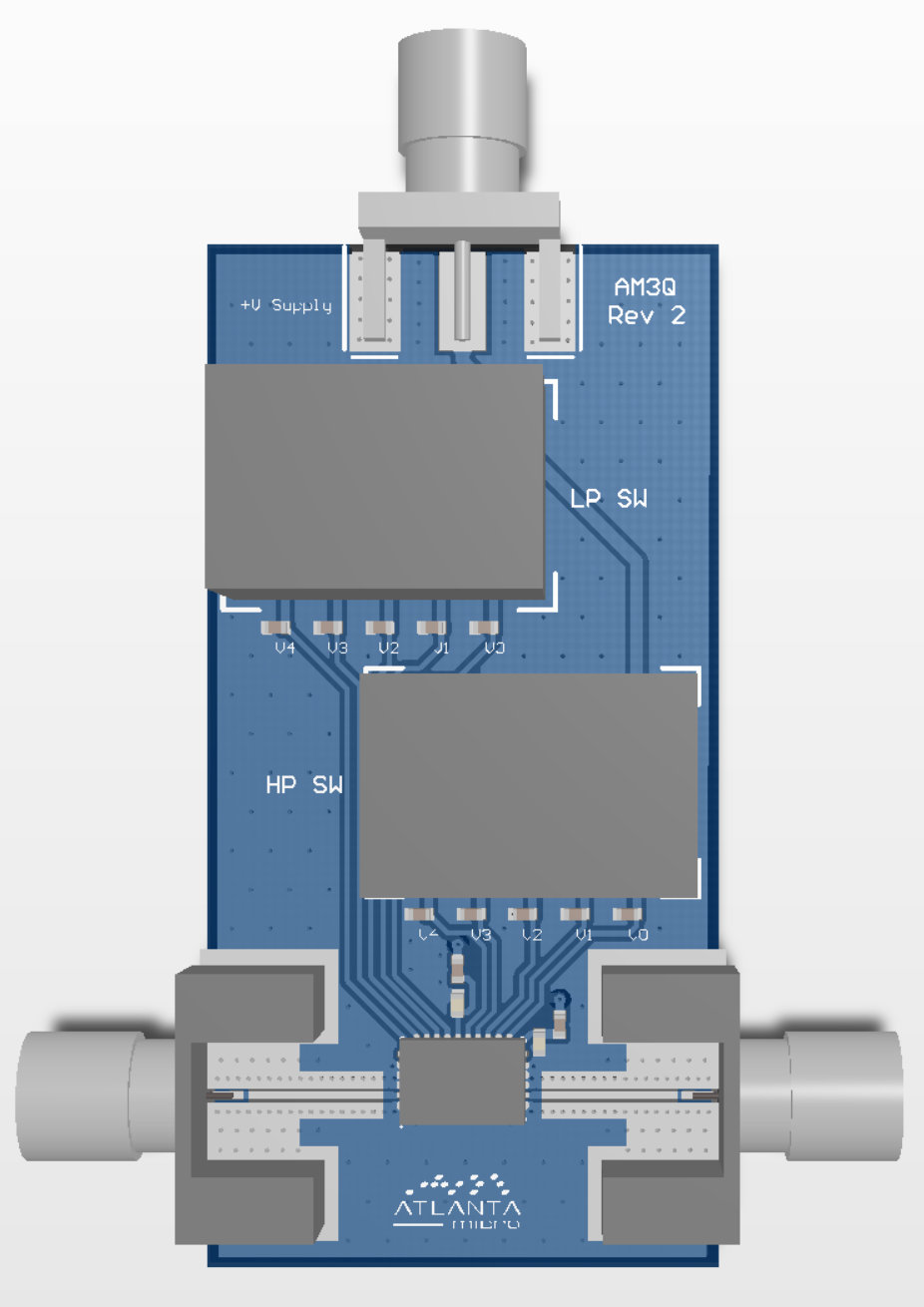

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3065 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3065.

The AM3065 is one in a family of digitally tunable bandpass filters offered from Mercury that cover the DC to 12.0 GHz frequency range. In this family there is the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

*NOTE: Pinout for AM3065 is different than AM3102, AM3103, and AM3104.

ASK A QUESTION


4
Insertion Loss (dB)
40
Typical Rejection (dB)
4x6mm
Package
Features
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 6000
  • Cutoff Freq High (MHz): 12000
  • Insertion Loss (dB): 4
  • Typical Rejection (dB): 40
  • Package: 4x6mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • Center Frequency: Adjustable
  • # in Pack: 1
Specifications
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 6000
  • Cutoff Freq High (MHz): 12000
  • Insertion Loss (dB): 4
  • Typical Rejection (dB): 40
  • Package: 4x6mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • Center Frequency: Adjustable
  • # in Pack: 1
