AM3090 Digitally Tunable 100 MHz to 450 MHz Bandpass MMIC Filter

Digitally Tunable 100 MHz to 450 MHz Band Pass Filters

AM3090 is a miniature digitally tunable filter providing selectable highpass filtering over the 100 to 225 MHz and independently selectable lowpass filtering over the 150 to 450 MHz frequency range. The filter also provides a bypass mode where only the lowpass filter is active. With independent 4-bit digital control for each of the filters many center frequency/ bandwidth configurations can easily be achieved. AM3090 has a compact 4mm x 8mm QFN footprint and operates over the -40C to +85C temperature range.

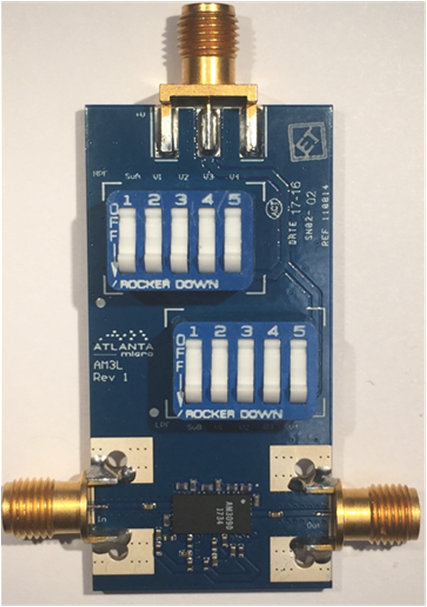

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3090 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3090.

The AM3090 is one in a family of digitally tunable bandpass filters offered from Mercury that cover the DC to 12.0 GHz frequency range. In this family there is the AM3065 that covers 6.0 GHz to 12.0 GHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

ASK A QUESTION

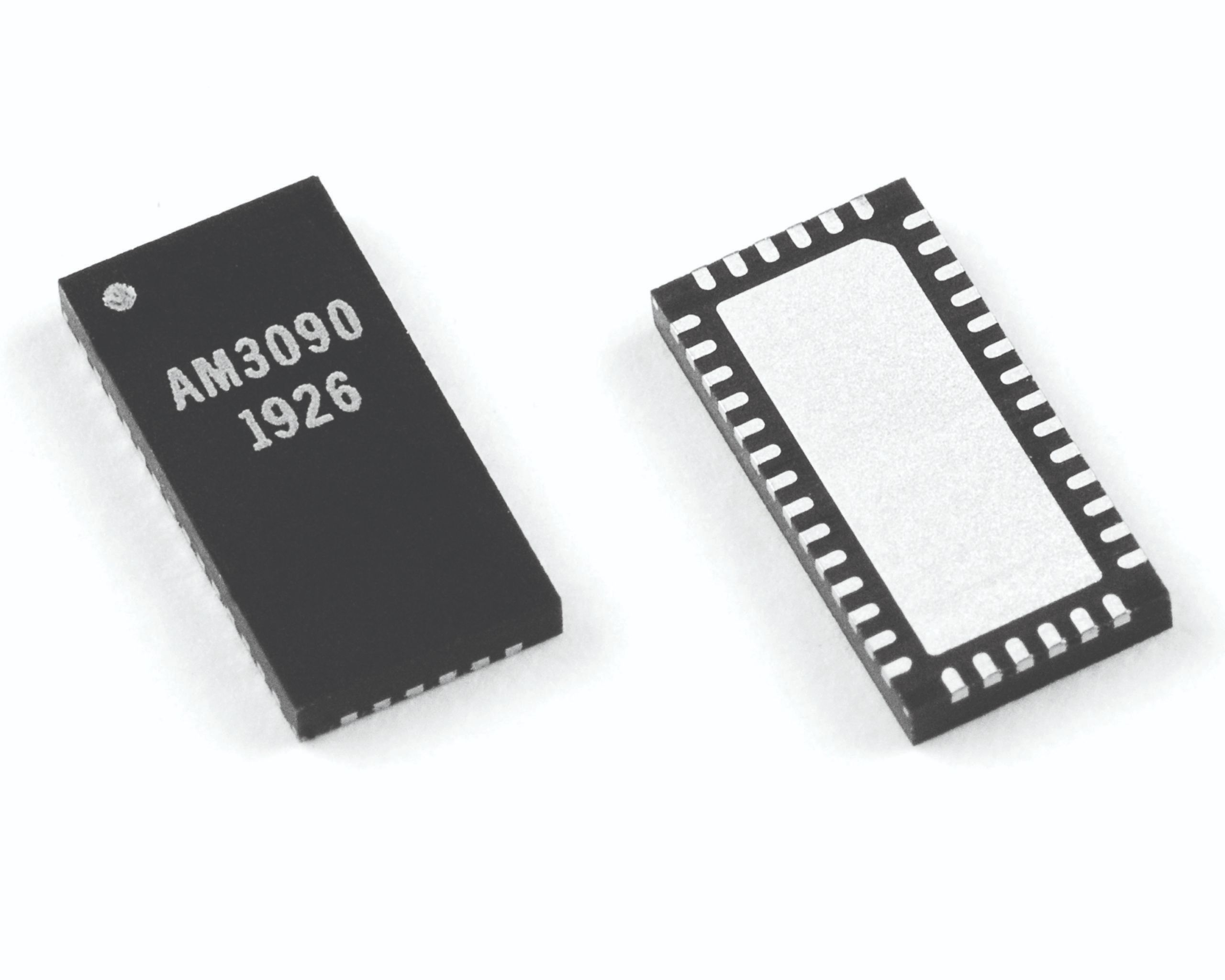

AM3090-MMIC-Filter

3
Insertion Loss (dB)
40
Typical Rejection (dB)
4x8mm
Package
Features
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 100
  • Cutoff Freq High (MHz): 450
  • Insertion Loss (dB): 3
  • Typical Rejection (dB): 40
  • Package: 4x8mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • Center Frequency: Adjustable
Specifications
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 100
  • Cutoff Freq High (MHz): 450
  • Insertion Loss (dB): 3
  • Typical Rejection (dB): 40
  • Package: 4x8mm QFN
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • Center Frequency: Adjustable
