8 GHz to 12 GHz IF Bandpass Filter

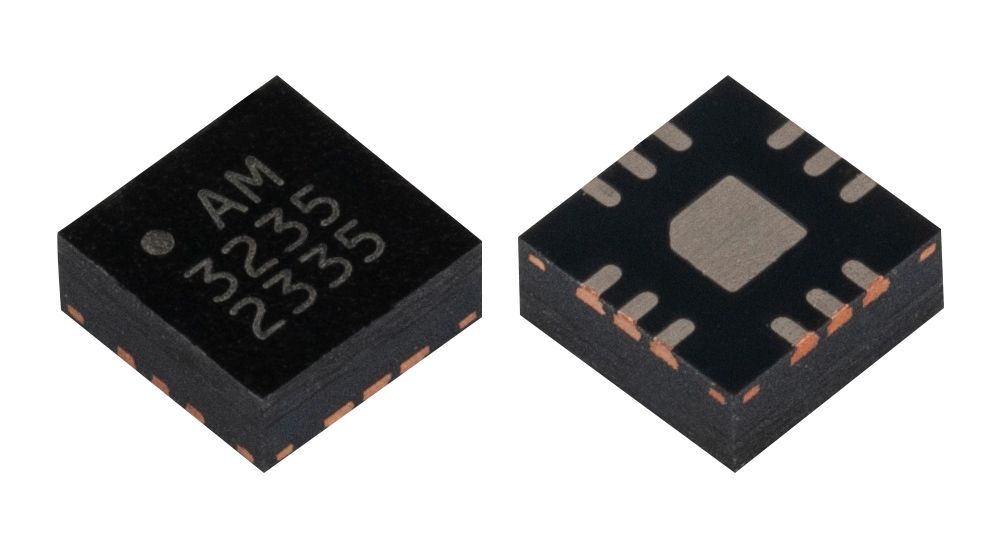

AM3235 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 10 GHz and 4 GHz of bandwidth, AM3235 is useful as an IF filter for reducing unwanted mixer products and LO feedthrough in X-band systems. AM3235 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.
Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3235.
2.2
Insertion Loss (dB)
35
Typical Rejection (dB)
3mm
Package
