AM3186 6 GHz to 26.5 GHz Sub-Octave MMIC Filter Bank

6 GHz to 26.5 GHz Sub-Octave Filter Bank

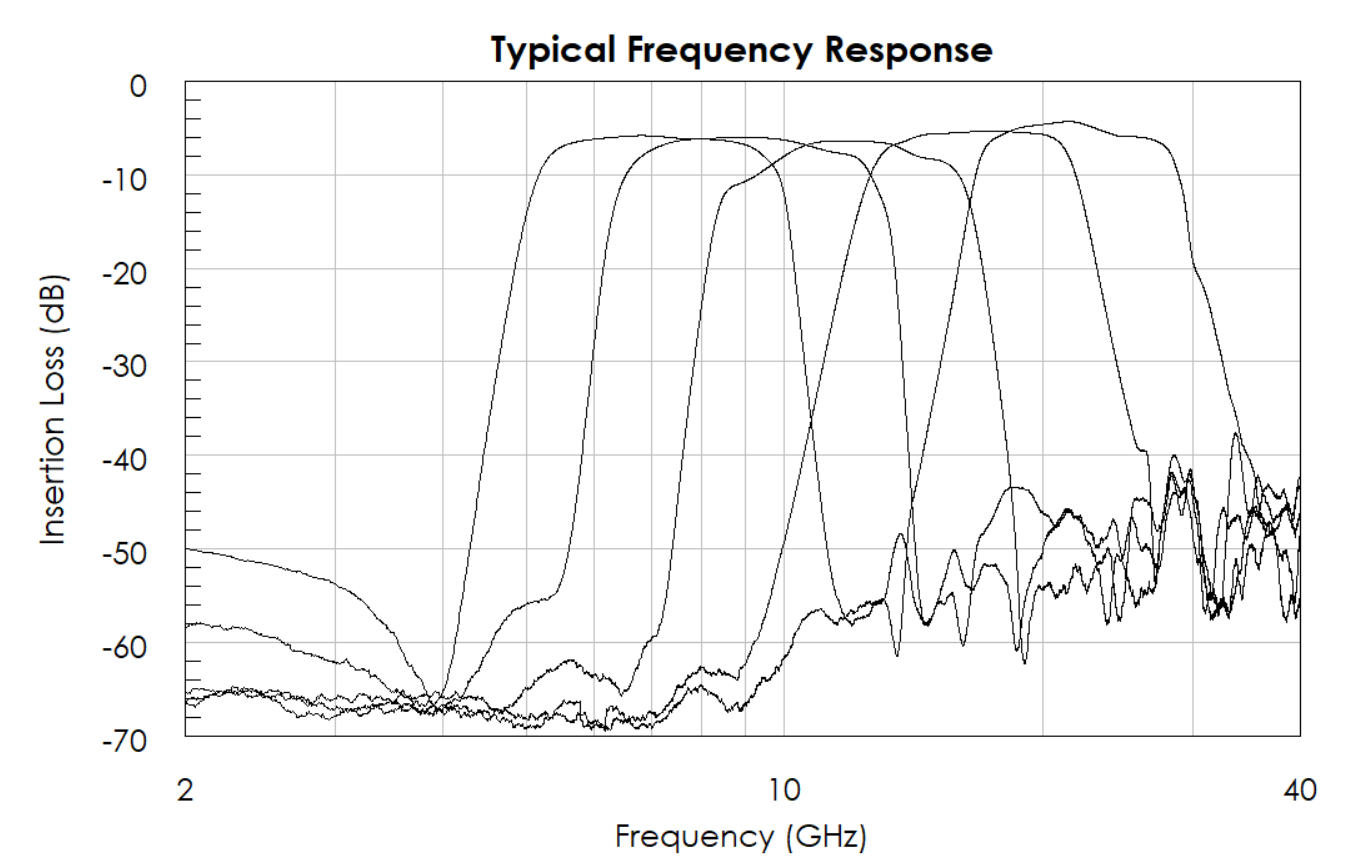

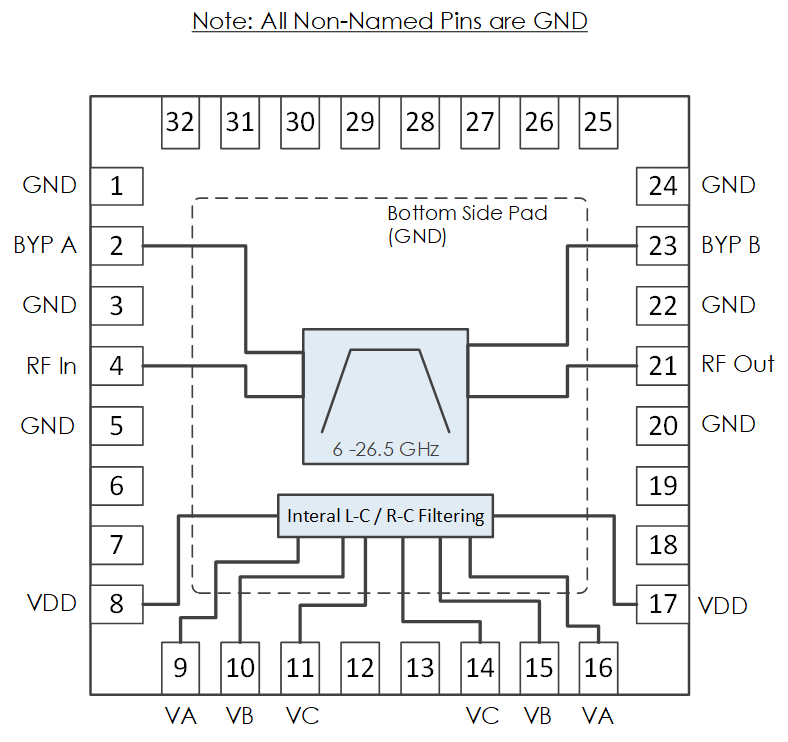

AM3186 is a sub-octave fixed bandpass filter bank covering the 6 GHz to 26.5 GHz frequency range offering low insertion loss and high out of band rejection of 50 dBc+. The filter bank contains 5 bandpass filters with full 1 GHz overlap as well as an integrated, low-loss filter bypass path to 20 GHz. AM3186 is an excellent front/back-end filter bank for a broadband receiver, transmitter, or transceiver requiring high dynamic range and small size, weight, and power consumption (low SWaP). AM3186 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3186 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3186.

ASK A QUESTION

AM3186-MMIC-Filter

6
Insertion Loss (dB)
50
Typical Rejection (dB)
5mm
Package
Features
  • Function: Sub-Octave Filter Bank
  • Cutoff Freq Low (MHz): 6000
  • Cutoff Freq High (MHz): 26500
  • Insertion Loss (dB): 6
  • Typical Rejection (dB): 50

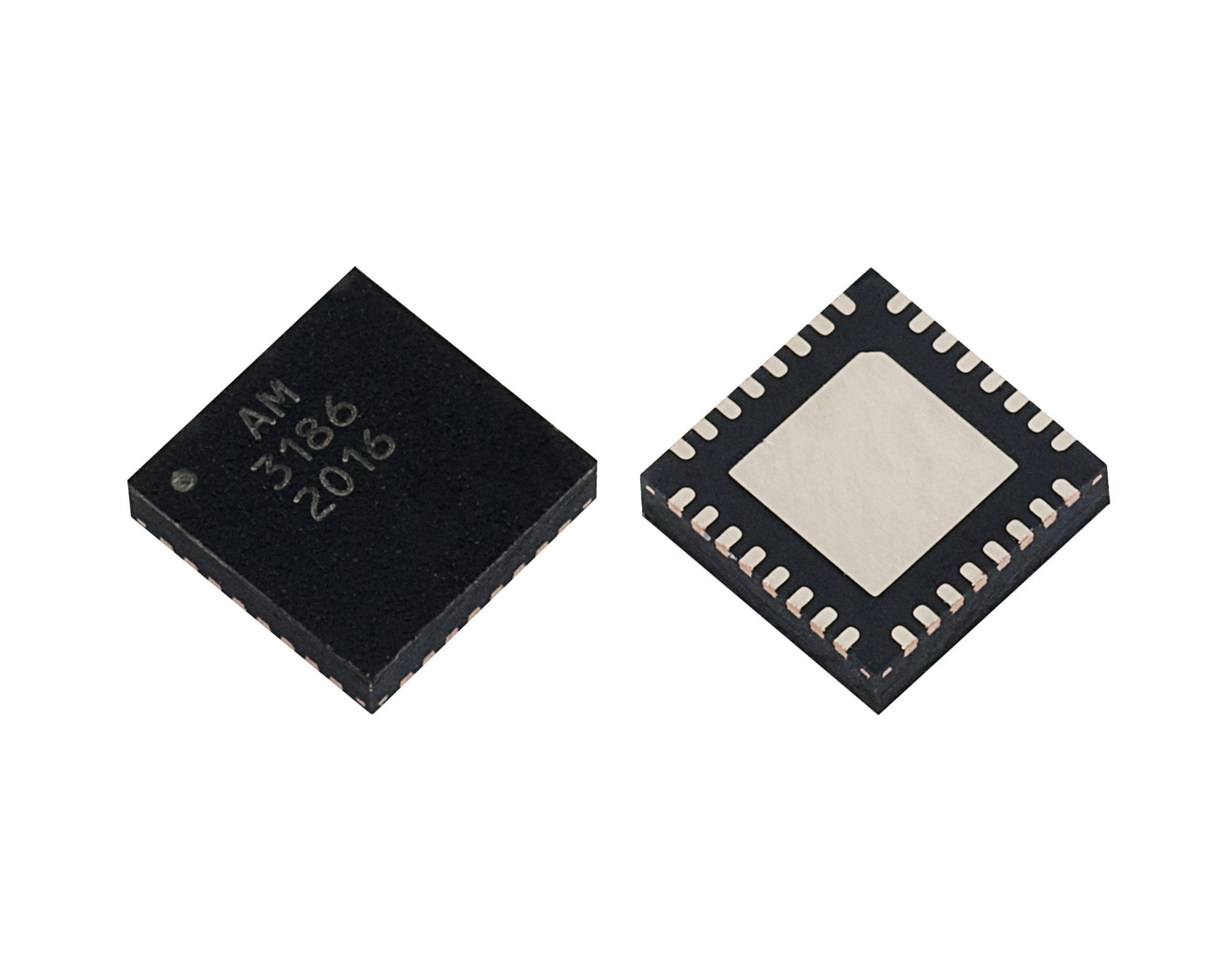

  • Package: 5mm QFN
  • Bandwidth Low (MHz): 3000
  • Bandwidth High (MHz): 8300
  • Center Frequency: 7200 to 22350
  • # in Pack: 5 + Bypass
Specifications
  • Function: Sub-Octave Filter Bank
  • Cutoff Freq Low (MHz): 6000
  • Cutoff Freq High (MHz): 26500
  • Insertion Loss (dB): 6
  • Typical Rejection (dB): 50
  • Package: 5mm QFN
  • Bandwidth Low (MHz): 3000
  • Bandwidth High (MHz): 8300
  • Center Frequency: 7200 to 22350
  • # in Pack: 5 + Bypass
  • Center Freq High (MHz): 22350
  • Center Freq Low (MHz): 7200
