AM3188 3 GHz IF Bandpass MMIC Filter

3 GHz IF Bandpass Filter

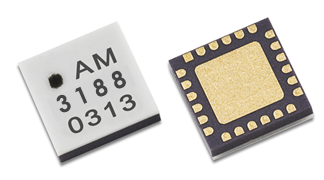

AM3188 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4 mm package. With a center frequency of 3 GHz and a bandwidth of 1 GHz, AM3188 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3188 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

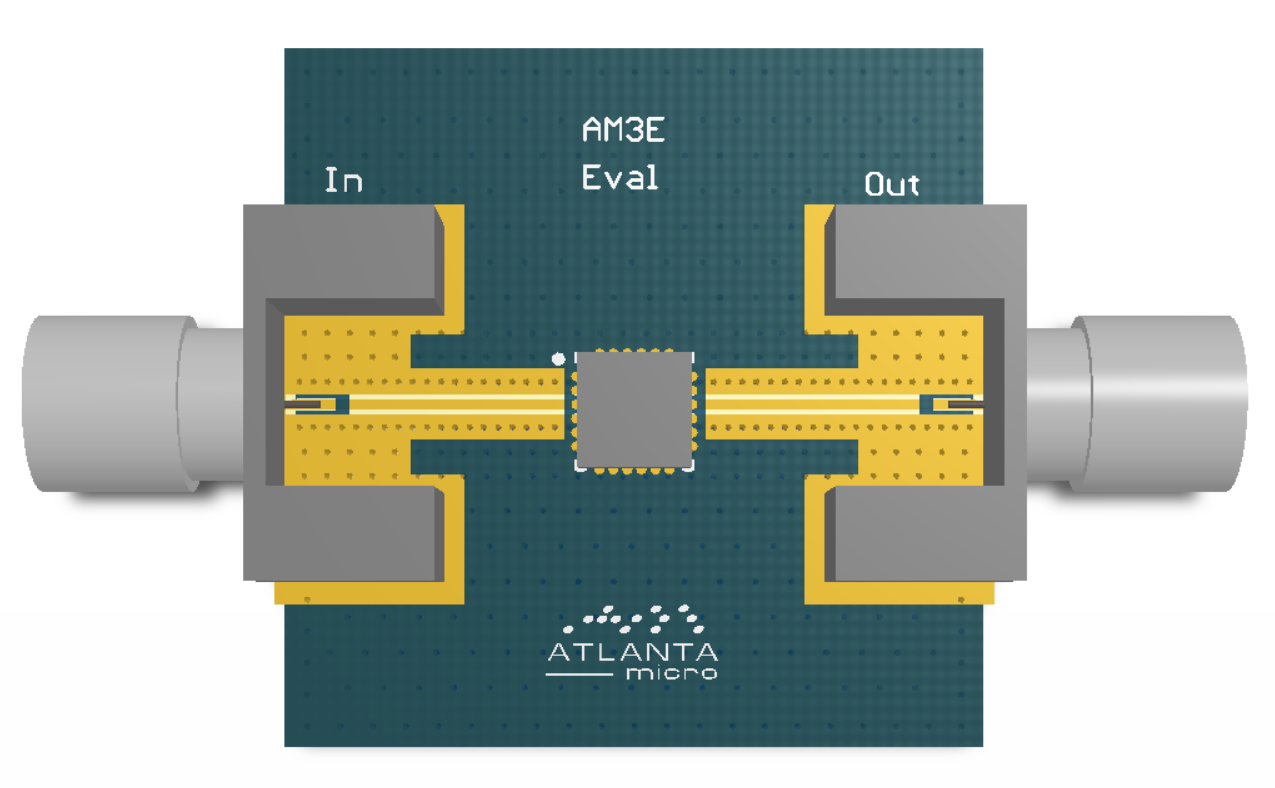

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3188.

ASK A QUESTION


3

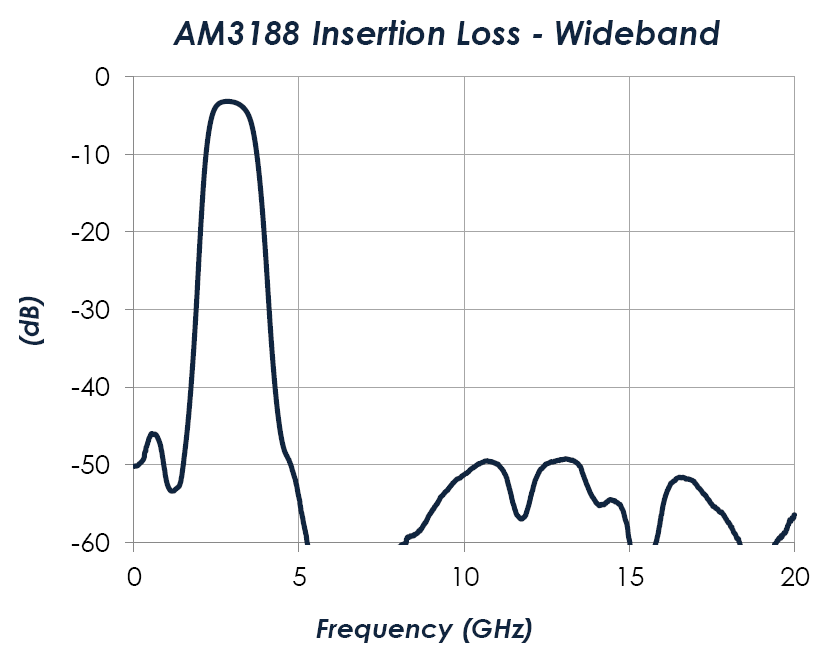

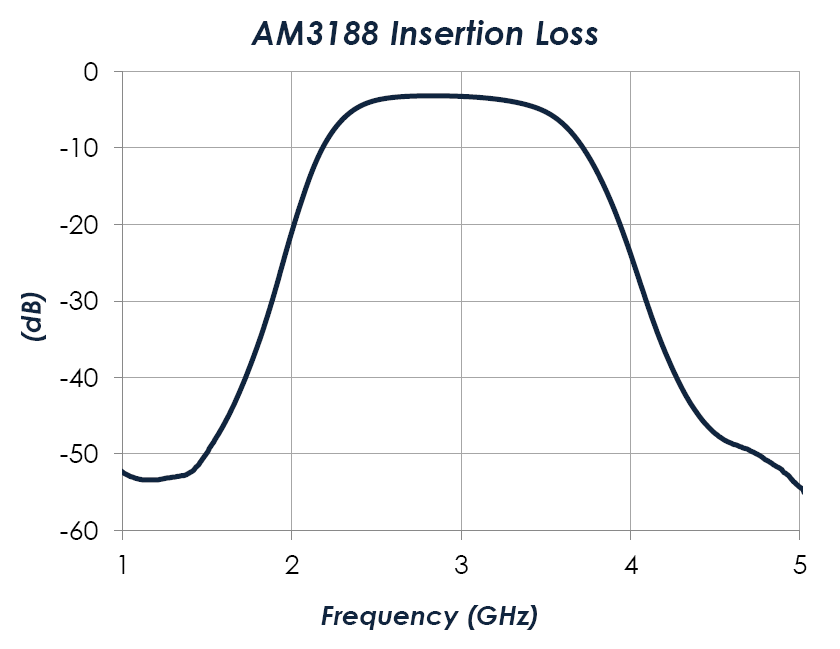

Insertion Loss (dB)
50
Typical Rejection (dB)
4mm
Package
Features
  • Function: IF Bandpass Filter
  • Cutoff Freq Low (MHz): 2500
  • Cutoff Freq High (MHz): 3500
  • Insertion Loss (dB): 3
  • Typical Rejection (dB): 50
  • Package: 4mm QFN
  • Bandwidth Low (MHz): 1000
  • Bandwidth High (MHz): 3000
  • # in Pack: 1
Specifications
  • Function: IF Bandpass Filter
  • Cutoff Freq Low (MHz): 2500
  • Cutoff Freq High (MHz): 3500
  • Insertion Loss (dB): 3
  • Typical Rejection (dB): 50
  • Package: 4mm QFN
  • Bandwidth Low (MHz): 1000
  • Bandwidth High (MHz): 3000
  • # in Pack: 1
