1 GHz IF Bandpass Filter, 500 MHz IBW
AM3232 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 1.0 GHz, 1.1 GHz, or 1.2 GHz and a bandwidth of 500 MHz, AM3232 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3232 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

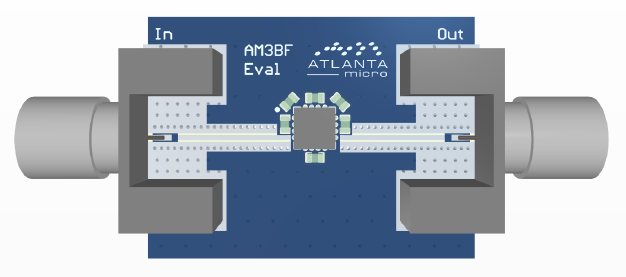

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3232.
