9 GHz Center IF Bandpass Filter, 1 GHz IBW

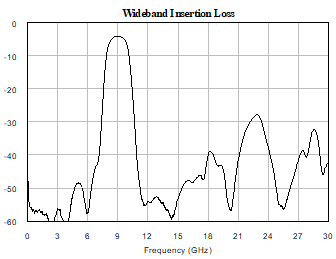

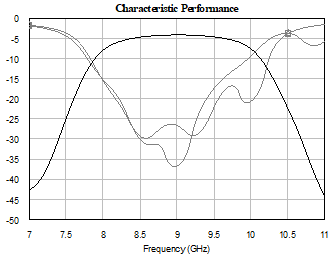

AM3230 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4mm package. With a center frequency of 9 GHz and a bandwidth of 1 GHz, AM3230 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3230 boasts low passband flatness in this range at less than 0.5dB making it perfect when used in multiple locations to minimize system passband flatness. AM3230 is AC coupled and matched to 50 oms and operates over the -40C to +100C temperature range.
Evaluation board includes connectors as shown.
4.2
Insertion Loss (dB)
55
Typical Rejection (dB)
4mm
Package
