AM3023B 100 MHz to 6 GHz Sub-Octave Filter Bank w/ Bypassable MMIC Filter

100 MHz to 6 GHz Sub-Octave Filter Bank w/ Bypassable Amplifier

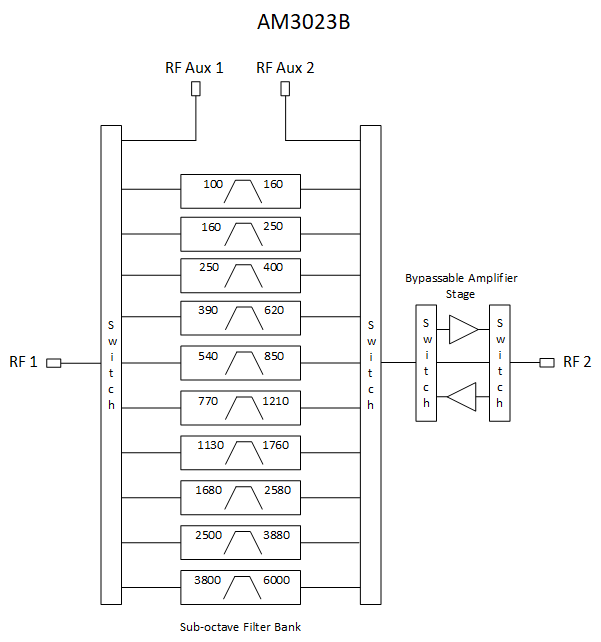

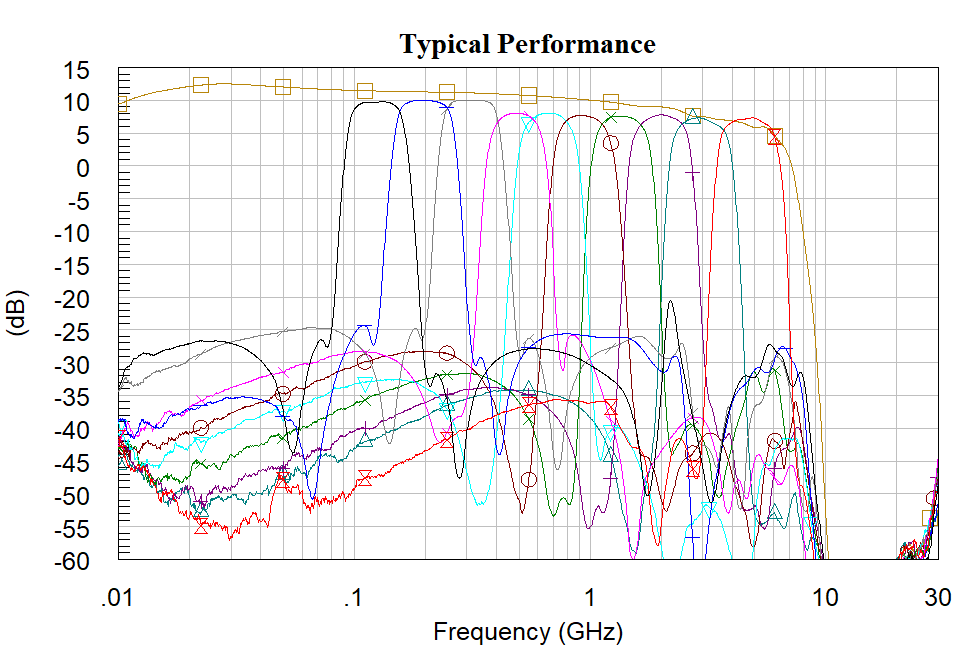

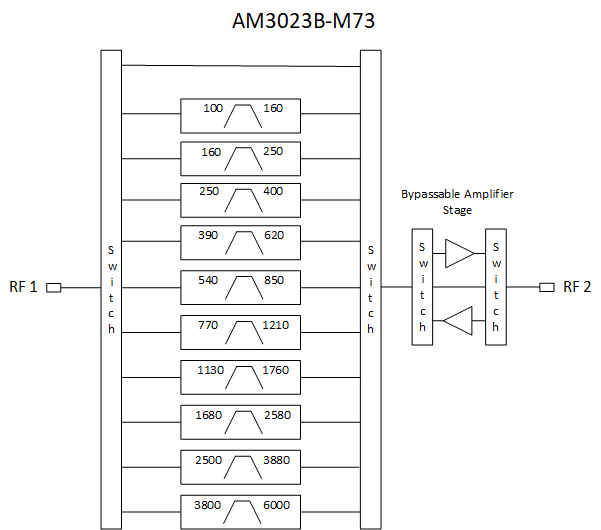

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

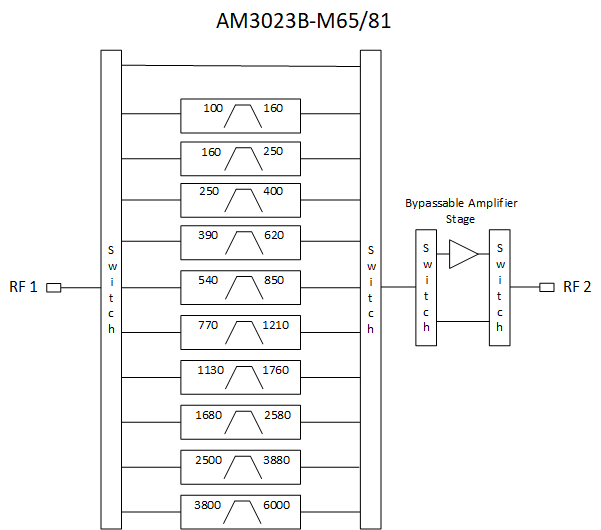

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

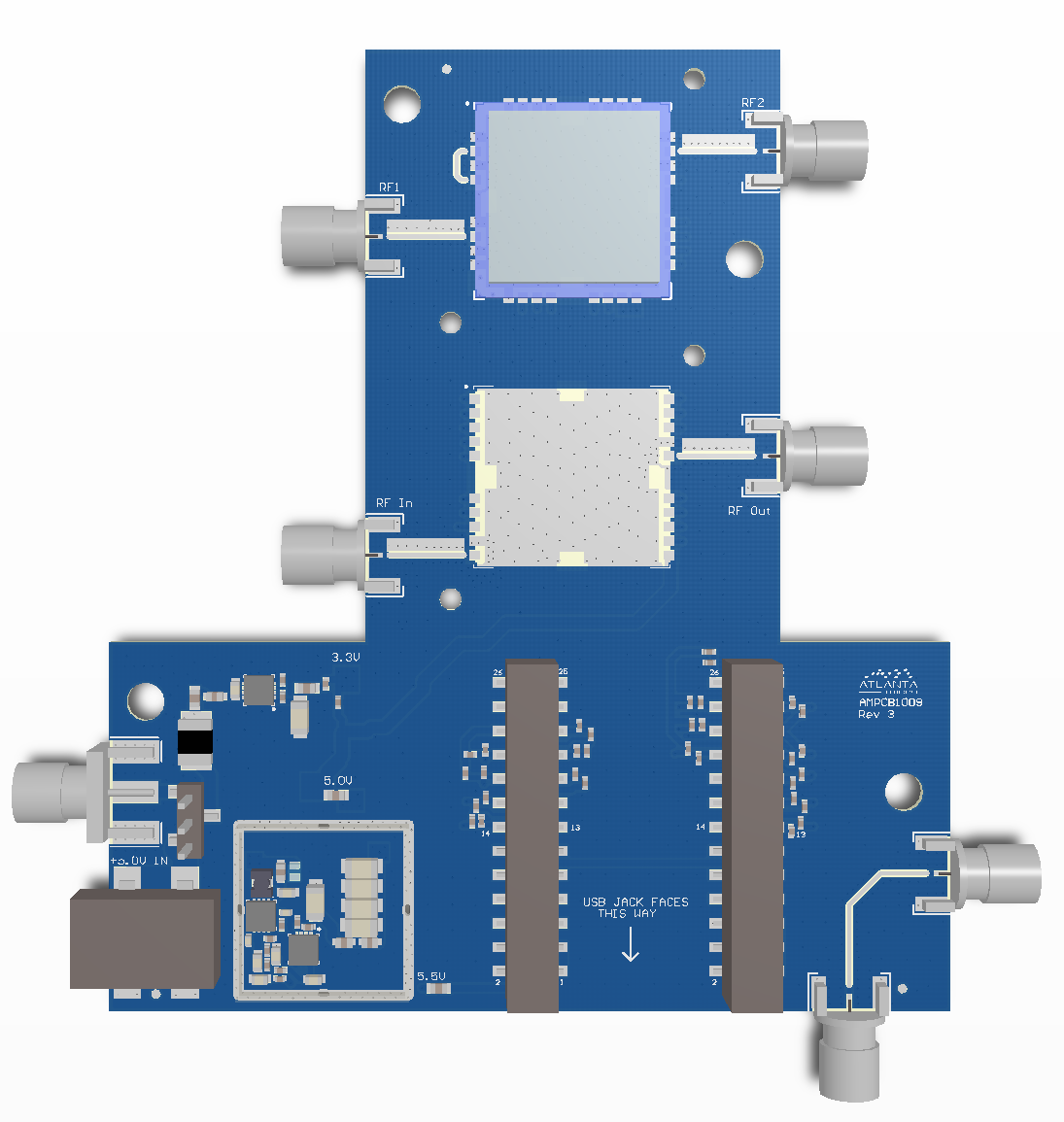

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3023B evaluation board requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3023B. The AM3023B evaluation board also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3023B device and a trace calibration path.

ASK A QUESTION


7
Insertion Loss (dB)
40
Typical Rejection (dB)
Features
  • Function: Sub-octave Filter Bank w/ Bypass Amp
  • Cutoff Freq Low (MHz): 100
  • Cutoff Freq High (MHz): 6000
  • Insertion Loss (dB): 7
  • Typical Rejection (dB): 40
  • Package: 20.5 x 20.5 x 3.30mm
  • Bandwidth Low (MHz): 60
  • Bandwidth High (MHz): 2200
  • Center Frequency: 130 to 4900
Specifications
  • Function: Sub-octave Filter Bank w/ Bypass Amp
  • Cutoff Freq Low (MHz): 100
  • Cutoff Freq High (MHz): 6000
  • Insertion Loss (dB): 7
  • Typical Rejection (dB): 40
  • Package: 20.5 x 20.5 x 3.30mm
  • Bandwidth Low (MHz): 60
  • Bandwidth High (MHz): 2200
  • Center Frequency: 130 to 4900
