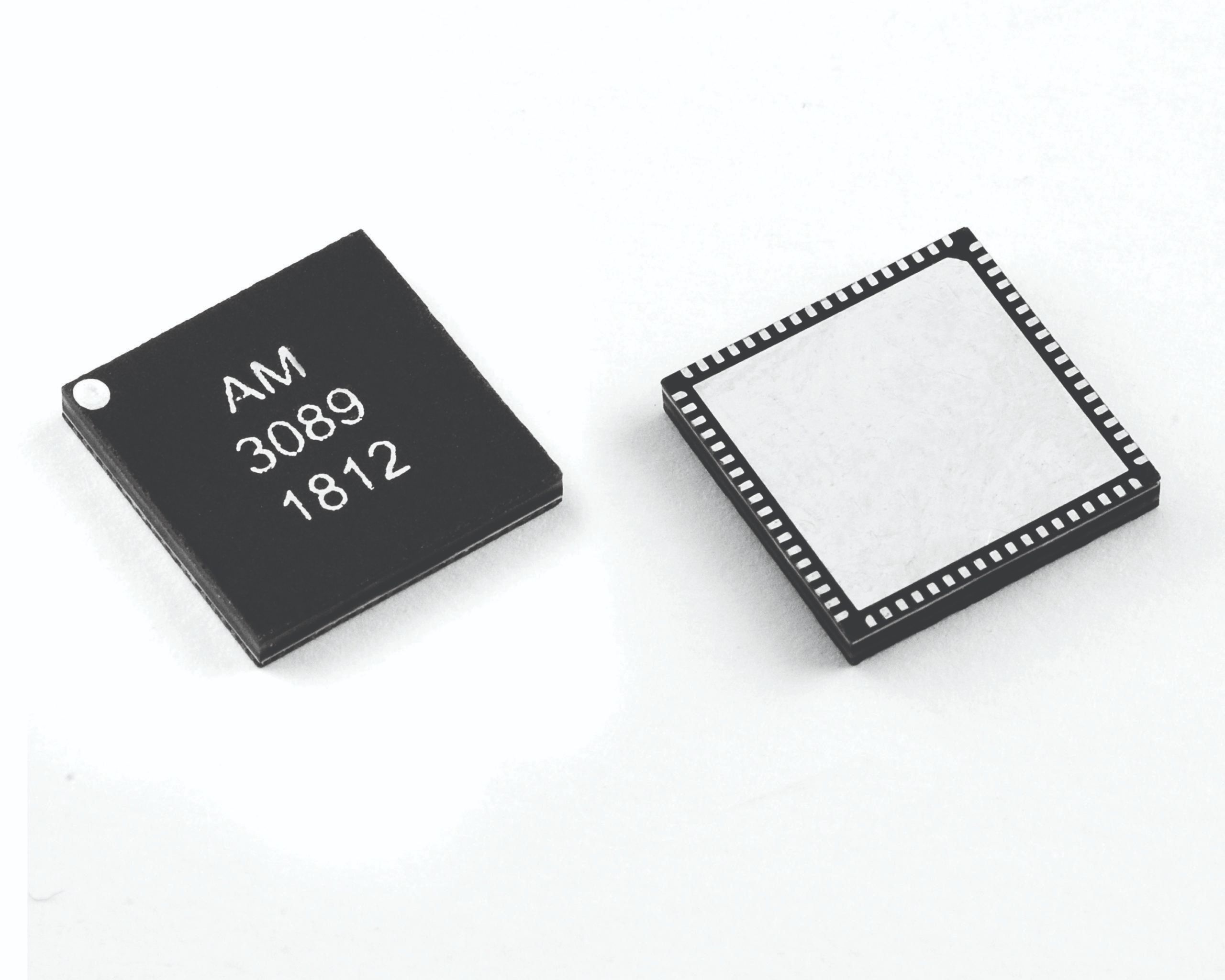

Analog Voltage Tunable 2.0 GHz to 18.0 GHz Bandpass Filter Bank

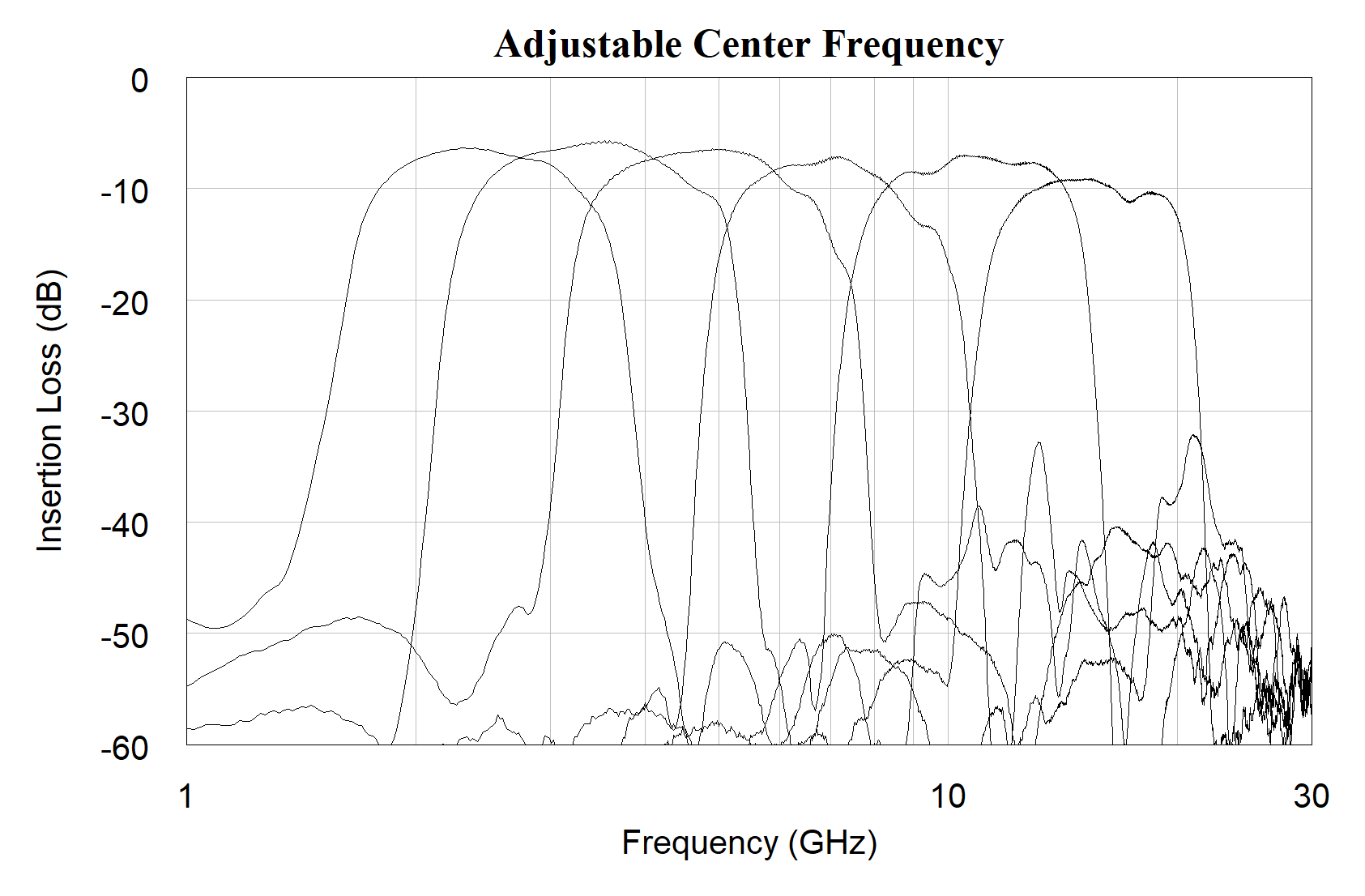

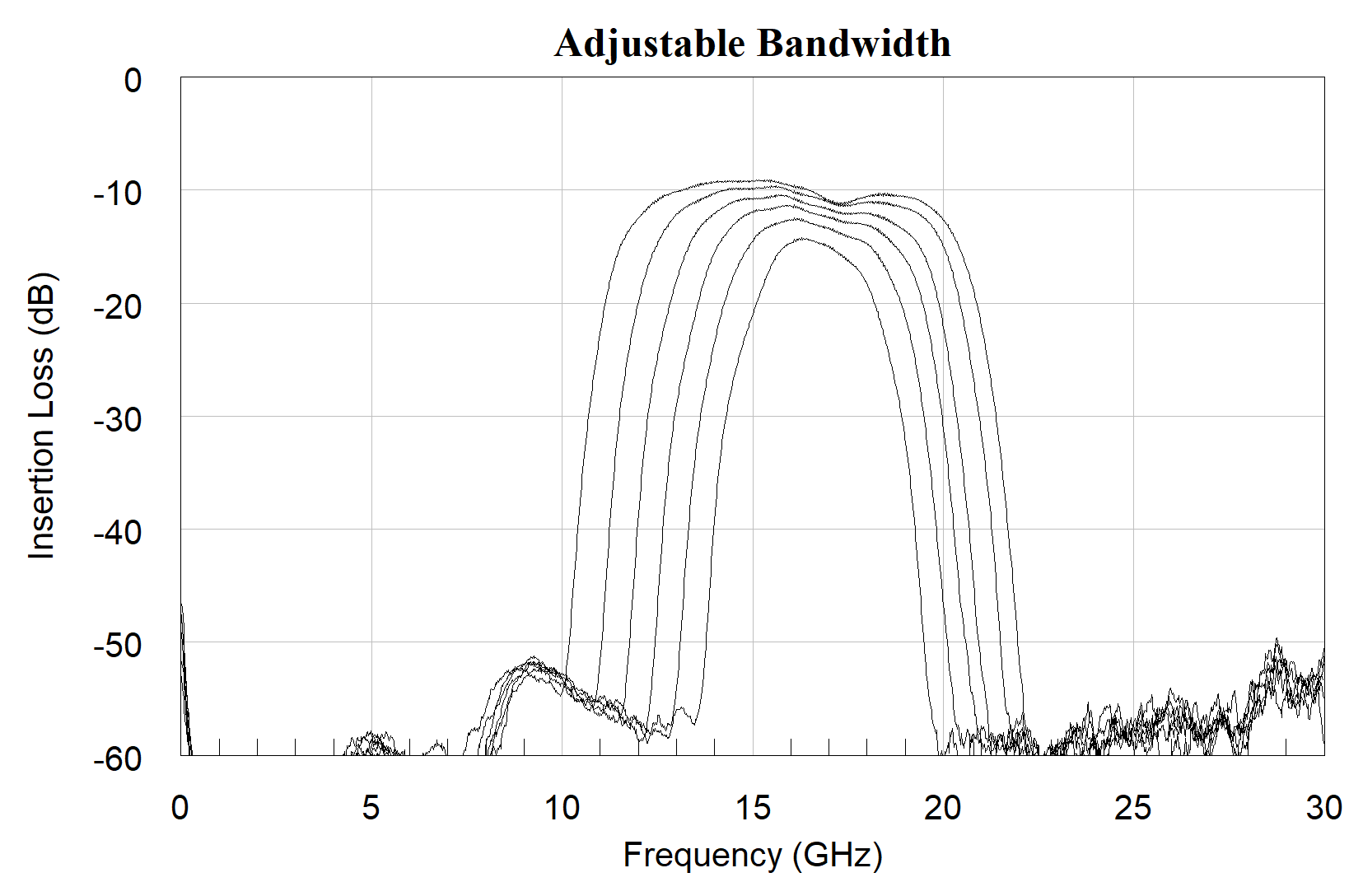

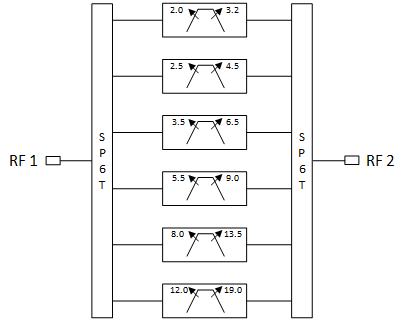

AM3089 is an analog voltage-tunable bandpass filter bank covering the 2.0 to 18.0 GHz frequency range. Six bandpass filters with SP6T switches on the input and output are contained in the multi-chip module (MCM). Separate low-pass and high-pass tuning voltages provide independent control of both center frequency and bandwidth.
The AM3089 is one in a family of analog voltage-tunable bandpass filters offered from Mercury that cover the 2.0 GHz to 18.0 GHz frequency range. In this family there is the AM3134 that covers 2.0 to 3.2 GHz and 2.5 to 4.5 GHz, the AM3135 that covers 3.5 to 6.5 GHz and 5.5 to 9.0 GHz, and the AM3136 that covers 8.0 to 13.5 GHz and 12.0 to 19.0 GHz.
This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth control, high dynamic range, small size and weight, and low power consumption.

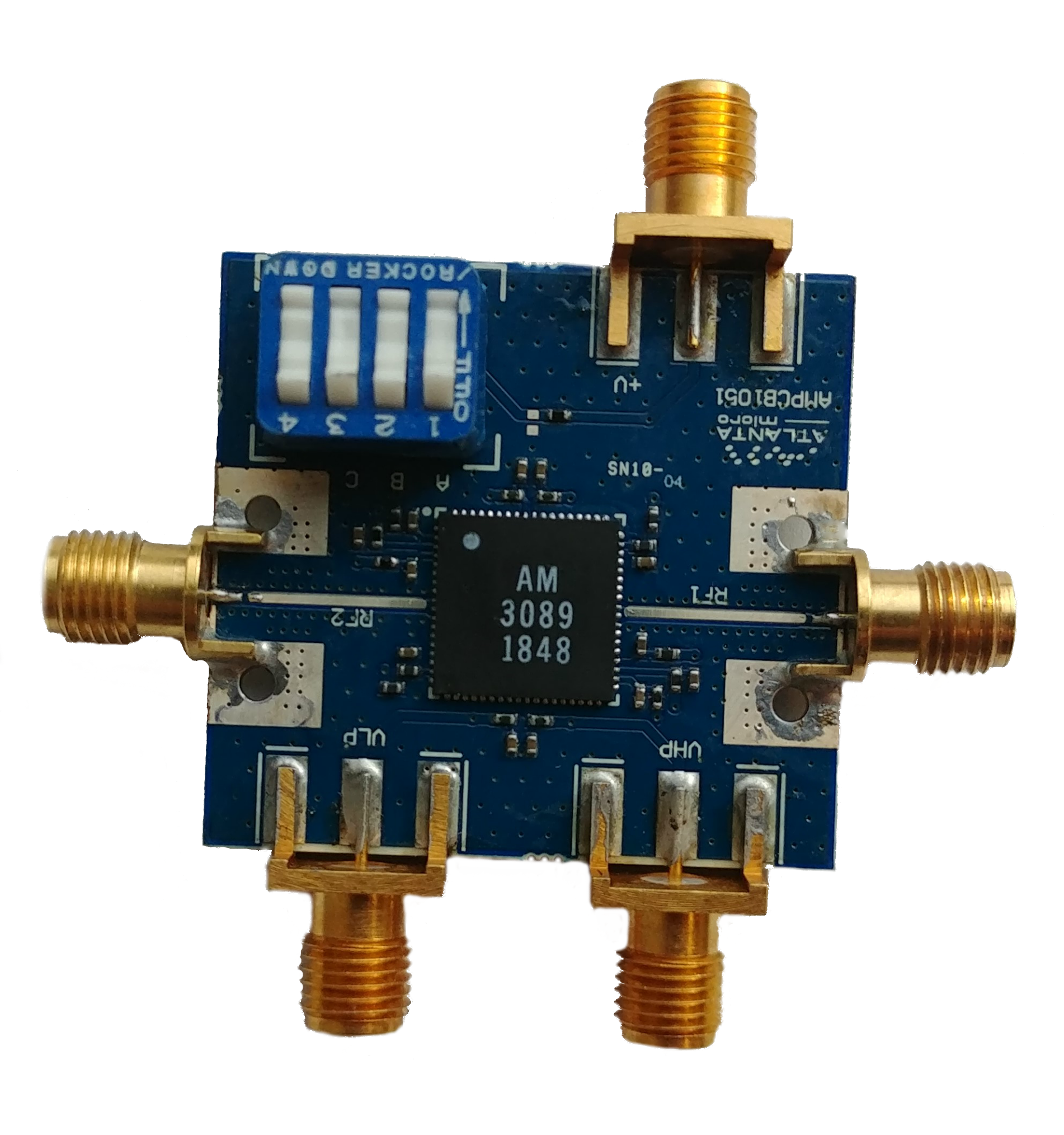

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3089 evaluation board also includes DIP switch for control of the filter band settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3089.
8
Insertion Loss (dB)
40
Typical Rejection (dB)
10mm
Package
Products formerly Atlanta Microwave
