AM3215 2 GHz to 18 GHz Bandpass Preselector MMIC Filter

2 GHz to 18 GHz Bandpass Preselector Filter Bank

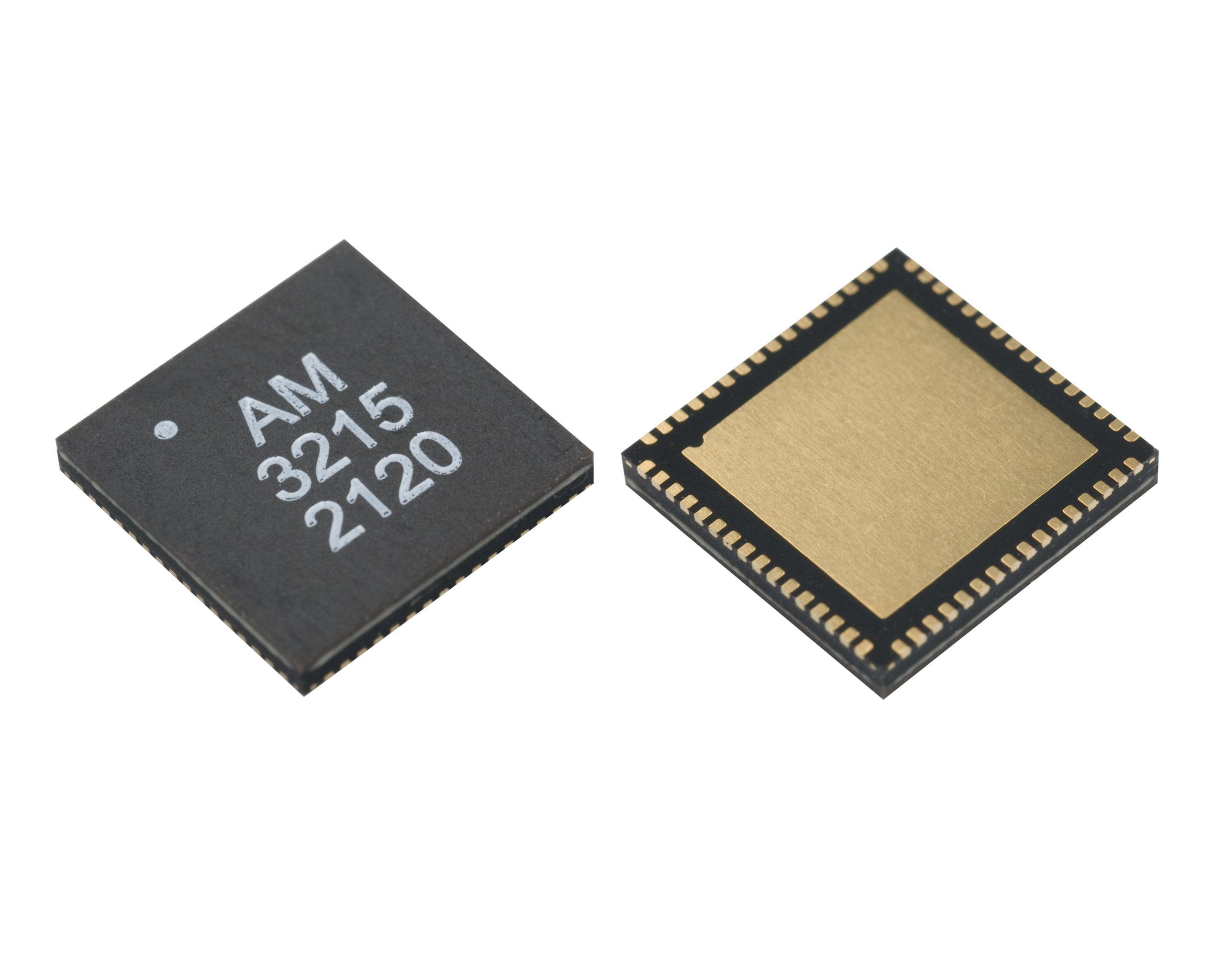

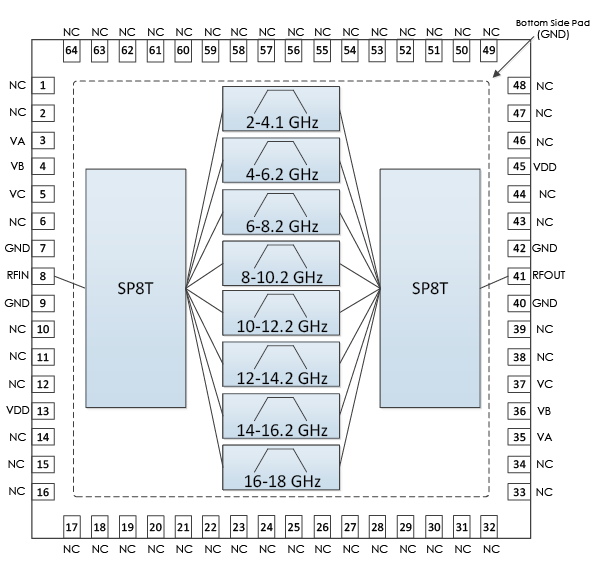

AM3215 is a broadband eight-way bandpass filter bank offering low loss and high rejection from 2 GHz to 18 GHz. Each band delivers 2 GHz of bandwidth. With internal 50Ω matching and packaged in a 9mm QFN, the AM3215 represents a compact total PCB footprint, the AM3215 is suited for low SWaP applications.

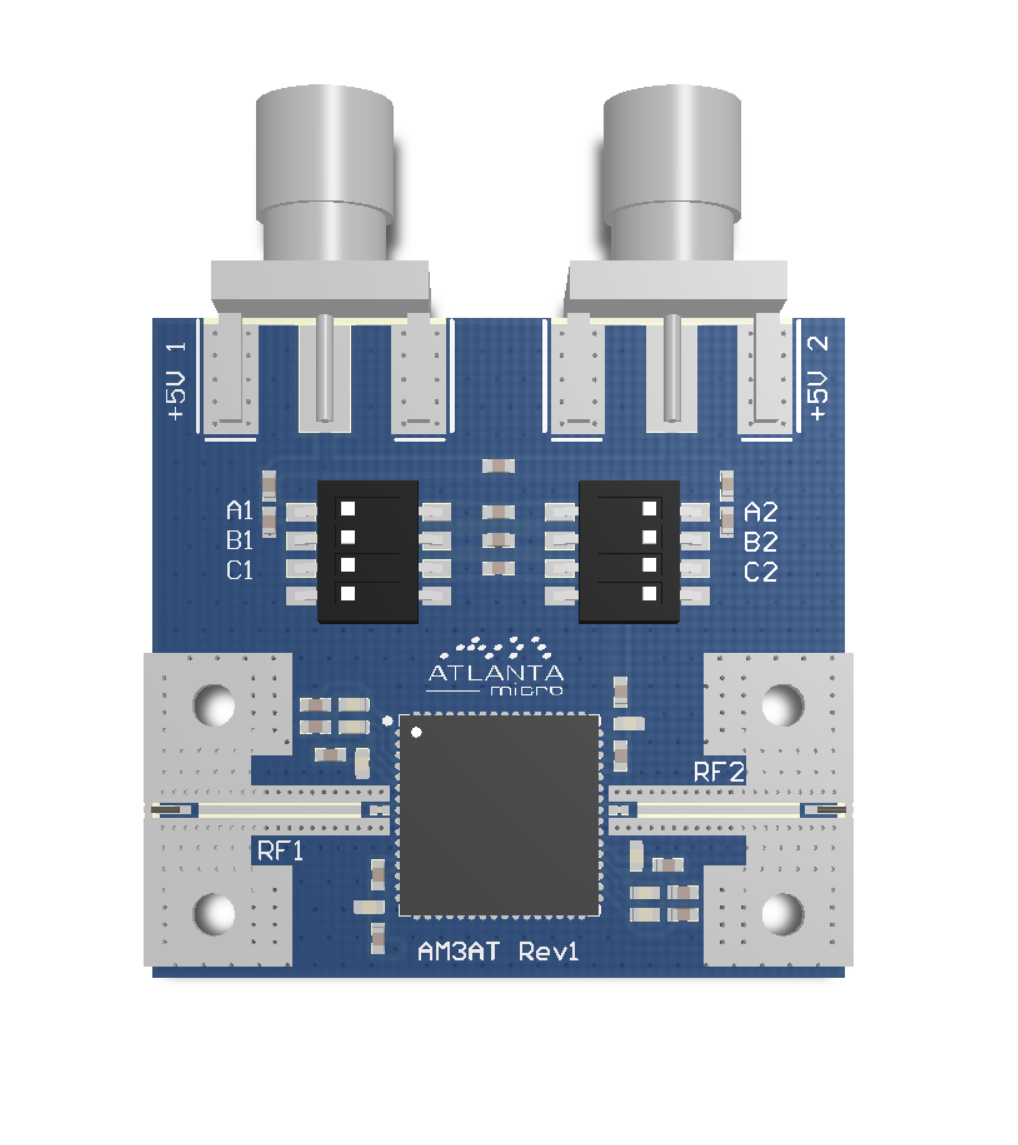

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3215 evaluation board also includes DIP switch for control of the filter band settings. Evaluation board includes AM3215.

ASK A QUESTION


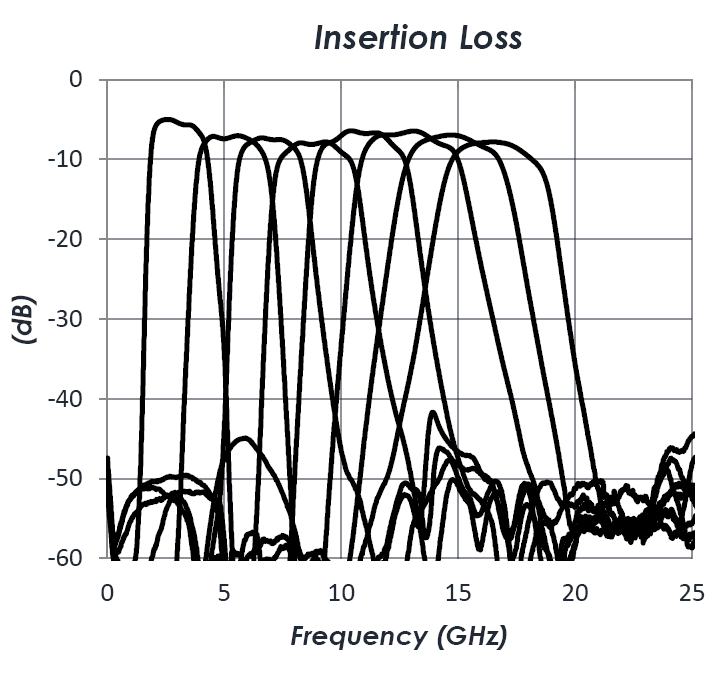

7.5
Insertion Loss (dB)
50
Typical Rejection (dB)
9mm
Package
Features
  • Function: Preselector Filter Bank
  • Cutoff Freq Low (MHz): 2000
  • Cutoff Freq High (MHz): 18000
  • Insertion Loss (dB): 7.5
  • Typical Rejection (dB): 50
  • Package: 9mm QFN
  • Bandwidth Low (MHz): 2000
  • Bandwidth High (MHz): 2000
  • # in Pack: 8
  • Center Freq High (MHz): 17000
  • Center Freq Low (MHz): 3000
Specifications
  • Function: Preselector Filter Bank
  • Cutoff Freq Low (MHz): 2000
  • Cutoff Freq High (MHz): 18000
  • Insertion Loss (dB): 7.5
  • Typical Rejection (dB): 50
  • Package: 9mm QFN
  • Bandwidth Low (MHz): 2000
  • Bandwidth High (MHz): 2000
  • # in Pack: 8
  • Center Freq High (MHz): 17000
  • Center Freq Low (MHz): 3000
