AM3231 2 GHz IF Bandpass Filter, 1 GHz IBW

2 GHz IF Bandpass Filter, 1 GHz IBW

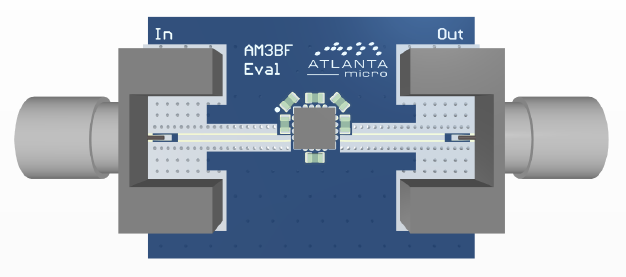

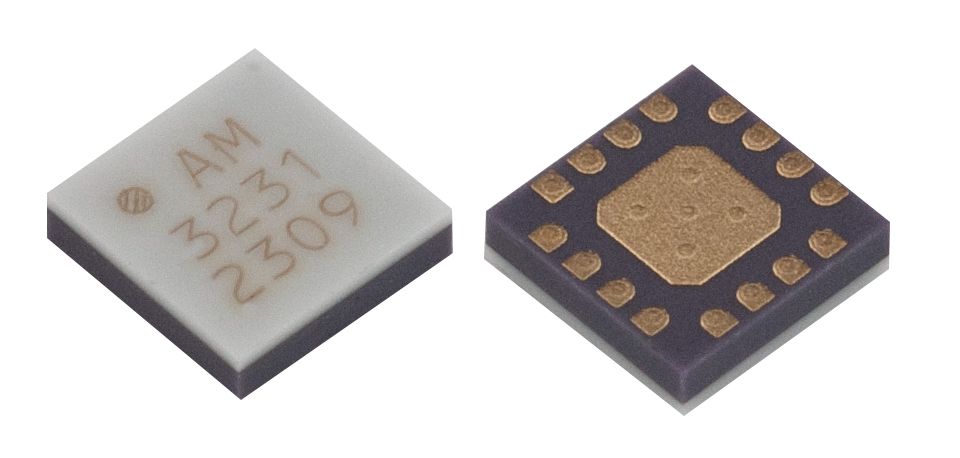

AM3231 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 2.0 GHz, 1.9 GHz, or 1.8 GHz and a bandwidth of 1 GHz, AM3231 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3231 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

ASK A QUESTION


2.2
Insertion Loss (dB)
40
Typical Rejection (dB)
3mm
Package
Features
  • Function: IF Bandpass Filter
  • Cutoff Freq Low (MHz): 1500
  • Cutoff Freq High (MHz): 2500
  • Insertion Loss (dB): 2.2
  • Typical Rejection (dB): 40
  • Package: 3mm QFN
  • Bandwidth Low (MHz): 1000
  • Center Frequency: 2000
  • # in Pack: 1
Specifications
  • Function: IF Bandpass Filter
  • Cutoff Freq Low (MHz): 1500
  • Cutoff Freq High (MHz): 2500
  • Insertion Loss (dB): 2.2
  • Typical Rejection (dB): 40
  • Package: 3mm QFN
  • Bandwidth Low (MHz): 1000
  • Center Frequency: 2000
  • # in Pack: 1
