Digitally Tunable 6.5 GHz to 17.0 GHz Band Pass Filter
AM3043 is a miniature digitally tunable bandpass filter covering the 6.5 to 17.0 GHz frequency range. The filter provides 32 discrete tunable steps with 5 digital control bits. AM3043 is packaged in a 3mm QFN package and operates over the -40C to +85C temperature range.

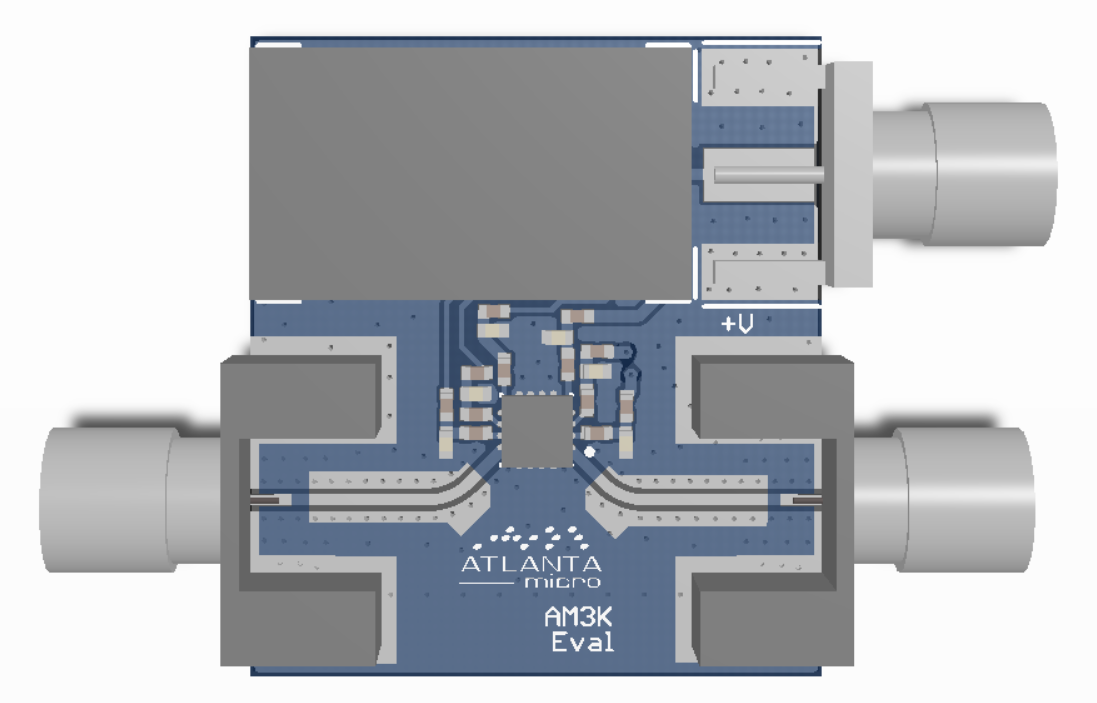

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3043 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3043.
6
Insertion Loss (dB)
35
Typical Rejection (dB)
3mm
Package
