Analog Tunable 11 to 15.5 GHz Notch Filter Bank

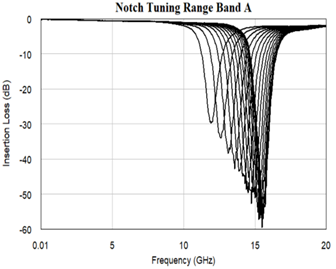

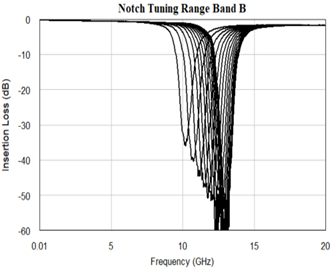

AM3167 is an analog voltage-tunable notch filter bank covering the 11 GHz to 15.5 GHz frequency range. The device offers two bands from 11 GHz to 13 GHz and 13 GHz to 15.5 GHz for continuous notch frequency within its operating range. Only one tune voltage input is required providing simple and precise control of the notch frequency. The AM3167 provides an excellent solution for receiver or transceiver designs requiring flexible frequency rejection, high dynamic range, low insertion loss, and small size, and power consumption (low SWaP).
1
Insertion Loss (dB)
40
Typical Rejection (dB)

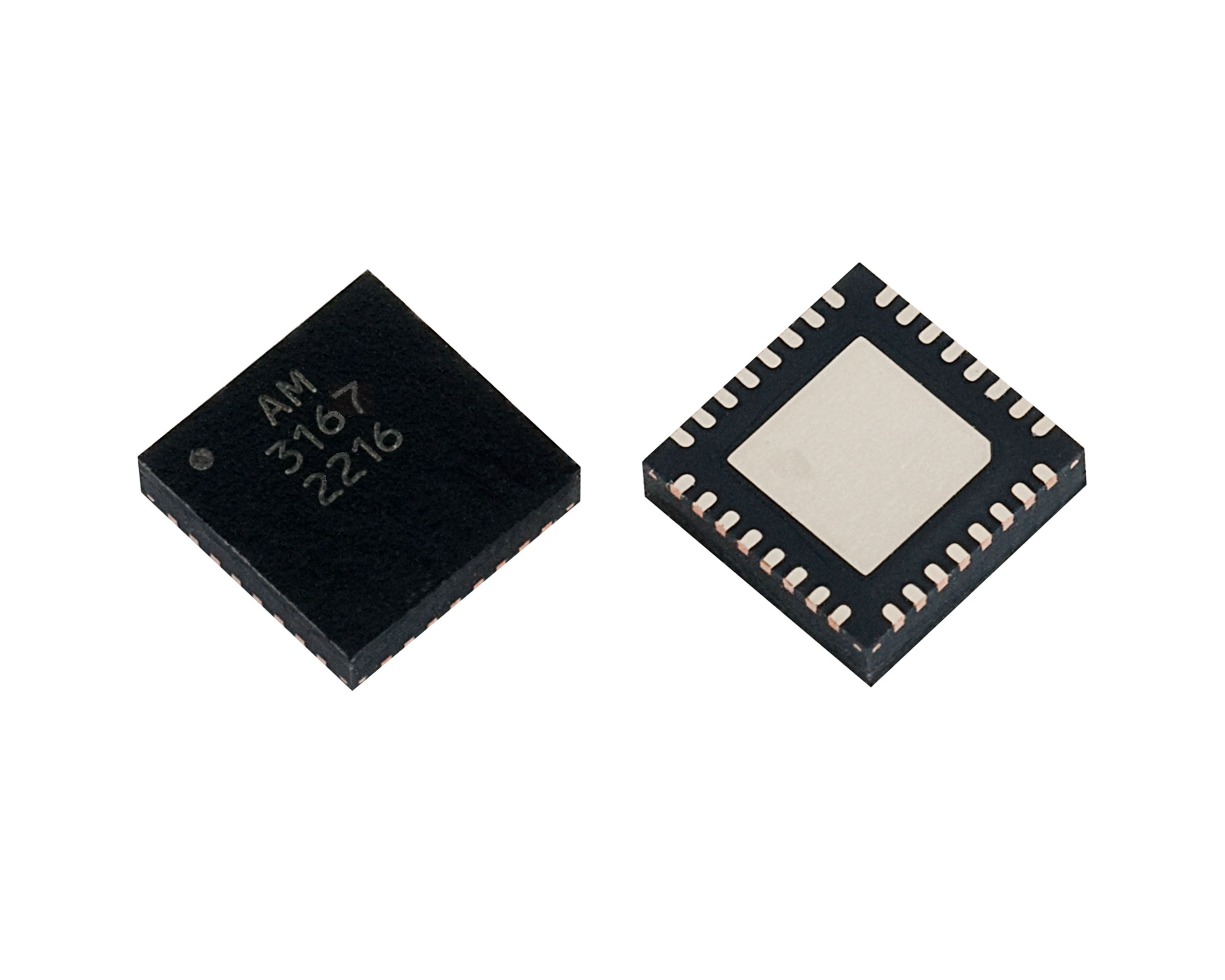

5mm
Package
Products formerly Atlanta Microwave
Purpose-Built MMIC Components
Enable Portable Platforms
Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
