AM3025A 400 MHz to 6 GHz Sub-Octave MMIC Filter Bank

400 MHz to 6 GHz Sub-Octave Filter Bank

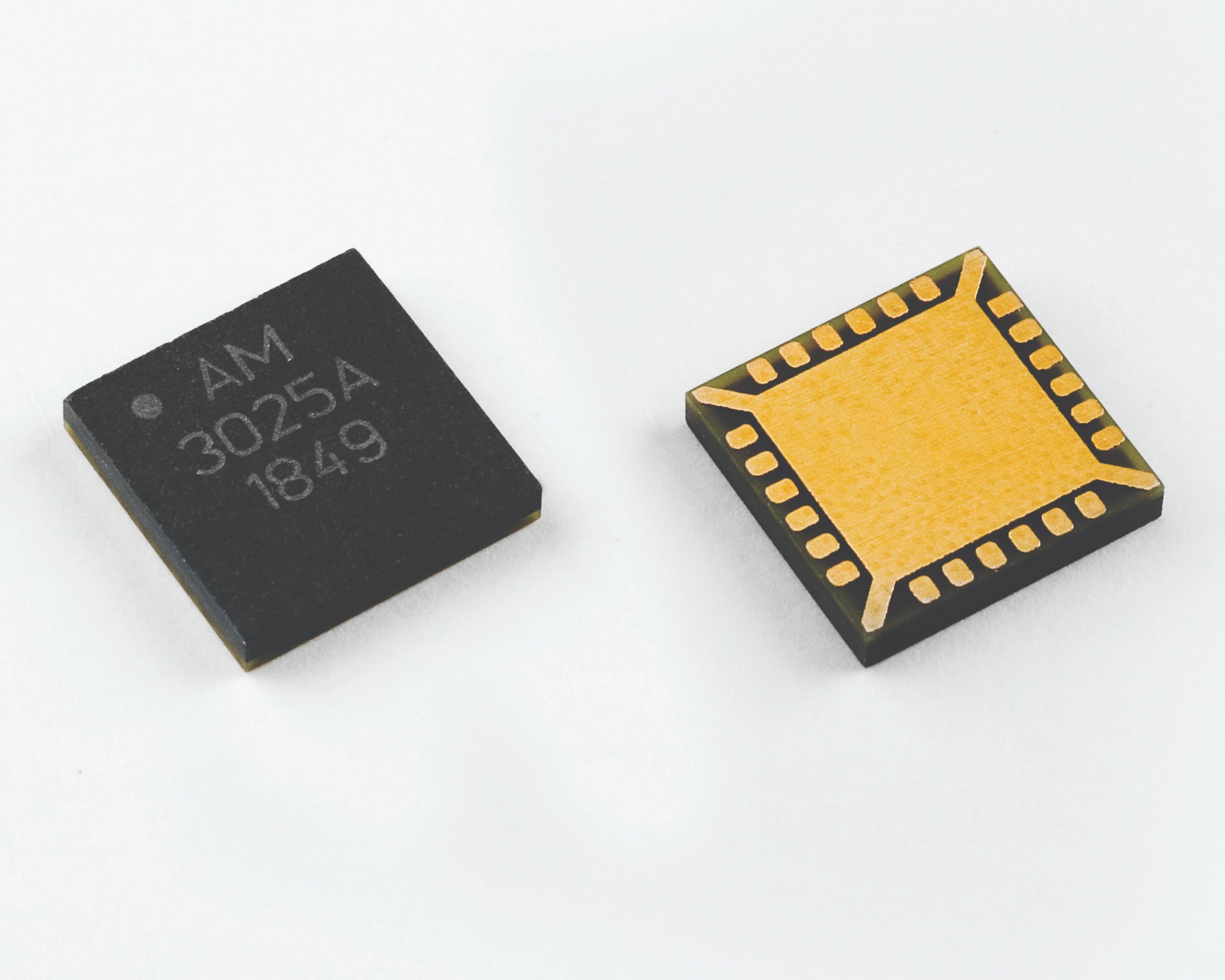

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

The AM3025A is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3025A-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications.

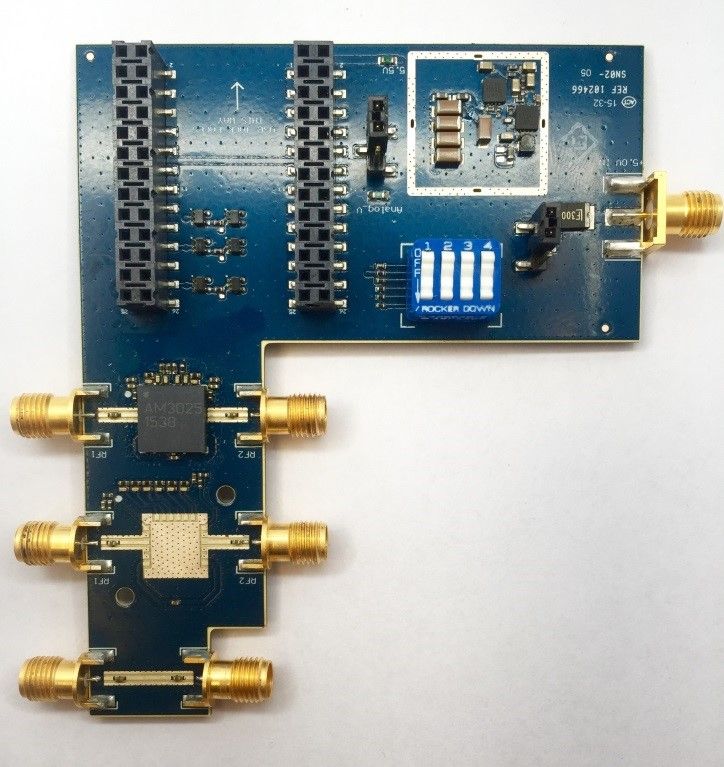

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3025A evaluation board also includes DIP switch for control of the filter band settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3025A device and a trace calibration path.
