AM3025A-M 400 MHz to 6 GHz Sub-Octave MMIC Filter Bank

400 MHz to 6 GHz Sub-Octave Filter Bank

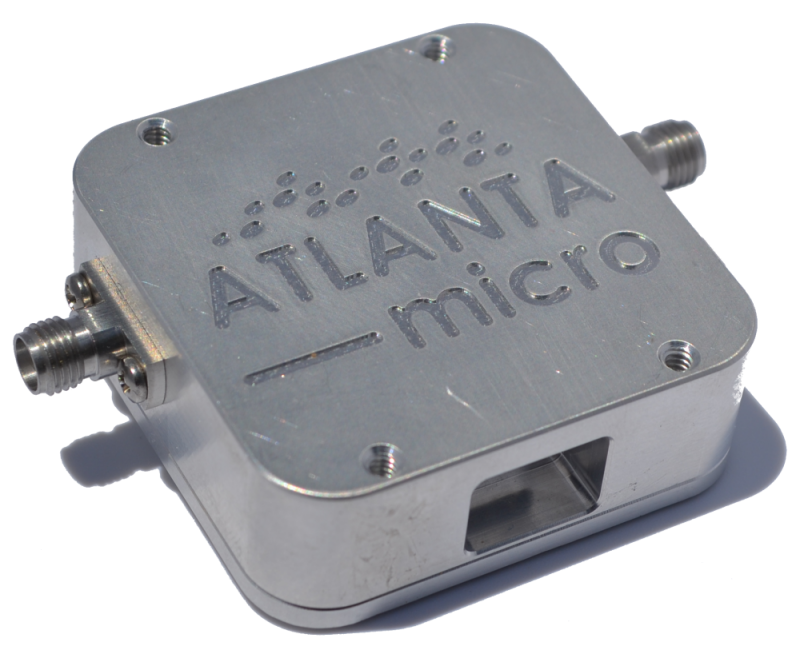

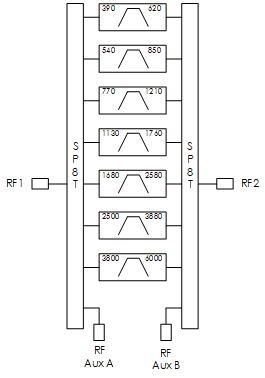

AM3025A-M is a RF-shielded module with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 1.85″ x 1.85″ x 0.65″ aluminum housing. The device provides a filter bypass path and supports both transmit and receive applications. The AM3025A-M includes field replaceable SMA connectors and power/control over USB.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

AM3025A-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3025A. The AM3025A evaluation board also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3025A-M without the GUI via sending commands over USB available upon request.

The AM3025A is also available as a standalone 9mm 24 Lead QFN.

ASK A QUESTION


6

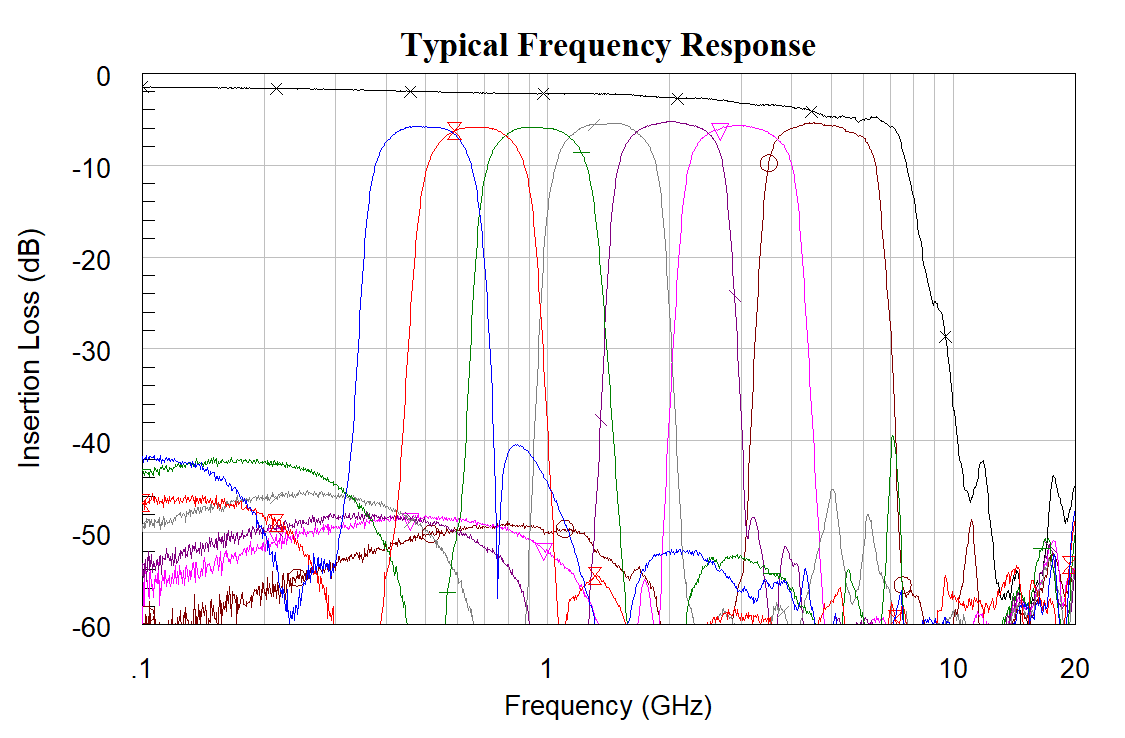

Insertion Loss (dB)
40
Typical Rejection (dB)
1.85''
Package
Features
  • Function: Digitally Sub-octave Filter Bank
  • Cutoff Freq Low (MHz): 400
  • Cutoff Freq High (MHz): 6000
  • Insertion Loss (dB): 6
  • Typical Rejection (dB): 40
  • Package: 1.85'' x 1.85'' QFN
  • Bandwidth Low (MHz): 230
  • Bandwidth High (MHz): 2200
  • Center Frequency: Variable
  • # in Pack: 7 + Bypass
Specifications
  • Function: Digitally Sub-octave Filter Bank
  • Cutoff Freq Low (MHz): 400
  • Cutoff Freq High (MHz): 6000
  • Insertion Loss (dB): 6
  • Typical Rejection (dB): 40
  • Package: 1.85'' x 1.85'' QFN
  • Bandwidth Low (MHz): 230
  • Bandwidth High (MHz): 2200
  • Center Frequency: Variable
  • # in Pack: 7 + Bypass
