AM3046
7 GHz Lowpass Filter
Function:
Filter
Package:
4mm QFN ECCN:

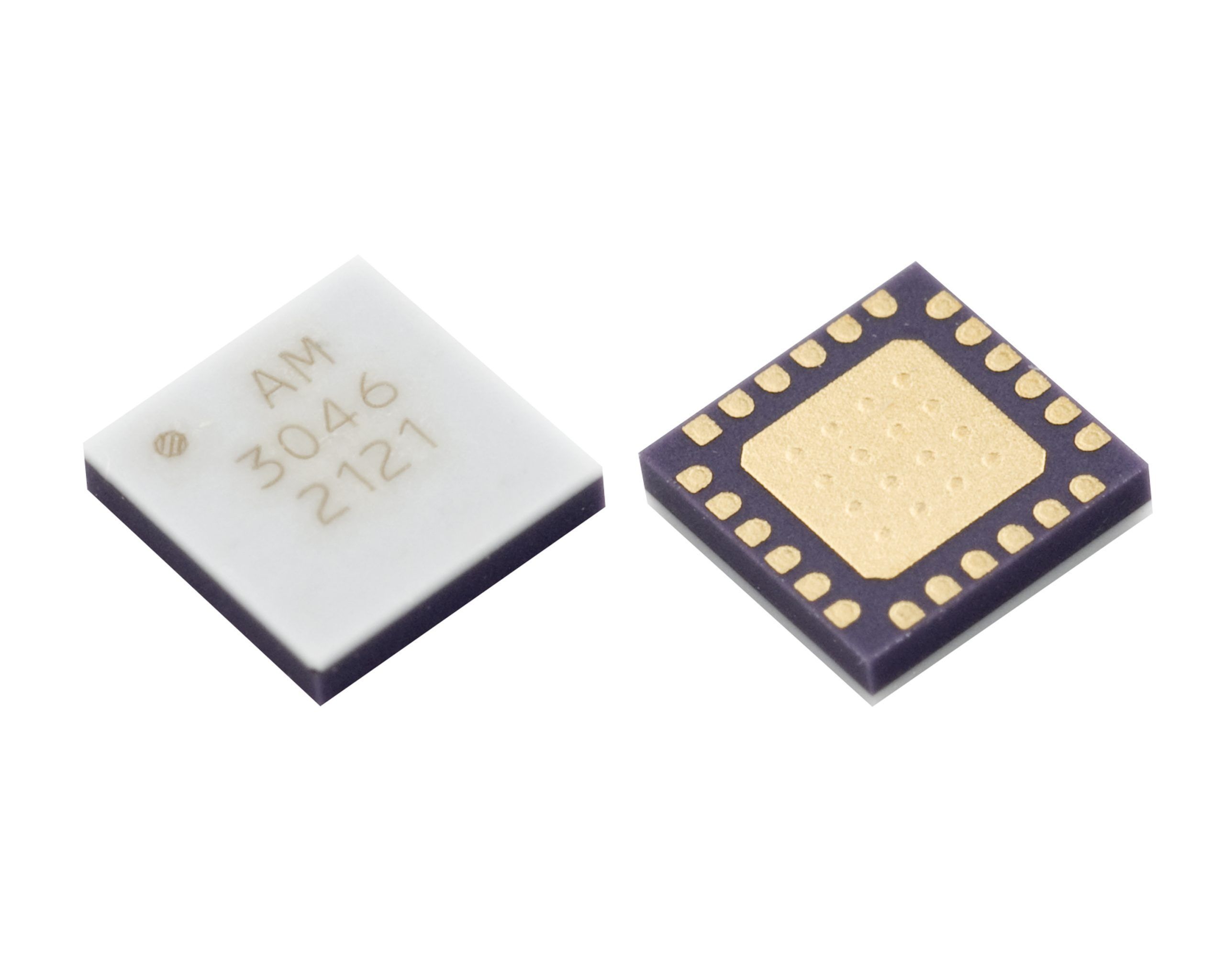

EAR99 AM3046 is a passive lowpass filter implemented on chip that provides low loss and high rejection in a small 4mm package.

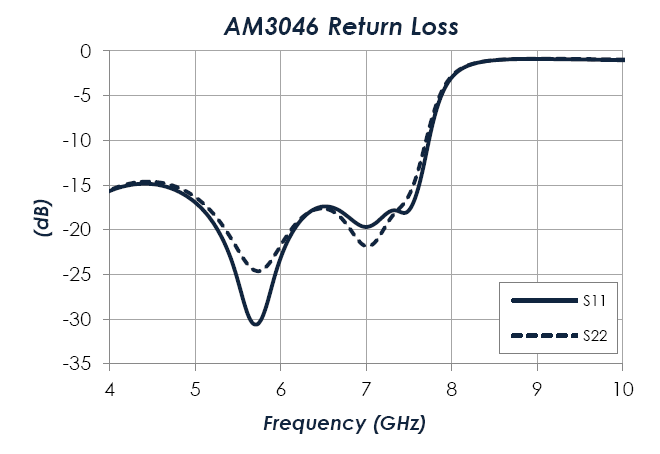

With a cutoff frequency of 7 GHz and stopband rejection of >50 dBc to 20 GHz, AM3046 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3046 is matched to 50 ohms and operates from -40C to +100C.
Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3046.
1

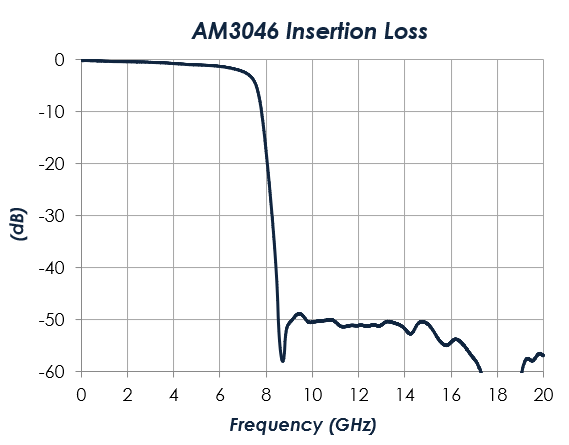

Insertion Loss (dB)
50
Typical Rejection (dB)
4mm
Package
