AM3056 1 GHz IF Bandpass MMIC Filter

1 GHz IF Bandpass Filter

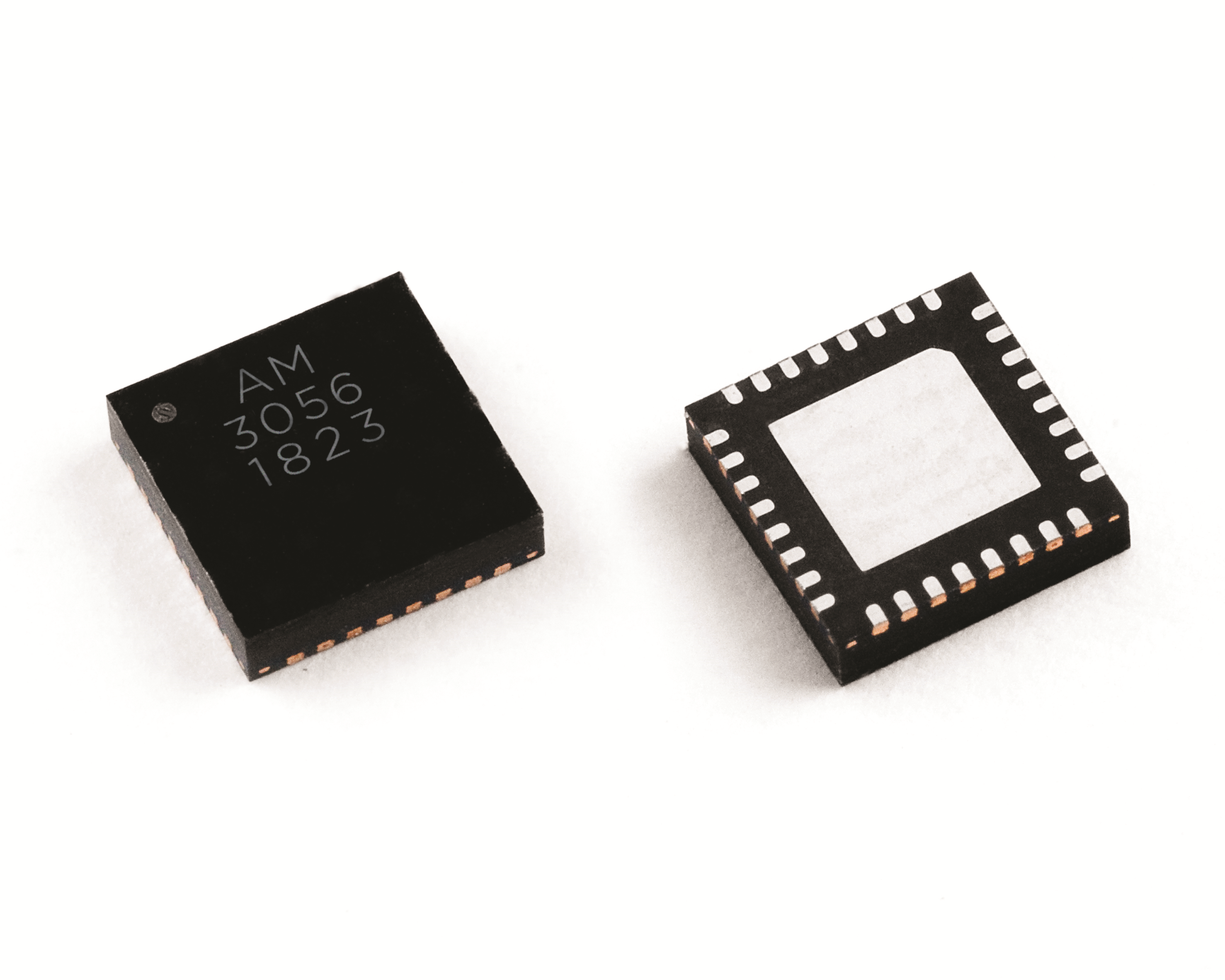

AM3056 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 5mm package. With a center frequency of 1 GHz and a bandwidth of 500 MHz, AM3056 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3056 is AC coupled and matched to 50 oms and operates over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3056.

For a smaller form factor view our latest IF filter AM3232!

ASK A QUESTION


2

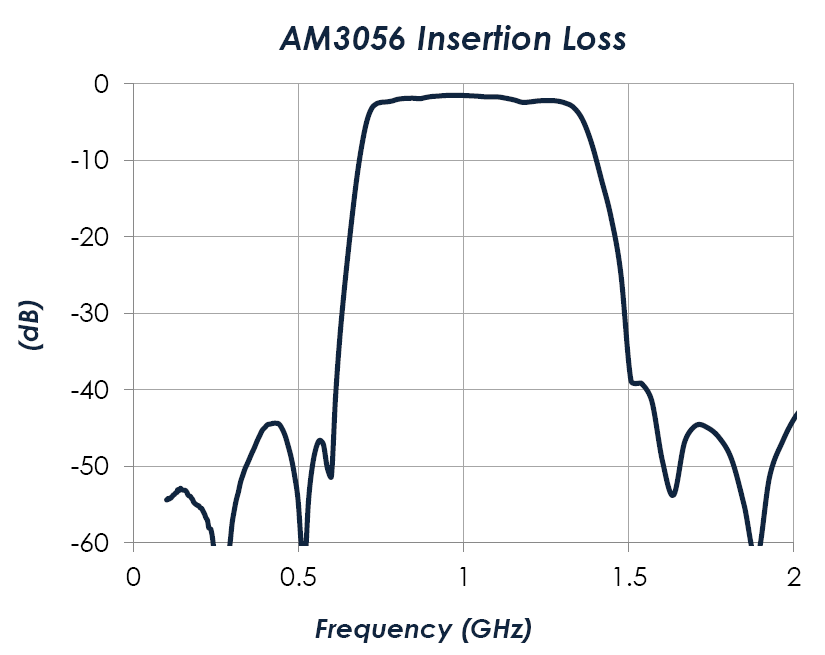

Insertion Loss (dB)
50
Typical Rejection (dB)
5mm
Package
Features
  • Function: IF Bandpass Filter
  • Cutoff Freq Low (MHz): 750
  • Cutoff Freq High (MHz): 1250
  • Insertion Loss (dB): 2
  • Typical Rejection (dB): 50
  • Package: 5mm QFN
  • Bandwidth Low (MHz): 500
  • Center Frequency: 1000
  • # in Pack: 1
Specifications
  • Function: IF Bandpass Filter
  • Cutoff Freq Low (MHz): 750
  • Cutoff Freq High (MHz): 1250
  • Insertion Loss (dB): 2
  • Typical Rejection (dB): 50
  • Package: 5mm QFN
  • Bandwidth Low (MHz): 500
  • Center Frequency: 1000
  • # in Pack: 1
