AM3172-M Digitally Tunable 20 MHz to 8 GHz Bandpass MMIC Filter

20 MHz to 8 GHz Digitally Tunable Bandpass

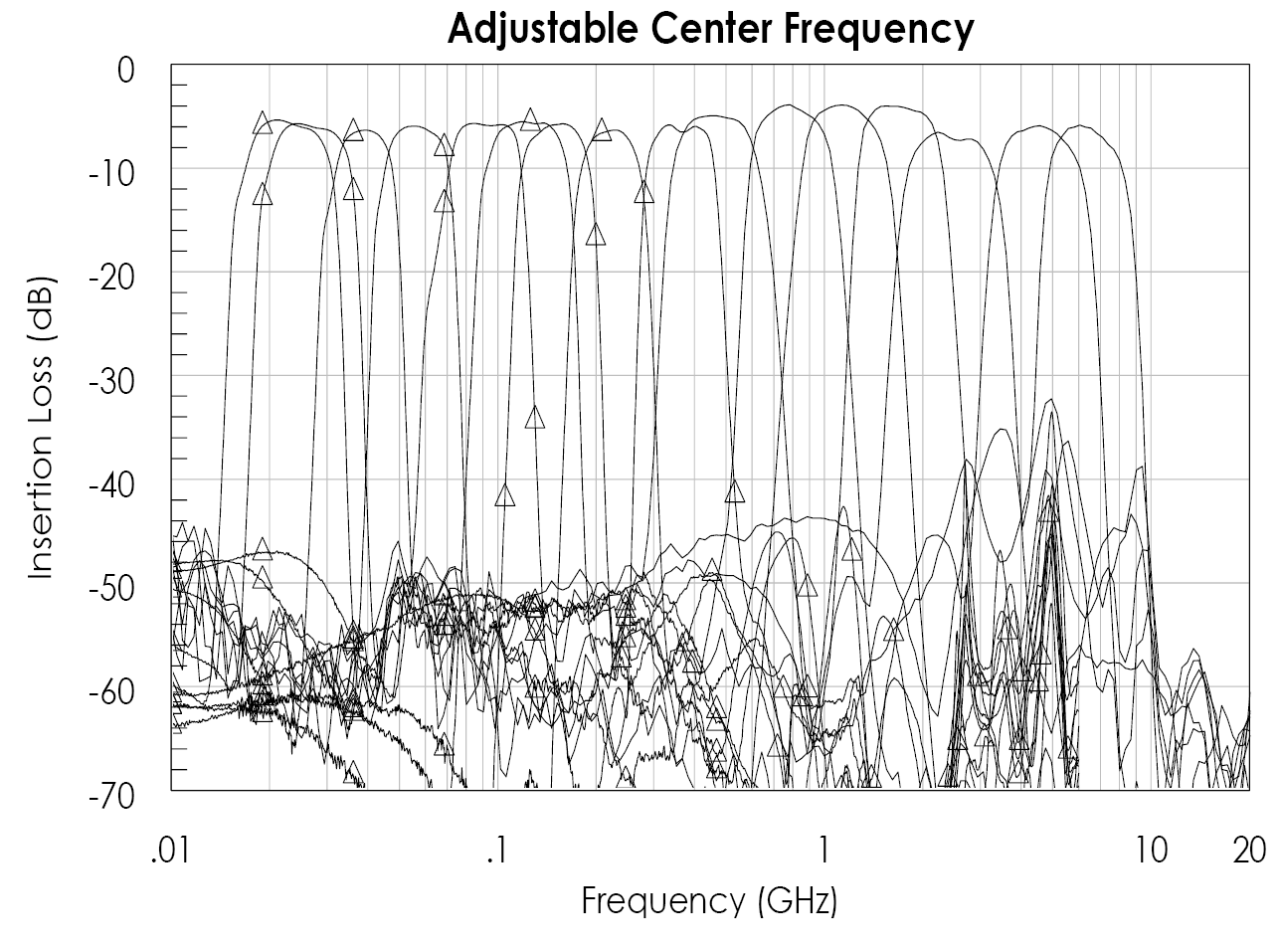

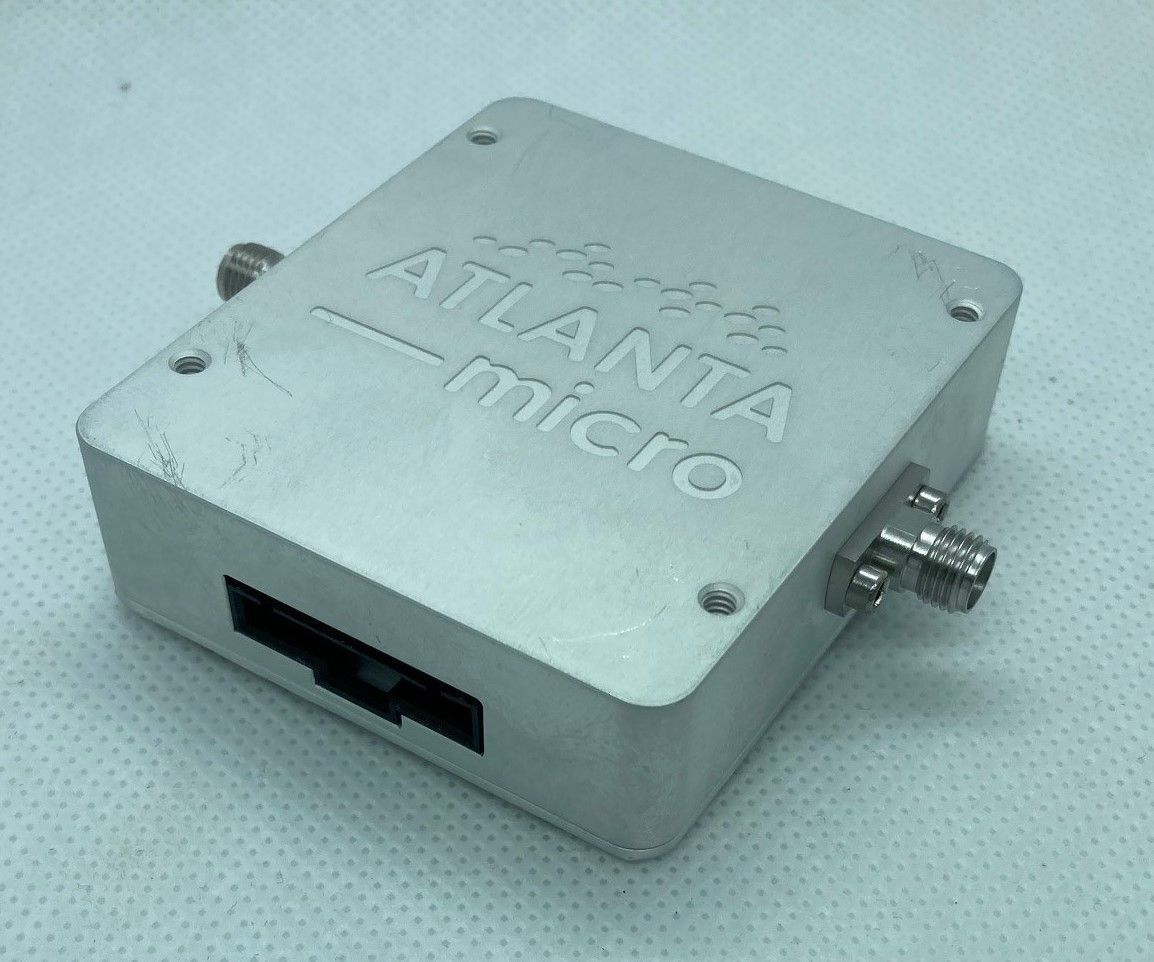

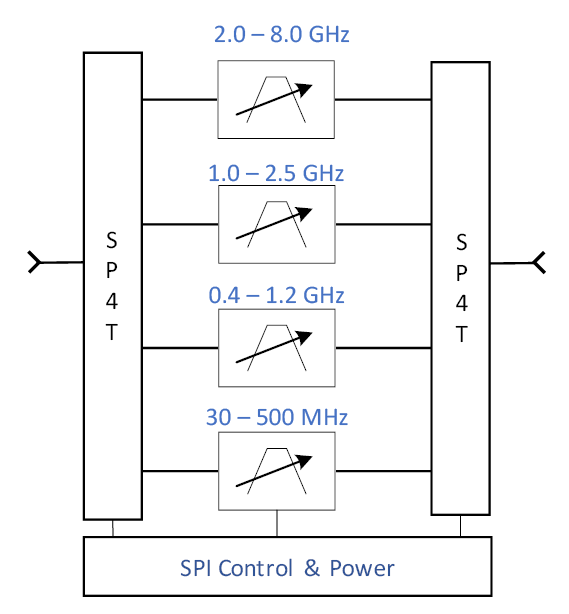

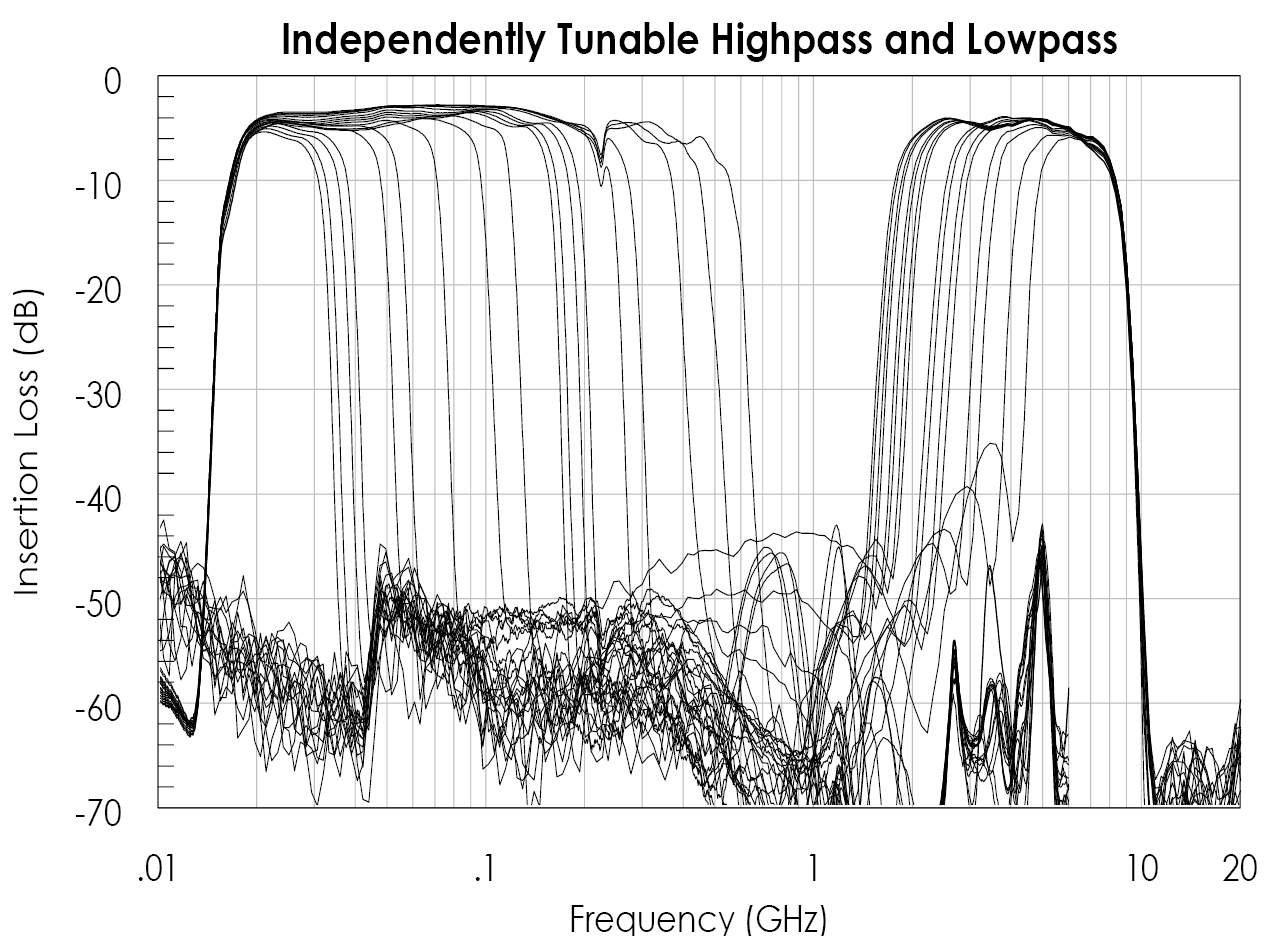

AM3172 is a tunable bandpass filter module covering 20 MHz to 8 GHz. The device contains the AM3150, AM3151, and AM3156 digitally tunable filter components in a connectorized, shielded module.  Control interface is a 3-wire SPI (serial peripheral interface).  The AM3172 is an excellent front-end preselector for a receiver, providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth.

ASK A QUESTION


5
Insertion Loss (dB)
60
Typical Rejection (dB)
2.4'' x 2.1''
Module Package
Features
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 20
  • Cutoff Freq High (MHz): 8000
  • Insertion Loss (dB): 5
  • Typical Rejection (dB): 60
  • Package: 2.4'' x 2.1'' Module
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • # in Pack: 4
Specifications
  • Function: Digitally Tunable Bandpass
  • Cutoff Freq Low (MHz): 20
  • Cutoff Freq High (MHz): 8000
  • Insertion Loss (dB): 5
  • Typical Rejection (dB): 60
  • Package: 2.4'' x 2.1'' Module
  • Bandwidth Low (MHz): Adjustable
  • Bandwidth High (MHz): Adjustable
  • # in Pack: 4
