EEPROM

Our military-grade EEPROM devices are engineered to perform in the harshest environments. Designed to Standard Microcircuit Drawing (SMD) program requirements, these ceramic and hermetic devices operate over extended military temperatures. The high-density devices are available in up to 8MB capacities. Can't find your memory solution here?  Email us directly

All products are available in commercial (C), industrial (I), and military (M) temperature grades.

 EEPROM
SizeOrganizationPart NumberData Rate (ns)Voltage (V)PackageDimensionsSMD No.Brochure
1Mb 128Kx8 WME128K8-XCX 125-300 32 pin, DIP (package 300) 42.2mm x 15.04mm  5962-96796 Download
1Mb 128Kx8 WME128K8-XDEX 125-300 5 32 lead, CSOJ (package 101) 21.1mm x 10.92mm  5962-96796 Download
1Mb 128Kx8 WE128K8-XCX 150-300 5 32 pin, DIP (package 300) 42.2mm x 15.25mm  5962-93091  Email
2Mb 256Kx8 WE256K8-XCX 150-300 5 32 pin, DIP (package 302) 40.6mm x 15.25mm  5962-93091  Email
4Mb 512Kx8 WE512K8-XCX 150-300 5 32 pin, DIP (package 300) 42.2mm x 15.25mm
 5962-93091  Email
8Mb 512Kx16 WE512K16-XG4X 140-200 5 68 pin, CQFP (package 501) 39.6mm sq.   Download
1Mb 32Kx32 WE32K32-XH1X 125 & 150 5 66 pin, HIP (package 400) 27.3mm sq.  5962-94614 Download
1Mb 32Kx32 WE32K32-XG2UX 125 & 150 5 68 lead, CQFP (509) 22.36mm sq.  5962-94614 Download

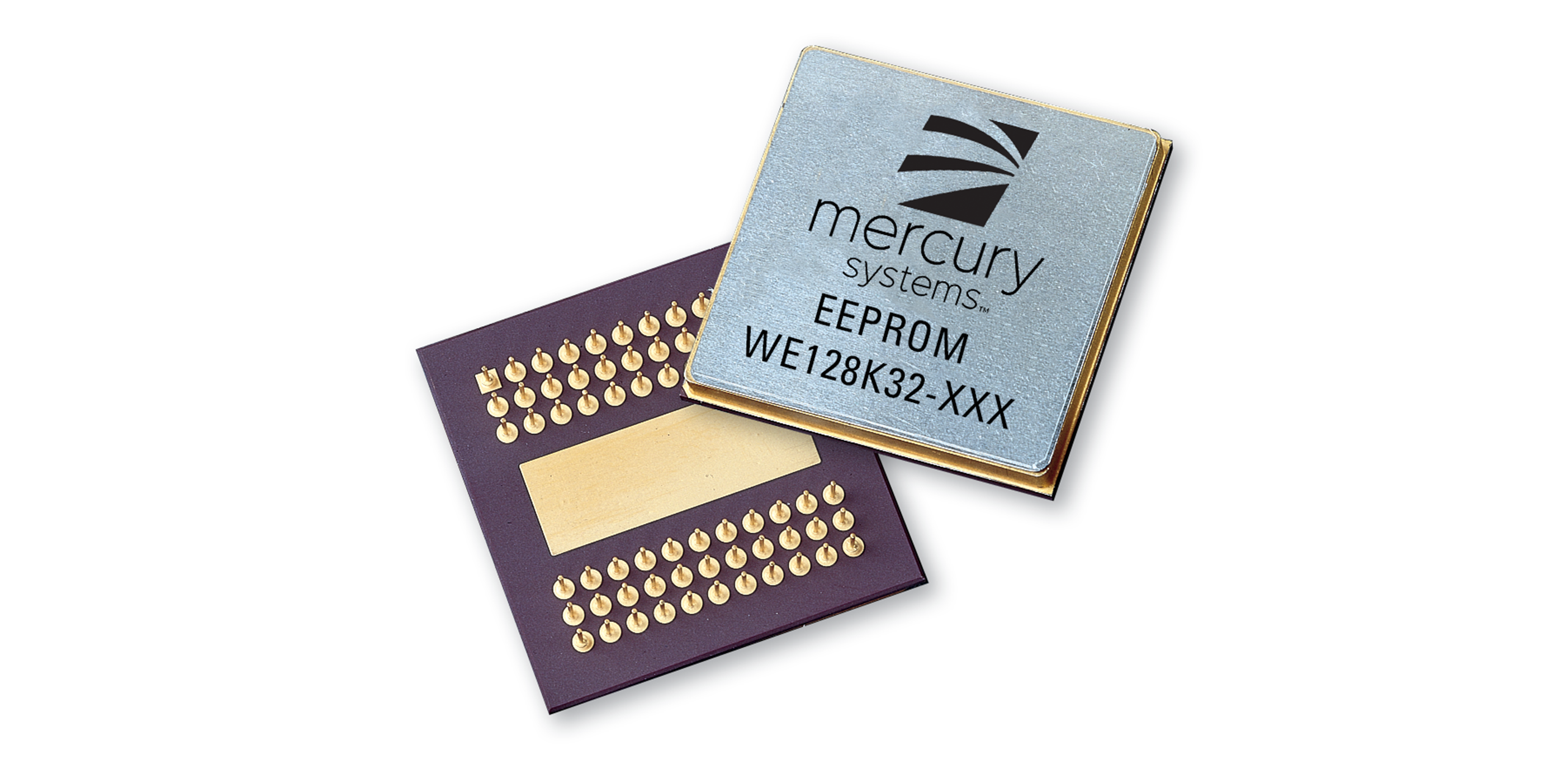

4Mb 128Kx32 WE128K32-XH1X 125 & 300 5 66 pin, HIP (package 400) 27.3mm sq.  5962-94585 Download
4Mb 128Kx32 WE128K32-XG2TX 125 & 300 5 68 lead, CQFP (509) 22.36mm sq.  5962-94585 Download
SRAM/EEPROM
2Mb  128Kx16 WSE128K16-XH1X 35/150, 45/120 5 66 pin, HIP (package 400) 27.3mm sq.   Download
2Mb 128Kx16 WSE128K16-XG2TX 35/150, 45/120 5 68 lead, CQFP (509) 22.36mm sq.   Download
