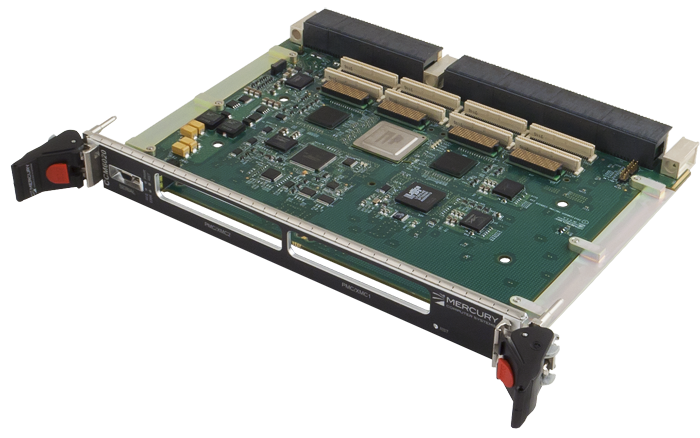

CCM6020 6U OpenVPX I/O Carrier Board

  • slide

Versatile Mezzanine Carrier Board

The EnsembleSeries™ CCM6020 PMC/XMC carrier module expands processing module capabilities by providing high-bandwidth access to additional mezzanine sites. The CCM6020 connects to the processing modules via the OpenVPX expansion plane, allowing data to flow into a system without interrupting traffic on the main data plane. With air-cooled and conduction-cooled variants available, the CCM6020 module can be deployed in a variety of environments with confidence.

DOWNLOAD DATASHEET

BUILT FOR TODAY, READY FOR TOMORROW

By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge.

FEATURES and RESOURCES
  • Designed for use with OpenVPX expansion plane
  • PCI/PCI-X interface at up to 133 MHz on each site
  • x8, x4 and x1 PCIe interfaces
  • Advanced, built in OpenVPX system management for remote monitoring

DEPENDABILITY

Mitigate Deployment Risk with Proven Experience

We employ cutting-edge commercial technologies and unique processes borne from a wealth of in-house expertise, garnered on over 300 programs, to develop and manufacture solutions to meet your application's demanding conditions. 
