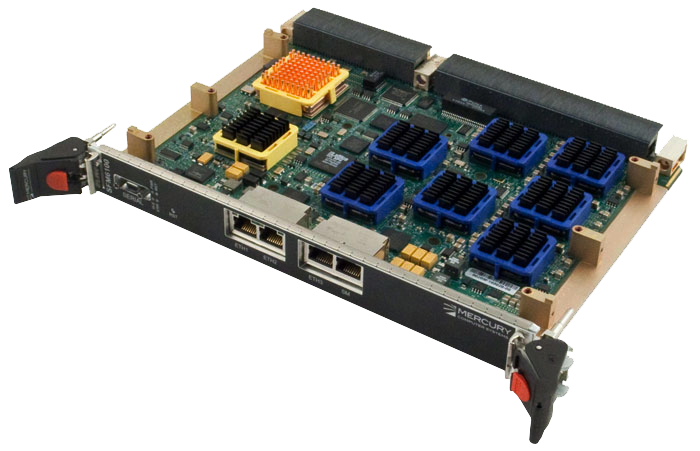

SFM6100 6U OpenVPX Network Switch Board

  • slide

Serial RapidIO and Ethernet Switching with System Management

The EnsembleSeries™ SFM6100 6U OpenVPX module provides full inter-board Serial RapidIO and Gigabit Ethernet connections in support of up to 18 VPX paylod modules in a VPX system. It also implements an inter-switch link for communication between SFM6100 modules or between the SFM6100 and another switch module. Additionally, a variant of the SFM6100 is available that routes twenty 4x Serial RapidIO interfaces to the backplane, supporting smaller, high-bandwidth configurations with only a single switch card.

DOWNLOAD DATASHEET

BUILT FOR TODAY, READY FOR TOMORROW

By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge.

FEATURES and RESOURCES
  • VPX-REDI and VITA 46 compliant
  • 7x Tundra Tsi578™ Serial RapidIO crossbars create dual-star switching hierarchy
  • Full-duplex 4x link on each crossbar's 8x ports
  • 3.125 or 2.5 Gbaud Serial RapidIO bandwidth
  • GbE connectivity; configurable as a Level 2 managed switch

DEPENDABILITY

Mitigate Deployment Risk with Proven Experience

We employ cutting-edge commercial technologies and unique processes borne from a wealth of in-house expertise, garnered on over 300 programs, to develop and manufacture solutions to meet your application's demanding conditions. 
