CIO10-2080 6U OpenVPX Single Board Computer with BuiltSAFE

  • slide

Accelerate and authenticate data-intensive radar and sensor workloads in the air

The first safety-certifiable Intel® Xeon® D-1700 board

Built with cutting-edge Intel Xeon D processors and delivered with DO-254 artifacts certifiable up to DAL-C, Mercury’s rugged CIO10-2080 board streamlines avionics and mission computer system development and deployment.

The CIO10-2080 is delivered with complete hardware and software artifacts built with Mercury’s proven BuiltSAFE™ elements—designed, tested, certified and fielded over three decades on multiple safety-critical platforms—to deliver flawless performance and simplify integration.

View Datasheet

Increase Decision Accuracy

Mercury’s 6U BuiltSAFE boards enable advanced sensors and AI for military and commercial aircraft providing ground stations with real-time information, and giving pilots what they need to make accurate and timely decisions.

Features

Key Features

  • Dual Intel® Xeon® D-1700 SoC 10-core processors that deliver 2-3x more performance than previous generation boards
  • AVX512 and AI neural network inference accelerators
  • Advanced system-on-chip (SOC) with integrated 40Gb/s Ethernet
  • PCIe global memory mapping via PCIe switch to accelerate high bandwidth applications
  • Safety certifiable with complete DO-254 and DO-178C artifacts
  • Rugged, DO-160, MIL-STD-810G
  • 100-120 W power-efficient performance
  • Board support packages for Wind River VxWorks to achieve FAA CAST-32A objectives
  • Build a high performance mission computer with 2 CIO10-2080 boards and 2 FIOVU-2180 FPGA boards
  • Safety certification services and support

In Collaboration with:



Specifications

Processor

  • (2) Intel® Xeon® D-1700 @ 2GHz, 10-core (total 20 cores)
  • Vector processing, AVX-512 acceleration and VNNI

Memory

  • 64 GB of DDR4-2666 ECC (32 GB per processor)
  • 128 GB of on-board SSD (SATA flash) with 4 GB per processor

I/O

  • (4) x8 PCIe3 (Gen3) from PCIe switch (with NTB port support) configurable as 2x16, upstream/downstream
  • (4) 40GB-KR4 Ethernet (2 per processor)
  • (4) 10/100/1000 SGMII Ethernet (2 per processor)
  • (4) UART (3.3V, HSUART) (2 per processor)
  • (4) USB 2.0 (2 per processor)
  • (2) USB 3.0 (with DCI) (1 per processor)

Switch / Bridge

  • ExpressLane™ PEX8764, 64-lane, 16-port, PCIe 3.0 multi-host switch
  • 2 NT ports

BuiltSAFE® Proven Elements

  • DO-254 hardware up to DAL-C
  • DO-178C board management features and processor board support packages up to DAL-D
  • Design and information assurance

Debug

  • Intel® direct connect interface (DCI) allows debugging of Intel® targets via USB 3.0 port
  • UART via backplane can also be used

Development

  • Rear transition module capability

BuiltSAFE® Board Management Features

  • Board management controller (BMC)
  • Built-in-test (BIOS and software)
  • Temperature monitoring
  • Watchdog (using internal processor mechanism)
  • Error reporting (temp/voltage alarm)
  • Reset management
  • Power sequencing
  • Debug and maintenance mode
  • Security trusted platform module (TPM 2.0, secure boot)
  • EEPROM
  • Elapsed time counter

Rugged and Low Power

  • Operating temp: -26°C to 55°C
  • DO-160G
  • MIL-STD-810G CHG1
  • MIL-STD-1686C
  • MIL-STD-202H
  • 100 W – 120 W power consumption

Mechanical

  • 6U OpenVPX, 1.2" slot pitch, ANSI/VITA 65-2019
  • MULTIGIG RT3 (up to 25Gbps)
  • MOD6-PAY-4F1Q2U2T with SLT6-PAY-4F1Q2U2T slot profile
  • VITA 46 / VPX REDI VITA 48.8 / VITA 65-2019, VITA 46.11
  • SGMII, PCIe 3.0, USB 2.0/3.0
  • VITA 48.8 air-flow-through cooling



Board Support Packages (BSP)

Board Support Packages (BSP)

  • UEFI firmware based on Intel Slim Bootloader for faster boot
  • BuiltSAFE® board monitoring package
  • WindRiver VxWorks 7.0
  • Linux*
  • Greenhills*
  • Deos*
  • LynxOS*
  • PikeOS*

*Contact factory for availability

Field-Proven Boards

Maximize performance and scalability

Integrate, tailor and optimize your unique subsystem to accelerate mission-critical applications using Mercury’s highly configurable SBCs with Intel single- and multicore processors and multiple mezzanine sites.

Learn More

Purpose-Built Subsystems

Built For Today, Ready for Tomorrow

By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge.

Learn More

RELATED PRODUCTS

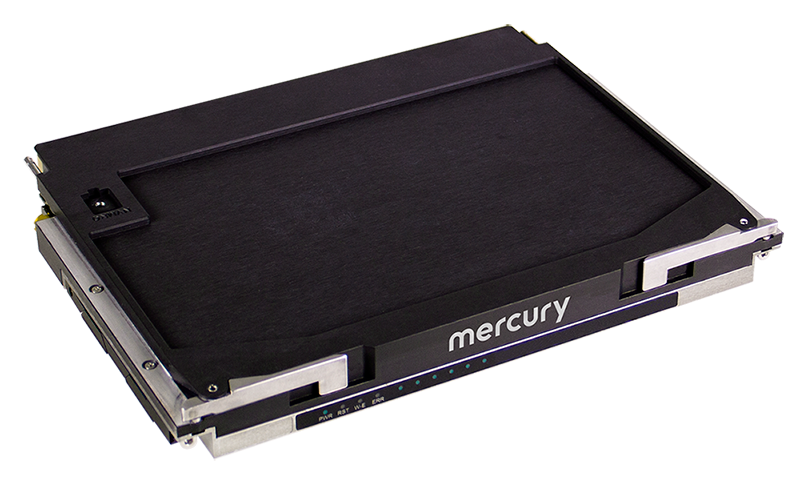

FIOVU-2180 6U OpenVPX FPGA Board with Optical I/O and BuiltSAFE
