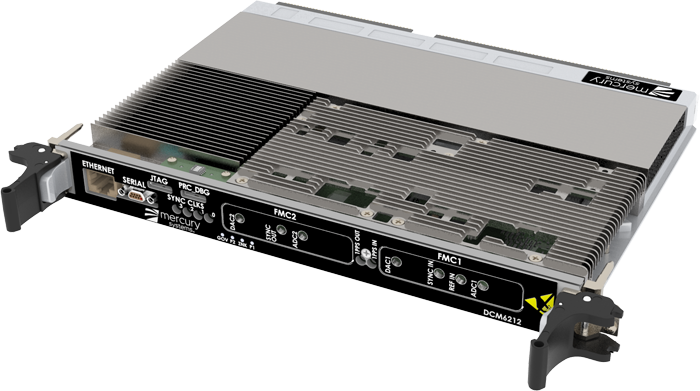

DCM6212 Digital Transceiver

  • slide

Configurable, low-latency, coherent 6U Rx/Tx module

The EnsembleSeries™ DCM6212 is an agile, OpenVPX digital transceiver with integrated BuiltSECURE™ technology. Two low-latency, high-speed ADC and two low-latency, high-speed DAC channels operate at rates up to 6.4 GSPS and provide a flexible, multichannel architecture. Three FPGAs supported by 16GB of DDR4 memory are available for digital signal processing.

Features:

  • Designed for System Security Engineering (SSE)
  • Multi-channel, highly configurable Rx/Tx module
  • Coherent and spectrally pure for EW applications
  • Kintex® UltraScale+ FPGA processing power
  • Low-latency ADC and DAC performance
  • Multi-channel/Multi-card synchronization
  • Built-in IPMI controller

Request Datasheet
