2 to 32 GHz Voltage Variable Attenuator

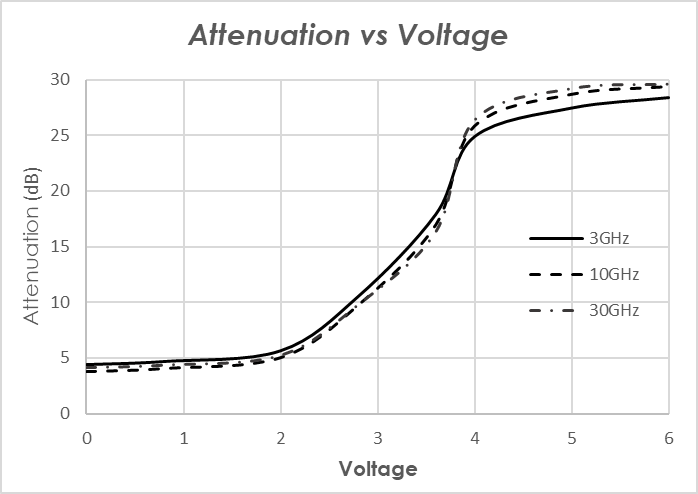

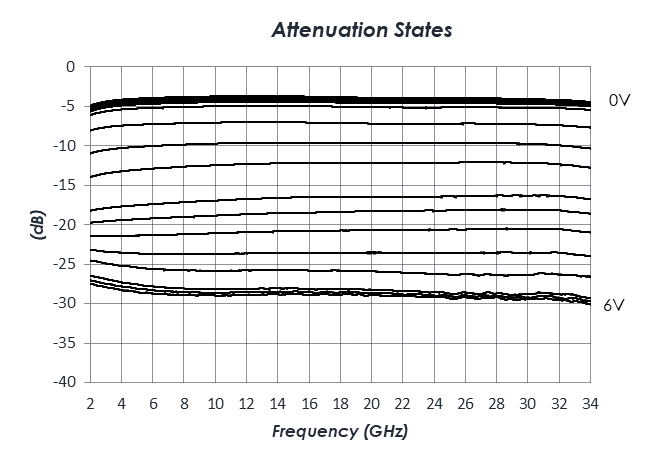

The AM2018 is a analog voltage variable attenuator that covers 2 GHz to 32 GHz, with an attenuation range of 4 to 30 dB. This part provides continuous attenuation with 0 to 6V DC control, and is offered in a standard 3mm QFN 12 lead package.
2 - 32
Frequency (GhZ)
4
Insertion Loss (dB)
30
Atten. (dB)
25
IIP3 (dBm)
Products formerly Atlanta Microwave
Purpose-Built MMIC Components
Enable Portable Platforms
Leverage the latest in solid-state GaAs technology with off-the-shelf, broadband MMIC devices that operate at high frequency to enable portable and low-power platforms.
