Direct RF DRF3182 FPGA 3U OpenVPX Board

Fast Direct RF Wideband Data Capture at the Edge

COTS 3U VPX processing board powered by the Intel® Stratix® 10 AX SoC FPGA

Electronic warfare, radar and ELINT applications demand direct RF solutions to deliver low-latency, fast data processing solutions for critical real-time decision-making. The DRF3182 offers heterogenous FPGA processing with explosive A/D & D/A speeds of 51.2 GSPS, Ku band frequency coverage from 2-18 GHz and six 100 GigE interfaces with an aggregate throughput of 75 GB/sec. Plus, COTS technology reduces time to market and fewer modules decreases system costs.

ASK A QUESTION


High Data Bandwidth for High-Performance Applications

51.2 GSPS
ADCs and DACs
2-18 GHz
Signal Bandwidth
18 GHz
IBW
600 Gbps
Backplane ingress/egress bandwidth

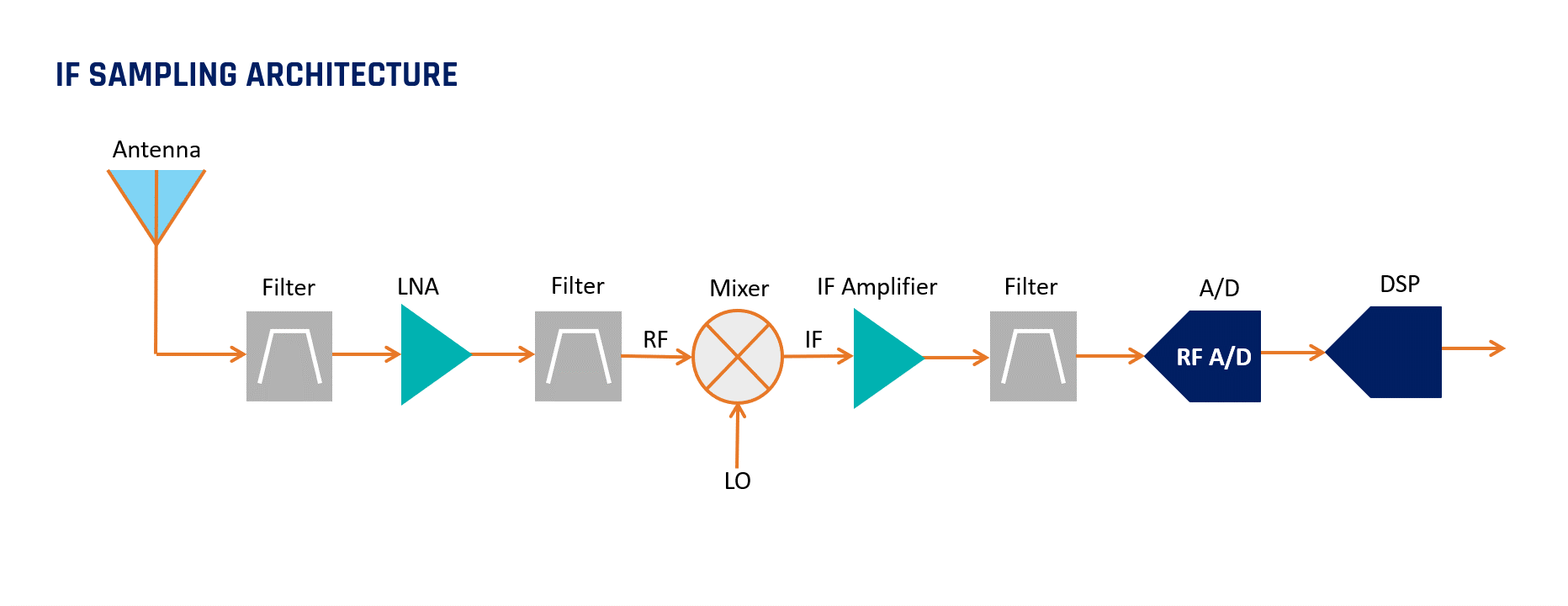

Direct RF vs. IF: Receive-Application Architecture

Features
  • Flexible compute, high-speed
    connectivity and frequency agility for
    radar, EW and test and measurement
    applications
  • Integrated, advanced data converters
  • COTS 3U VPX, 4Rx/4Tx, 51.2 GSPS Direct RF module with Intel® Stratix® 10 AX SoC FPGA
  • Fast sample rate providing high
    instantaneous bandwidths
  • Heterogeneous integration
Specifications

3U OpenVPX Packaging

  • OpenVPX (VITA 65) encompasses:
    VITA 46.0, 46.3, 46.4, 46.6, 46.11 and
    VITA 48.1, 48.2 (REDI)

Data Planes

  • PCIe Gen 3 support and/or VITA 49.2

Backplane Interface

  • SLT3-SWH-8F-14.14.2 slot profile

Processor

  • Intel® Stratix® 10 AX-Series SoC FPGA
  • 2753 logic elements
  • Quad core ARM processor
  • 244 MB of on-chip memory

Memory

  • 4 GB DDR4 Total: 2 GB for FPGA fabric,
    2 GB for HPS

DOWNLOAD DATASHEET

​​​​​​Data Converters

  • ADC: Four 10-bit ADC channels up to
    51.2 GSPS
  • DAC: Four 10-bit ADC channels up to
    51.2 GSPS
  • Programmable tunable digital up/down
    Converters (two per port)
  • High instantaneous bandwidth allows large portions of spectrum to be
    directly digitized

VITA 46.11 IPMI controller

  • Sensor interface to monitor
    temperature, voltage
  • Power sequencing
  • Secure JTAG
  • Manufactured in an AS9100D facility
