Model 5585 and Model 5586 3U OpenVPX FPGA Boards


HBM board solutions optimized for SWaP


The AMD Virtex® UltraScale+™ on-chip high-bandwidth memory (HBM), coupled with the FPGA’s logic and DSP density, enables the Models 5585 and 5586 to be single-slot 3U VPX processing powerhouses. All with a SOSA aligned 3U profile for proven, rapid technology insertion and risk reduction.

The Model 5585 features synchronous acquisition circuitry to support a wide range of bandwidths for phase-array, EW and SIGINT applications. The Model 5586, without the data converters, serves as an ideal processor for distributed FPGA processing.

Download Datasheets

Expedite Development Time

The available Navigator® Design Suite includes a board support package (BSP) and a FPGA design kit (FDK) providing complete operational control of the hardware and easy configuration of new FPGA functions.


Learn More

High-Density Solutions

Increase in DSP
Increase in memory bandwidth
Increase in system logic cells

High-Bandwidth Memory, FPGA logic and DSP density make this board a single-slot 3U VPX processing powerhouse

  • Exceptional dynamic range and analog signal integrity
  • AMD Virtex UltraScale+ HBM FPGAs
  • Eight 250 MHz 16-bit A/Ds
  • 10 GigE interface
  • 40 GigE interface
  • Dual 100 GigE UDP interface
  • Optional VITA 67.3C optical interface for gigabit serial communication
  • SOSA aligned and compatible with several VITA standards including: VITA 46, VITA 48.11, VITA 67.3C and VITA 65 (OpenVPX™ System Specification)
  • Navigator Design Suite BSP and FDK for custom IP development
  • Rugged to support a range of applications, see FAQ for more details

Model 5585 & Model 5586:

ARM Processor

  • Type: 64-bit Cortex-A53 core
  • Speed: 800 MHz
  • Memory: 4 Gb DDR3L SDRAM
  • Ethernet: 1 GigE on VPX-P1

Field Programmable Gate Array

  • Type: AMD Virtex UltraScale+ HBM
  • System Logic Cells: 2,852k
  • DSP Slices: 9,024


  • GPIO
  • 10, 40, 100 GigE
  • PCI-Express


Model 5585 only:

Analog Inputs

  • Quantity: 8
  • Full Scale Input: +4 dBm into 50 ohms
  • 3 dB Passband: 300 MHz to 700 MHz

A/D Converters

  • Sampling Rate: 10 MHz to 250 MHz
  • Resolution: 16 bits

Digital Downconverters (FPGA IP)

  • Quantity: Eight channels
  • Decimation Range: 2x to 32,768x in

Clock Synthesizer

  • Clock Source: 10 to 810 MHz
Product FPGA A/Ds DDC Channels Interfaces Datasheet
Model 5585 Virtex UltraScale+ HBM 8, 250MHz 8 10, 40, 100 GigE


Model 5586 Virtex UltraScale+ HBM N/A N/A 10, 40, 100 GigE


Proven Ease of Integration

Save Development Time and Costs

Combine OpenVPX chassis, power supply and accessories with 3U and 6U boards to save subsystem testing, development and certification time and costs.

Learn More


SCFE6931 6U OpenVPX FPGA Board with Optical I/O

SCFE6931 6U OpenVPX FPGA Board with Optical I/O

2 Versalâ„¢ ACAPs, 48GB DDR4




High spectral density wideband microwave transceiver


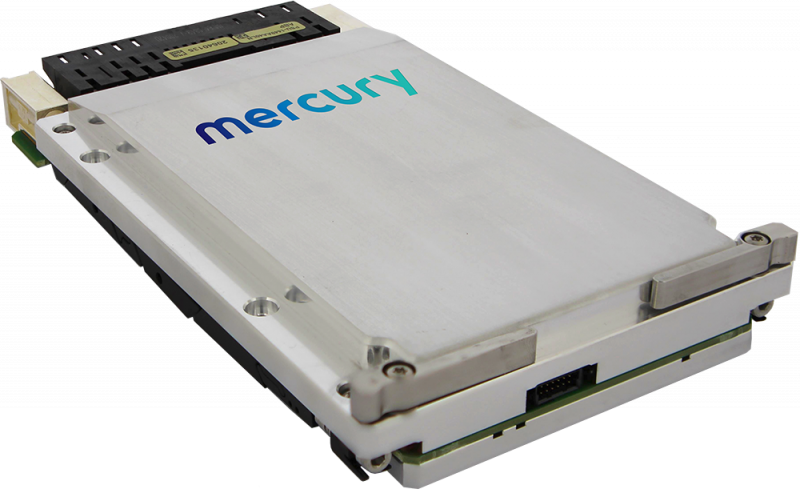

PSU-1449 3U OpenVPX Storage Module with BuiltSAFE
