JDAR NSA Type-1 Data-at-Rest Encryption Module

Protect data-at-rest up to classified level

Compact NSA Type-1 Encryption

A small, 0.9 lb., NSA certified Type-1 data-at-rest encryption module that requires less than 7 W of power, JDAR protects secret and below data and simplifies integration. It's ability to withstand extreme temperatures and 30,000 hours MTBF allows JDAR to be deployed on aircraft and unmanned platforms and in inhospitable environments.

Easy to Integrate and Deploy

JDAR can be easily integrated into rackmount, embedded, or tailor-made systems using common open standard interfaces and VNX/3U VPX connectors. Fast <12 sec cold boot improves system readiness while multiple zeroization capabilities enable classified data to be left unattended without risk of compromise.

ASK A QUESTION


Compact and Fast NSA Type-1 Encryption

6 Gbps
high-speed encryption
7 W
power consumption
<12 sec
cold start
0.9 lb.
small form factor
Features
  • NSA Type-1 certified for SAB and a tamper-resistant design
  • 4-lane SATA III High Speed Encryption
  • Scalable architecture and interfaces for VNX/3U VPX
  • 0.9 lb., 7 W power consumption
  • -40°C to +85°C operating temperature range with 30,000 hrs. MTBF
  • Startup <12 sec
  • MIL-STD 461F, MIL-STD 810, DO-160
  • Multiple zeroization capabilities
  • Easy to configure and encrypt with legacy and modern fill devices and upgrade options to support Key Management Infrastructure (KMI)
  • Intuitive Windows-based software interface or GUI
  • SMART (Self-Monitoring Analysis and Reporting Technology) SSD support
  • Support to meet data encryption requirements
  • Embedded video recorder or data transfer system option to speed deployment

Specifications

Encryption

  • Type-1 Secret and below; other
    encryption options available for
    system high operation
  • Status discretes: zeroize, alarm,
    tamper and state
  • Suite B encryption algorithms

Zeroization

  • Multiple zeroization paths and forms of zeroization
  • Unattended/self-attended write-only
    operation

Data Exchange

  • 6 Gbps SATA bulk data input (1) and
    output (4) ports
  • SMART (Self Monitoring Analysis and
    Reporting Technology) SSD support

Diagnostics and Management

  • Built-in-Test (BIT)
  • Easy-to-use Windows software interface (GUI)



DOWNLOAD DATASHEET

Subsystem Integration Features

  • Low-power VNX/3U VPX interface
  • Customizable design for any platform

Compatibility

  • Implements DS-101 over RS-485
  • Compatible with EKMS 308-compliant fill devices

Mechanical and Environmental

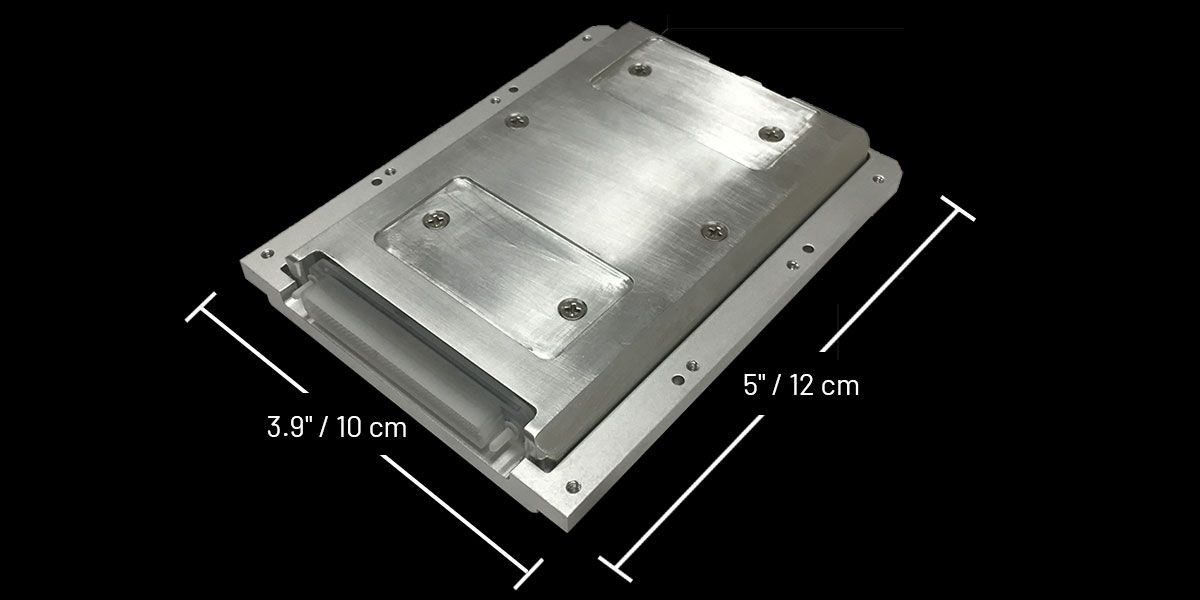

  • Dimensions: 5.04 x 3.94 x 0.63 inches (12 x 10 x 16.6 mm)
  • Weight: 0.9 lb (0.4 kg)
  • 7 W max power consumption
  • MIL-STD 461F, MIL-STD 810, DO-160
  • Extended operational temperature: -400C to +850C continuous
  • 30,000 hrs. MTBF
  • Cold Start <12sec

Compliance

  • NSA IAD Management Directive 110
    compliant
  • SATA III compliant
Applications

Platforms/Applications

  • Avionics
  • Unmanned platforms
  • Unattended sensors
  • Surveillance
  • Communication
