Model 2757 100 GigE rugged rackmount recorder

Capture your critical signal data

The Model 2757 COTS high-capacity data recorder speeds through the spectrum with built-in optical connections.

This turnkey system built for recording 100 Gigabit Ethernet UDP streams from Mercury's Quartz® RFSoC products delivers up to 122 TB of removable solid-state storage and a recording data rate of 12.5 GB/s providing hours of multichannel wideband signal recording.

ASK A QUESTION


High-Speed Recording for High-Performance Applications

12.5 GB/s
Real-time Recording Rate
122 TB
Solid State Storage
100 GigE
Optical Connection

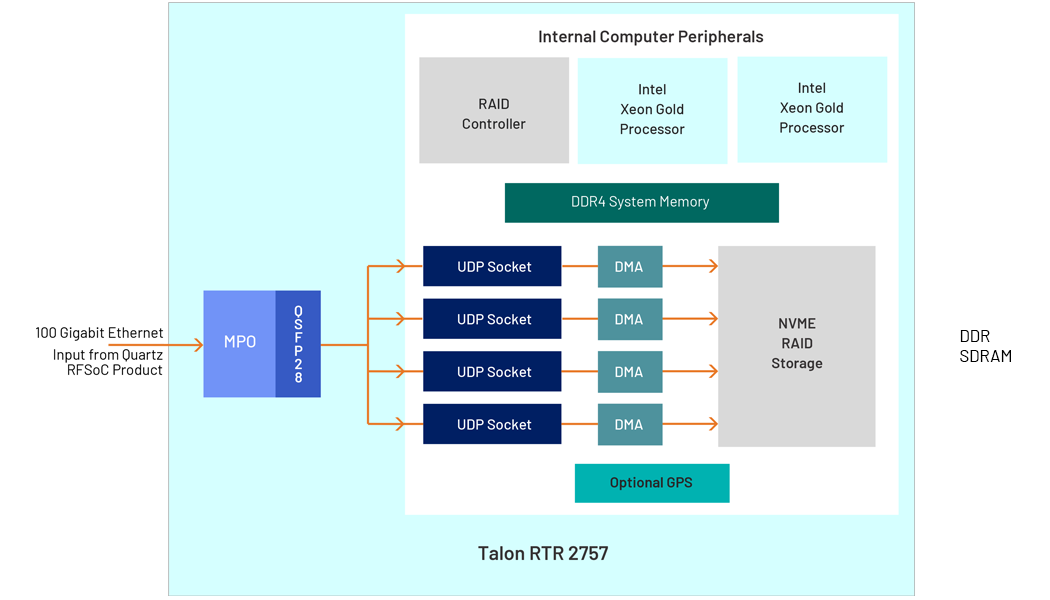

Block Diagram100 GigE Systems - 4 A/D Channels100 GigE Systems - 8 A/D ChannelsSystemFlow APISystemFlow GUISystemFlow Simulator


Download Datasheet


Download Now


Download Now


Download Now


Download Now


Download Now

FeaturesSpecificationsResources
Features
  • Designed for data capture from Mercury Quartz® RFSoC products' 100 Gigabit Ethernet ports
  • Single QSFP28 port with MPO transceiver
  • Real-time record rates up to 12.5 GB/s (100 Gigabits/s)
  • Front-panel removable solid-state storage up to 122 TB
  • Dual Intel Xeon® Gold processors with up to 4 TB of DDR4 SDRAM
  • 4U 19-inch industrial grade server chassis
  • Supports up to four independent UDP streams
  • SystemFlow software GUI with Signal Viewer analysis tool
  • C-callable API for integration

REQUEST A QUOTE



Specifications

PC Workstation

  • Operating System: Windows®
  • Processor: Intel Xeon Gold processor
  • SDRAM: Up to 4 TB of DDR4 SDRAM

RAID

  • Drive Type: Front-panel removable MVMe U.2 solid-state drives (SSDs)
  • Storage: Up to 122 TB
  • Supported RAID Levels: (standard) 0
    • Option -285: RAID 5

Ethernet Interface

  • Quantity: 1 port
  • Connector Type: QSFP28 port with MPO transceiver

Physical and Environmental

  • Dimensions: 16.93" W x 22.19" D x 6.93" H; (430 x 563.7 x 176 mm)
  • Weight: 51 lb approx.
  • Operating Temp: 0° to +50°C
  • Storage Temp: –40° to +85°C
  • Relative Humidity: 5 to 95%, non-condensing
  • Operating Shock: 15 g max. (11 msec, half sine wave)
  • Operating Vibration: 10 to 20 Hz: 0.02 inch peak, 20 to 500 Hz: 1.4 g peak acceleration
  • Power Requirements: 100 to 240 VAC, 50 to 60 Hz, 500 W max.

DOWNLOAD DATASHEET
